Soundsmith Hyperion MkII Low Output Phono Cartridge
Zoom  Zoom

Soundsmith Hyperion MkII Low Output Phono Cartridge

£6,215.99
£5,179.99 Exc. VAT |


|
Cartridge Version:

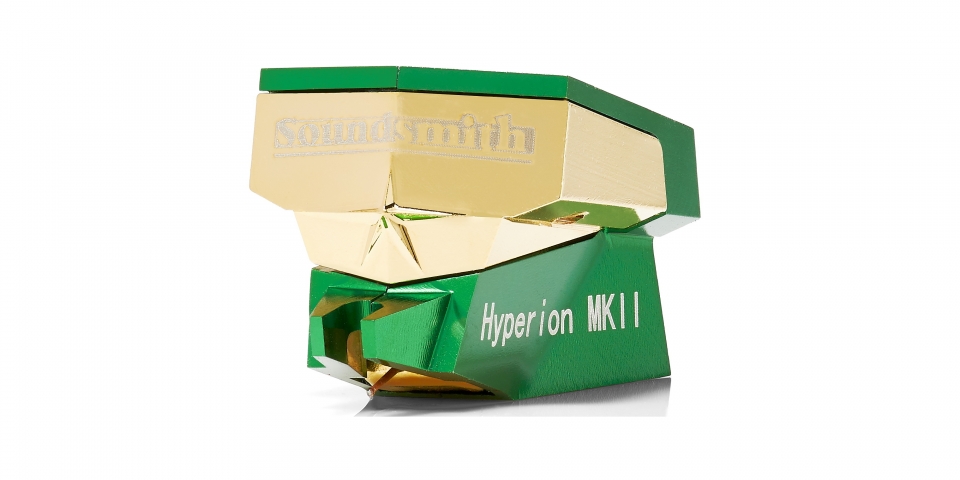

Soundsmith Hyperion MkII Phono Cartridge

The HYPERION is the cartridge of choice for the most esteemed audio equipment manufacturers. Why? Because when they exhibit their gear at Hi-Fi shows, they want their turntable, amplifier or speaker systems to sound the very best that they can! Peter Ledermann‘s radical design utilizes an actual “cactus spine” for the cantilever. The naturally tapered shape, stacked columnar fibers and desiccated resin damping fit the exact parameters of the perfect cantilever: Low mass, extreme rigidity, internal damping, and tremendous strength. Each one hand crafted by Peter Ledermann - Made in  the USA.

The Hyperion features an industry first: A 10 year free retipping service for stylus wear to the original owner.

"In my opinion, the new Hyperion is without question the finest magnetic cartridge made today. Looking forward to the next few weeks of final break in." https://www.sound-smith.com/testimonials/hyperion

A new review of the Hyperion (Norway): http://www.audiophile.no/nb-no/item/2139-soundsmith-hyperion

A new review of the Hyperion **via Google translate: http://www.audiophile.no/nb-no/item/2139-soundsmith-hyperion

Analogplanet.com: Sound-Smith Hyperion Cartridge Produced Love At First Listen click for review

Specifications

Cartridge Type

Fixed Coil

Stylus Type

Contact Line O.C. Contact Line

Output

Low

Output Voltage

0.4 mV


Type: • Fixed Coil / Moving Iron
Mount: • Standard ½”
Stylus: • Contact Line, Nude, 0.10 mm square
Radius of Curvature: • Contact Line or Optimized Contact Line
Cantilever: • Hand formed/treated selected Cactus "Spine"
Recommended Tracking Force: • 1.8 - 2.2 g
Effective Tip Mass: • 0.30 mg
Compliance: • 12 μm/mN vertical, 7 μm/mN horizontal
• 10 μm/mN (LT version)
Frequence Response: • 20 - 20,000 Hz ± 1.0 dB
Channel Separation @ 1000 Hz: • > 36 dB
• > 34 dB (LT version)
• N/A (Mono version)
Channel Separation @ 50 - 15,000 Hz: • > 25 dB
• N/A (Mono version)
Channel Difference: • < 0.5 dB
• < 1.0 dB (Mono version)
Output Voltage @ 5cm/sec: • > 0.40 mV
DC Resistance (DCR): • 10Ω
Coil Inductance per channel: • 2.75 mH
Suggested Preamp Gain: • 58 - 64 dB
Cartridge Weight: • 12.2 g (ES series)
Recommended Load Resistance: • ≥ 470Ω
Recommended Load Capacitance: • n/a
