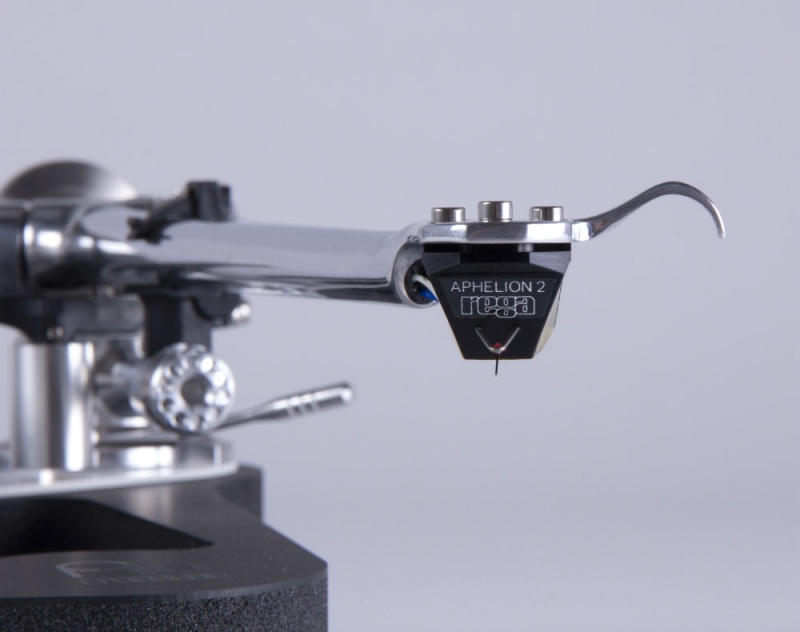

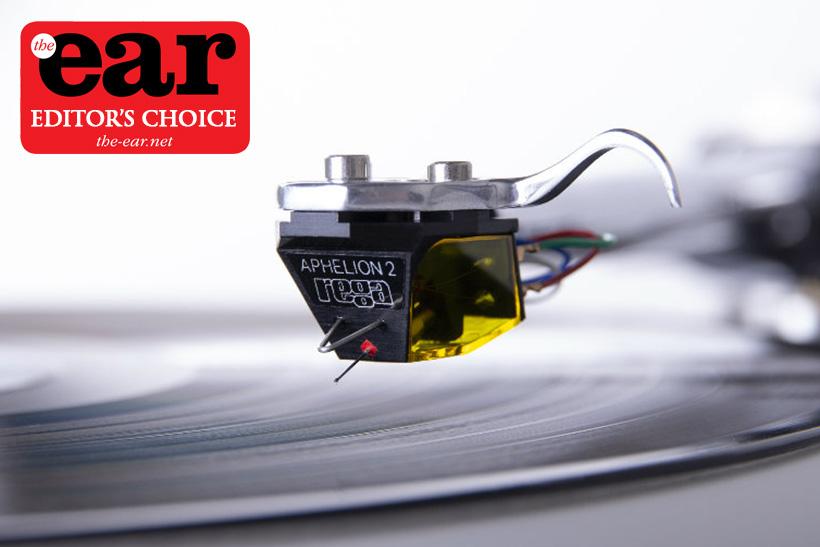

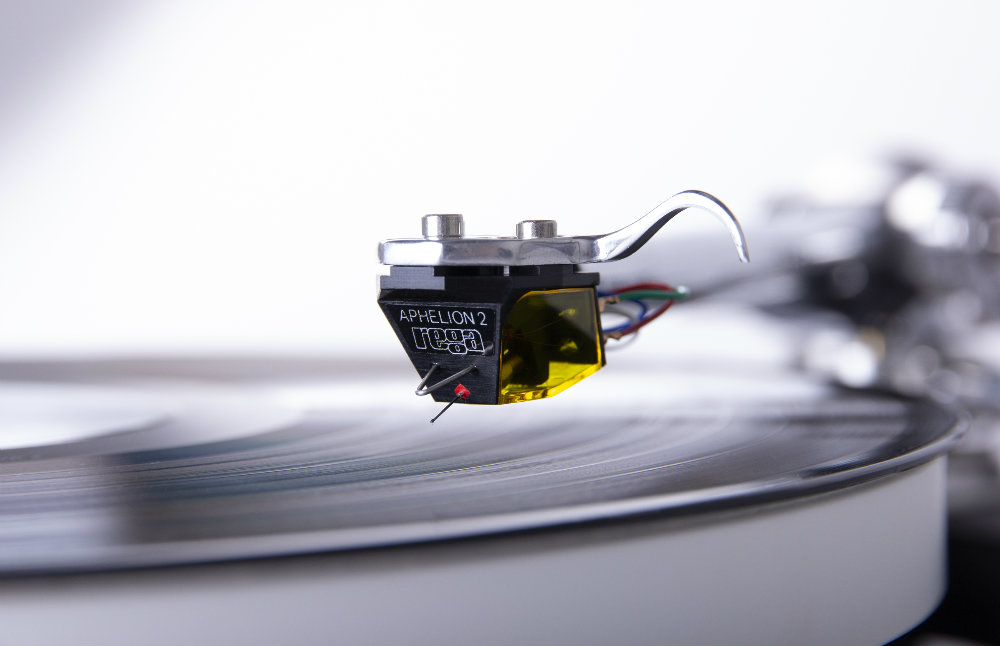

Rega Aphelion 2 - Reference level moving coil cartridge
The ultimate in micro engineering, precision, innovation and craftsmanship.
Aphelion 2 is the 4th generation of Rega's unique handmade moving coil cartridges.Taking the technology developed from the original Aphelion and the latest Apheta 3 to the next level, our engineers have now fine-tuned every aspect of the original designs.
Aphelion 2 features a boron rod cantilever now fitted with our most advanced "fine line type" nude diamond profile, combined with a super high-powered neodymium magnet and a coil meticulously hand wound on an iron micro cross. The weight reduction of the generator allows us greater freedom to track the vinyl groove ensuring even more detail is extracted from the vinyl.The Aphelion 2 is housed within a single piece, aluminium black anodised body and protected by a CAD designed, clear rigid cover to protect the internal fine wires, making handling whilst fitting, safe and risk free.
The Aphelion 2 is the perfect partner for the multi-award winning Planar 10 turntable and can be supplied factory fitted as a discounted package
Specifications :
Tracking Pressure 1.9 g
Input load impedance 100 ohms
Output impedance 10 ohms
Nominal output voltage 350μV
Channel Balance : ≥ 10μV
Separation : ≥ -29dB
Mass 6g
Key Features :
Graded zero tolerance black anodised aluminium body
Boron rod cantilever
'Fine Line Type' profile, nude diamond stylus
Iron micro cross & coil assembly making one of the worlds smallest MC generators.
Worlds most powerful minaturised neodymium magnet.
High specification fine wire 0.018mm
Load settings for adjustable MC stages
Impedance -100ohm
Capacitance - 1000pF
Gain setting - High ('On' position for Rega phono stages )
MC dip switch settings for all adjustable Rega MC cartridge models.
Aria MC dip switch settings for all Rega MC cartridge models
