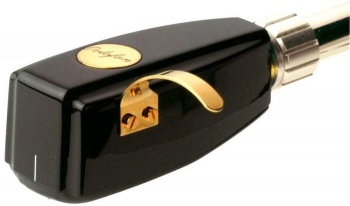

Ortofon SPU Royal G MKII Moving Coil Cartridge
Please note this cartridge is a special order item. Please contact us for estimated delivery times.
The SPU Royal GM model was released in 1998, together with the Jubilee cartridge to celebrate the Ortofon 80 year anniversary.
The SPU Royal GM MKII provides a playback experience that embodies the essence of analog, with generous refinements which bring the legendary SPU cartridges into the realm of unrivaled perfection.
The addition of Ortofon’s unique Replicant 100 stylus and reduced tip mass ensures open and detailed sound reproduction for a purely exquisite listening experience.
Electrum coils, consisting of a gold and silver alloy, provides uncolored and precise transmission of armature movements while the slightly modified damping system makes it possible to reduce VTF and achieves a higher level of linearity.
High purity 6-nines copper wiring ensures impeccable signal transmission and preservation of the finest of microdynamic detail.
|Output Voltage At 1000 Hz, 5cm/sec: ||200 µV |
|Channel Balance At 1 kHz: ||< 1 dB |
|Channel Separation At 1 kHz: ||> 25 dB |
|Channel Separation At 15 kHz: ||> 20 dB |
|Frequency Range (At - 3dB): ||20 - 60.000 Hz |
|Frequency Response: ||20 - 20.000 Hz + 1,5 / - 0 dB |
|Recommended Tracking Ability At 315Hz: ||70 µm |
|Compliance, Dynamic, Lateral: ||8 µm/mN |
|Stylus Type: ||Nude Ortofon Replicant 100 |
|Stylus Tip Radius: ||r/R 5/100 µm |
|Tracking Force Range: ||2.5-3.5 g (25-35 mN) |
|Recommended Tracking Force: ||3.0 g (30 mN) |
|Tracking Angle: ||20° |
|Internal Impedance, DC Resistance: ||6 Ohm |
|Recommended Load Impedance: ||> 100 Ohm |
|Cartridge Body Material: ||Grinded Wood |
|Coilwire Material: ||Goldplated Silver |
|Cartridge Colour: ||Shiny Black |
|Cartridge Weight: ||30 g |
