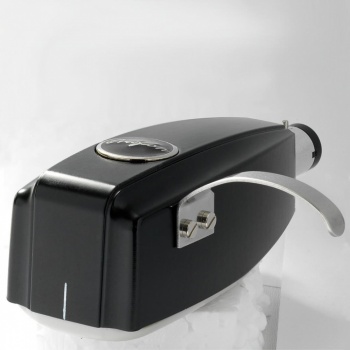

Ortofon SPU Classic G MkII Moving Coil Cartridge
Zoom  Zoom

Ortofon SPU Classic G MkII Moving Coil Cartridge

£825.00
£687.50 Exc. VAT |


|

Please note this cartridge is a special order item.  Please contact us for estimated delivery times.

Ortofon SPU Classic G MkII Moving Coil Cartridge

Please note this cartridge is a special order item.  Please contact us for estimated delivery times.

Dynamic and powerful sound reproduction
Perfect for the playback of both early and modern and contemporary stereo recordings
Nude Spherical stylus profile



The SPU Classic G MKII, known for its dynamic and powerful sound reproduction, is a Moving Coil (MC) cartridge with an 18µm spherical stylus profile.

The SPU Classic series embodies the essence of the original Moving Coils and are a perfect solution for the playback of both early and modern and contemporary stereo recordings.

Key Features:
Dynamic and powerful sound reproduction
Perfect for the playback of both early and modern and contemporary stereo recordings
Remarkable level of sonic accuracy
High Purity Copper armature windings and terminal leads
Grinded wood and resin composite housing
Nude Spherical stylus profile

Technical Data
Output Voltage at 1000 Hz, 5cm/sec.: 0.2mV
Channel Balance at 1 kHz: < 1 dB
Channel Separation at 1 kHz: > 20 dB
Channel Separation at 15 kHz: > 10 dB
Frequency Response: 20Hz - 20kHz (±3dB)
Recommended Tracking Ability at 315Hz: > 60 µm
Compliance, Dynamic, Lateral: 8 µm/mN
Stylus Type: Nude Spherical
Stylus Tip Radius: R 18 µm
Tracking Force Range: 3.0 - 5.0g (30 - 50mN)
Recommended Tracking Force: 4.0g (40mN)
Tracking Angle: 20°
Internal Impedance, DC Resistance:
Recommended Load Impedance: > 10Ω
Cartridge Body Material: Ground Wood & Resin Composite
Coilwire Material: High Purity Copper (OFC)
Cartridge Colour: Shiny Black
Cartridge Weight: 30g

Be the first to Write a Review for this item!
