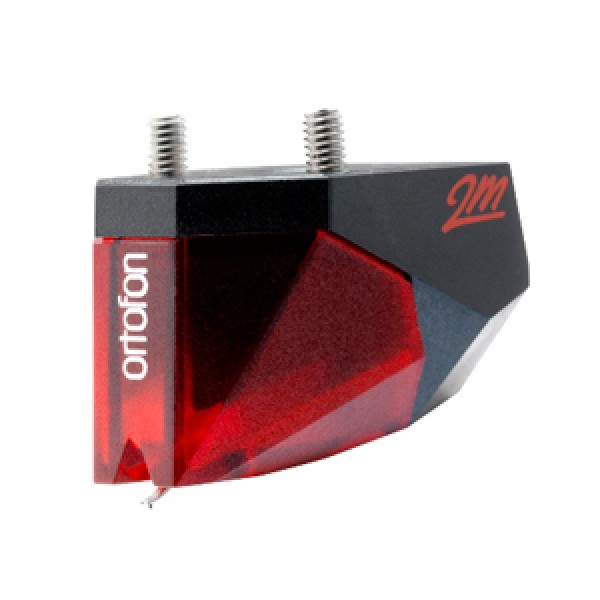

Ortofon 2M Red Moving Magnet MM Verso Mount Cartridge
Zoom  Zoom

Ortofon 2M Red Moving Magnet MM Verso Mount Cartridge

£95.83 Exc. VAT |



Ortofon 2M Red Moving Magnet Verso Mount Cartridge


The 2M series of cartridges are now also available in a special version, suited for bottom-mount tonearms. The 2M Verso are available to special order in the UK.

The 2M Red and 2M Blue are designed for precise and accurate retrieval of the information in the record groove. Indeed, it is Ortofon's lasting philosophy to only ever play the recorded sound, without colouration.

To obtain a flat frequency response, as with a Moving Coil cartridge, Ortofon are using split pole pins in the 2M design, to reduce the eddy current. The split pole pins are an Ortofon invention which was originally presented in the 500 and Super OM series, to great effect.

The 2M Red and 2M Blue both use the same engine with split pole pins. With this improved engine Ortofon have been able to increase the output to an impressive 5.5 mV.


Output Voltage (at 1kHz, 5cm/sec):


Channel Balance at 1kHz:


Channel Separation at 1kHz:


Channel Separation at 15kHz:


Frequency Range (at -3dB):

20 Hz - 22 kHz

Frequency Response 20Hz - 20kHz:

+3 / -1dB

Tracking Ability at 315Hz:

Typically 70μm

Compliance, Dynamic, Lateral:

20μm / mN

Stylus Type:


Stylus Tip Radius r / R:

8 / 18μm

Tracking Force Range:

1.6 - 2.0g (16 - 20mN)

Recommended Tracking Force:

1.8g (18mN)

Tracking Angle:


Internal Impedance / DC Resistance:


Internal Inductance:


Recommended Load Resistance:


Recommended Load Capacitance:

150 - 300pF

Cartridge Colour Body / Stylus:

Black / Red

Cartridge Weight:


Replacement Stylus Unit:

Stylus 2M Red
