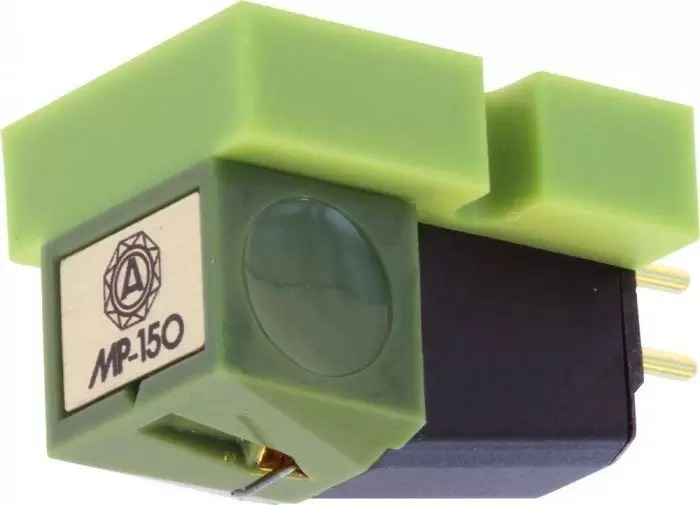

Nagaoka MP150 Phono Cartridge
Ambitious model using a tapered cantilever and an elliptical tip. Firm, tight and muscular sound
Superb traceability
Low-mass tapered cantilever for great fidelity in the full dynamic range
Dynamic tone
Unexcelled clarity
Nagaoka MP-150 Features:
Superfine polished elliptical diamond stylus tip
Powerful samarium cobalt magnet
Lightweight hardening taper aluminum alloy cantilever
Carbon-fiber-reinforced plastic pole shoe
Anti-ferro-magnetic permalloy shield casing
Nagaoka only make MM cartridges, and is fully focused on making the best. This new range achieves not only the trademark smooth sound of MM cartriges, but also the transparency and accuracy in tonality traditionally associated with MC cartridges. MM cartridges have come a long way! All Nagaoka cartridges features a replaceable stylus to protect your investment.
Complete instructions and mounting hardware are included.
Specifications:
Model: MP-150 (with stylus)
Type: Magnetodynamic Permalloy
Output Voltage: 4.5mV (5cm/sec)
Frequency Characteristic: 20 - 20,000Hz
Channel Separation: 24dB (1Khz)
Channel Balance: 1.5db or less
Load Resistance: 47kohm
Cantilever: Aluminum Alloy
Stylus Tip: 0.4x0.7mil Elliptical Diamond
Elliptical Stylus Pressure: 1.5 - 2.0g (1.7g)
Cartridge Weight: 6.5g
