DS Audio DS-E1 Optical Cartridge and Phono Amplifier
Zoom  Zoom
DS Audio DS-E1 Optical Cartridge and Phono AmplifierDS Audio DS-E1 Optical Cartridge and Phono AmplifierDS Audio DS-E1 Optical Cartridge and Phono Amplifier
DS Audio DS-E1 Optical Cartridge and Phono AmplifierDS Audio DS-E1 Optical Cartridge and Phono AmplifierDS Audio DS-E1 Optical Cartridge and Phono Amplifier

DS Audio DS-E1 Optical Cartridge and Phono Amplifier

£2,400.00
£2,000.00 Exc. VAT |


|

DS Audio DS-E1 Optical Cartridge and Phono Amplifier

  • Price includes the DS Audio phono amplifier as a package.

Manufactured by hand in DS Audio’s own premises in Sagamihara City, Japan, the cartridge body is machined from aluminium, while the accompanying DS-E1 equaliser/phonostage is compact and lightweight – around one third of the size of the DS-002 equaliser.

An optical cartridge uses a beam of light to read stylus/cantilever movement allowing the cartridge to be light and agile, while also eliminating magnetic frictional force caused by magnets and coils.

Also, in an optical cartridge the output signal depends on the distance that the stylus moves, so there are no disparities between high and low frequencies. Therefore no equalization is required (other than RIAA curve correction).

DS Audio cartridges are fully compatible with any of the company’s accompanying phono stages/equalisers, allowing you to mix and match.

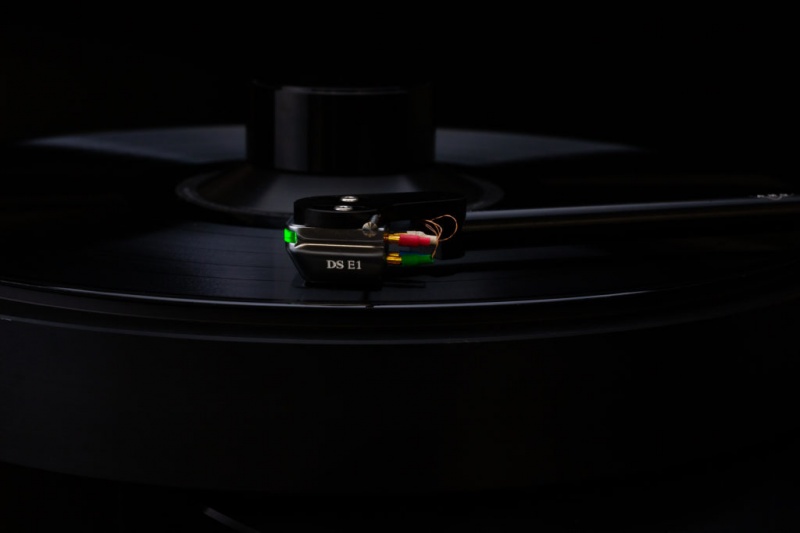

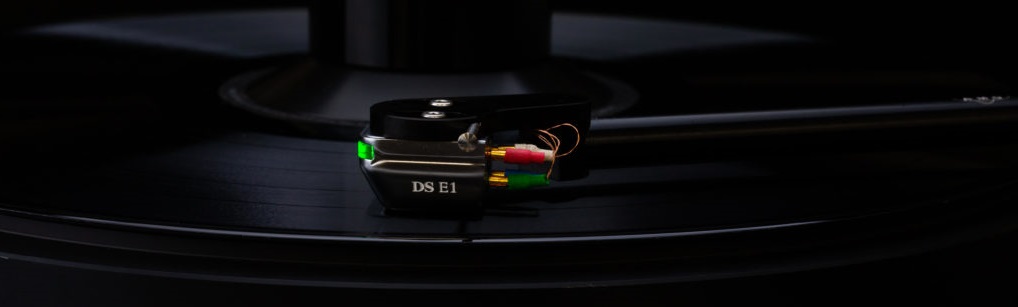

DS-E1 Optical Cartridge

  • Signal output Photo-electric Conversion
  • Channel separation 24db more(1KHz)
  • Weight 8.1g
  • Output signal level 50mV more
  • Canti-lever Alminum
  • Body material Alminum
  • Needle pressure 1.6g~1.8g(1.7g is recommended)
  • Stylus Elliptical Needle

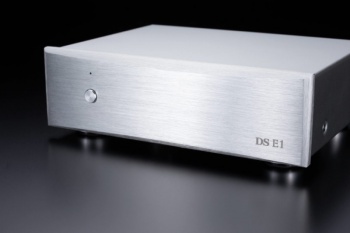

DS-E1 Equalizer for Optical Cartridge

  • Output voltage 500mV(1kHz)
  • Output impedance 120Ω
  • Pre amp input impedance More than 10kΩ
  • Input terminal RCA terminal
  • Output terminal RCA terminal
  •  (Switch two outputs with switch)
  • Size W20cm×H7cm×D16cm
  • Weight 1.4kg
