Benz Micro Ebony Cartridge

Available in low 0.26mV  medium 0.8mV or high output 2.5mV

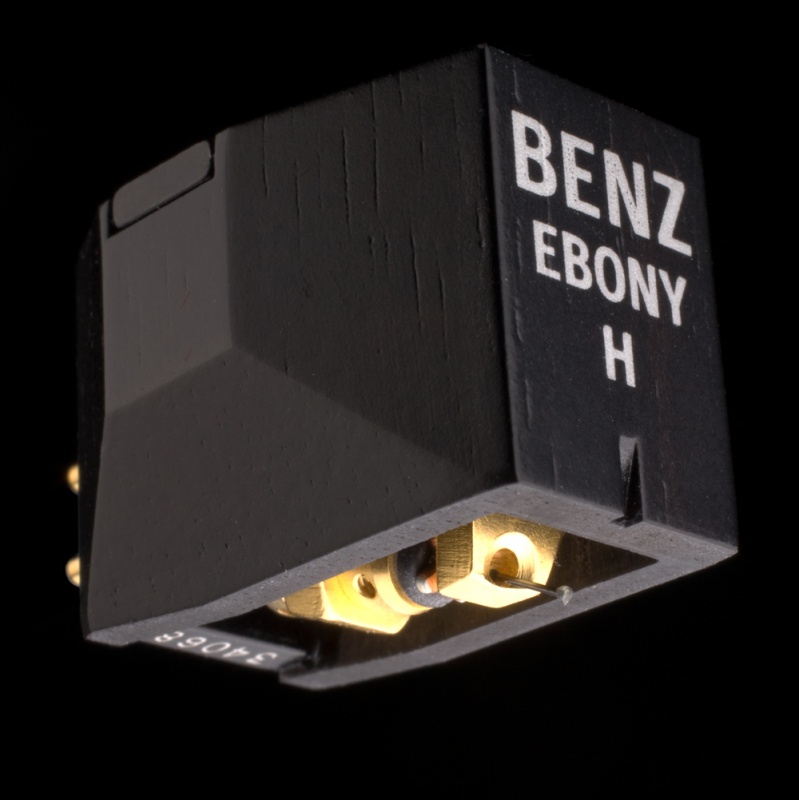

The Benz Ebony series are designer Albert Lukaschek’s ultimate realization of his cross-coil generator based cartridges. Each use the best materials such as Ebony wood body, MicroRidge stylus and the most advanced coil windings for their application. The Ebony H (2.5mV at 3.54cm/sec) is the best high output moving coil ever made, ideal for MM type phono stages, low gain tube phono stages and AV systems. The Ebony L (.26mV at 3.54cm/sec, 5ohm coil impedance) optimizes with high gain phono stages (>60dB) with input impedance of less than 300 ohms or when using step-up transformers.

Technical Specifications

Stylus Shape – Micro Ridge
Internal Ohms – 5 Ohms
Loading Range – >50
Weight – 10.7
Compliance – 14
Tracking – 1.6 – 1.9

Specification – High Output
Output Voltage 3.54 cm/sec – 2.5
Stylus Shape – Micro Ridge
Internal Ohms – 90 Ohms
Loading Range – >1000
Weight – 10.7
Compliance – 14
Tracking – 1.6 – 1.9
