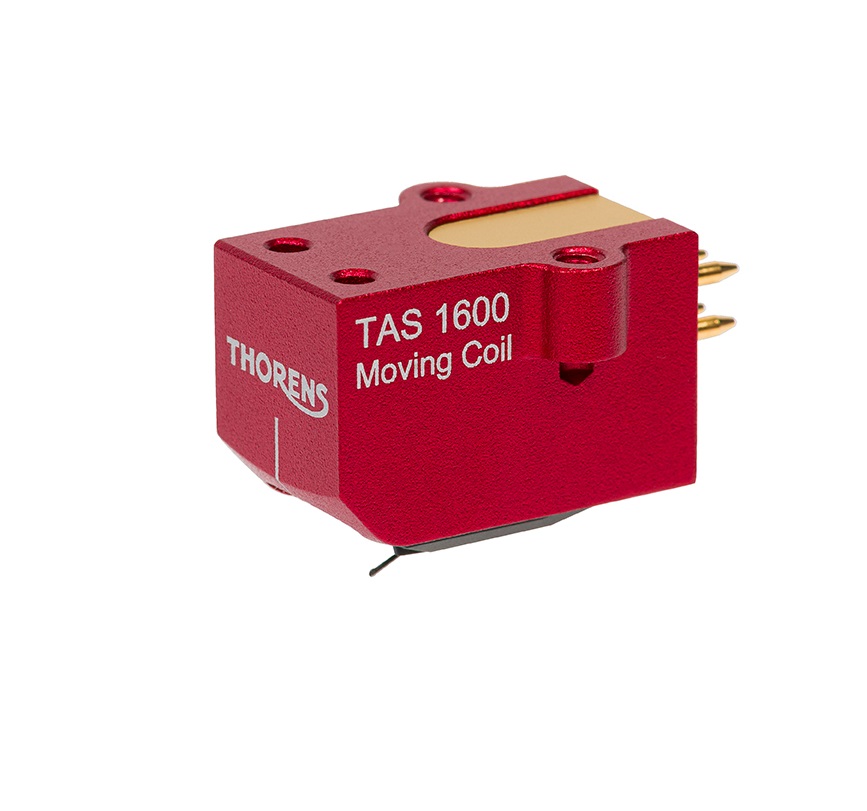

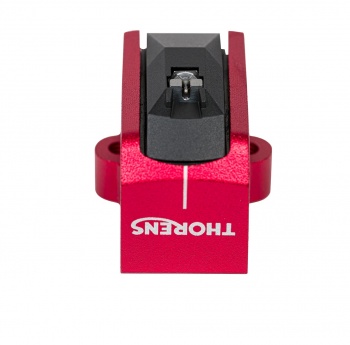

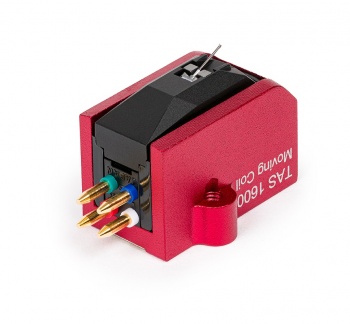

Thorens TAS 1600 Moving Coil Cartridge
Zoom  Zoom
Thorens TAS 1600 Moving Coil CartridgeThorens TAS 1600 Moving Coil CartridgeThorens TAS 1600 Moving Coil Cartridge

Thorens TAS 1600 Moving Coil Cartridge

£1,199.00
£999.17 Exc. VAT |


|

Thorens TAS 1600 Moving Coil Cartridge

The newly developed Thorens "TAS 1600" cartridge is a Japanese-made low output MC that was specially developed for the THORENS TD 1600 and TD 1601. With an output voltage of 0.4 millivolts at 5.5 cm / s, it delivers sufficient levels to harmonize with common phono preamplifiers.

With an internal resistance of 12 ohms, it feels in good hands at a terminating resistor of> 100 ohms. At the end of a massive boron cantilever sits a fine diamond with a line-contact cut, which elicits every musical fineness of the record groove.

Model TAS 1600
Mounting 1/2” centers / Threaded inserts
Frequency Response 20 - 50,000 Hz
Body Aluminium
Channel Separation 28 dB (1 kHz)
Output Channel Balance 0.5 dB (1 kHz)
Output Voltage 0.4 mV (1 kHz, 5 cm/sec)
Vertical Tracking Angle 20 degrees
Tracking force, recommended 1.8 to 2.2 g (standard 2.0 g)
Stylus Shape Special Line Contact
Stylus Size 1.5 x 0.28 mil
Stylus Construction Nude rectangular shank
Cantilever 0.28 mm Ø nude boron
Coil Impedance 12 Ohms (1 kHz)
Coil Inductance 25 μH (1 kHz)
DC Resistance 12 Ohms
Static Compliance 22 x 10 – 6 cm / dyne
Dynamic Compliance 18 x 10 – 6 cm / dyne (100 Hz)
Terminal Pins Brass
Wire Used for Coil PCOCC (Copper by Ohno Continuous Casting process)
Recommended Load Impedance min 100 Ohms
Cartridge Weight 8.2 g
EAN Code 4260623590562

Be the first to Write a Review for this item!
