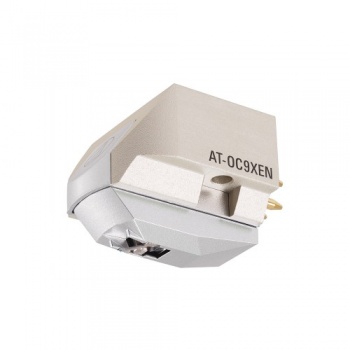

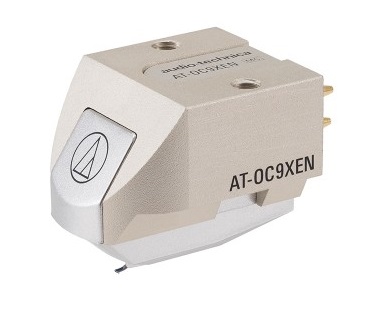

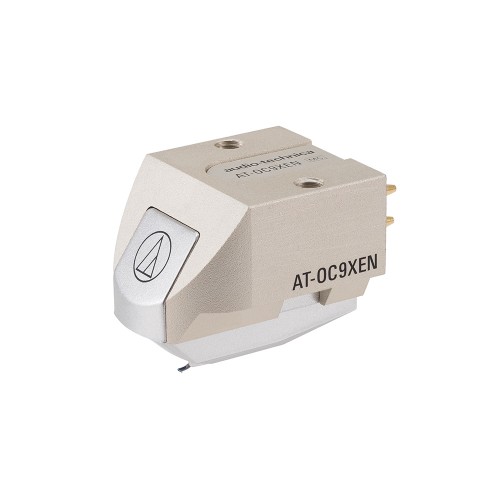

Audio Technica AT-OC9XEN MC Phono Cartridge
Zoom  Zoom
Audio Technica AT-OC9XEN MC Phono CartridgeAudio Technica AT-OC9XEN MC Phono CartridgeAudio Technica AT-OC9XEN MC Phono Cartridge

Audio Technica AT-OC9XEN MC Phono Cartridge

  (2 Reviews)
£310.00
£258.33 Exc. VAT |  |

Audio Technica AT-OC9XEN MC Phono Cartridge

Audio Technica AT-OC9XEN dual MC Phono Cartridge is one of the more affordable versions of the OC9X cartridge switching the boron cantilever on the higher models for an aliminium pipe design and coupling this with a nude square shank eliptical stylus which acheiving the same excellent channel separation.

Performance

For enhanced sound quality, the body is made from rigid aluminium lowering resonance while a neodymium magnet paired with permedur yoke significantly augment magnetic energy. The nude eliptical stylus tracks the record groove with superior precision to deliver a rich full-range audio and greater transient response.

PCOCC Coil

AT-OC9XEN uses pure copper coils that are formed via ohno continuous casting process for exceptional audio performance. The coils are configured in a reverse V-shaped the results in exterting less pressure on the eliptical stylus to reduce distortion. The pre-threaded cartridge body can be easily affixed to a headshell or integral tonearm without the need for nuts, it uses only two screws.

Key Features

  • Dual MC design with independent L/R coils for outstanding channel separation
  • Aligned coils in a reverse V-shape which exerts less pressure on the stylus
  • The cartridge body is pre-threaded for mounting on headshell or integral tonearm
  • Nude eliptical stylus and aluminium cantilever provide lower distortion and high transient respons
  • A neodymium magnet and permendur yoke provide dramatically increased magnetic energy
  • Aluminum body lowers unwanted vibration for reduced resonance and better audio
  • Pure Copper by Ohno Continuous Casting process for coils achieve pure signal transfer

Model AT-OC9XEN
Mounting 1/2” centers / Threaded inserts
Frequency Response 20 - 30,000 Hz
Body Material Aluminium
Channel Separation 25 dB (1 kHz)
Output Channel Balance 1.5 dB (1 kHz)
Output Voltage 0.35 mV (at 1 kHz, 5 cm/sec)
Vertical Tracking Angle 20 degrees
Vertical Tracking Force Range 1.8 to 2.2 g (standard 2.0 g)
Stylus Shape Elliptical Nude
Stylus Size 0.3 x 0.7 mil
Stylus Construction Nude square shank
Cantilever Aluminium pipe
Coil Impedance 12 Ohms (1 kHz)
Coil Inductance 25 μH (1 kHz)
DC Resistance 12 Ohms
Static Compliance 20 x 10 – 6 cm / dyne
Dynamic Compliance 9 x 10 – 6 cm / dyne (100 Hz)
Terminal Pins Brass
Wire Used for Coil PCOCC (Copper by Ohno Continuous Casting process.)
Recommended Load Impedance Min 100 Ohms
Cartridge Weight 7.6 g
Dimensions 17.3 (H) x 16.8 (W) x 25.7 (L) mm

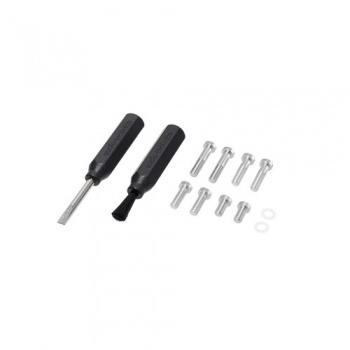

Accessories Included 1 non magnetic screw driver
1 brush
2 washers
4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
1 plastic protector
