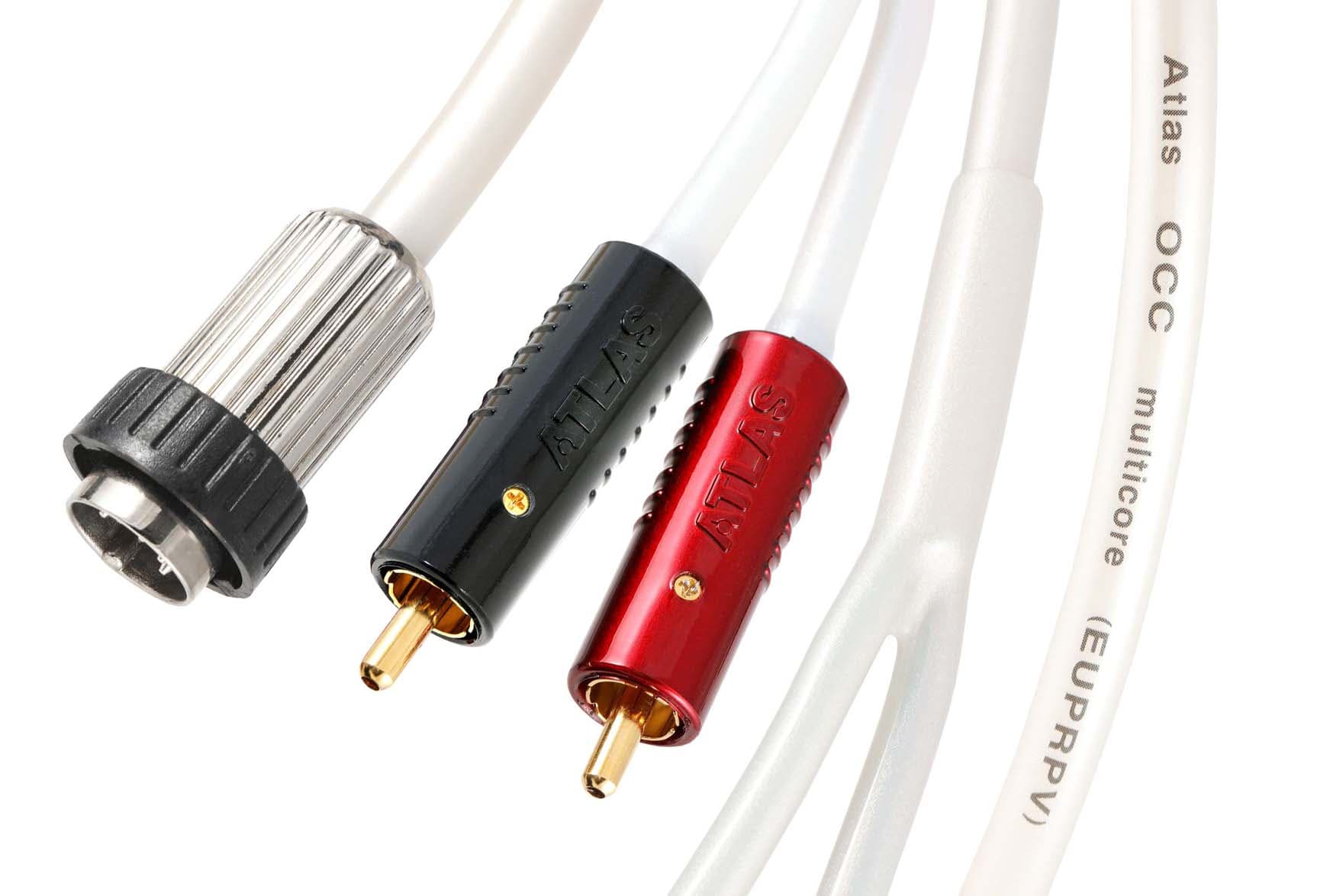

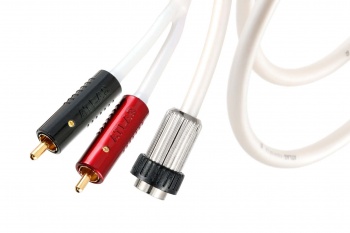

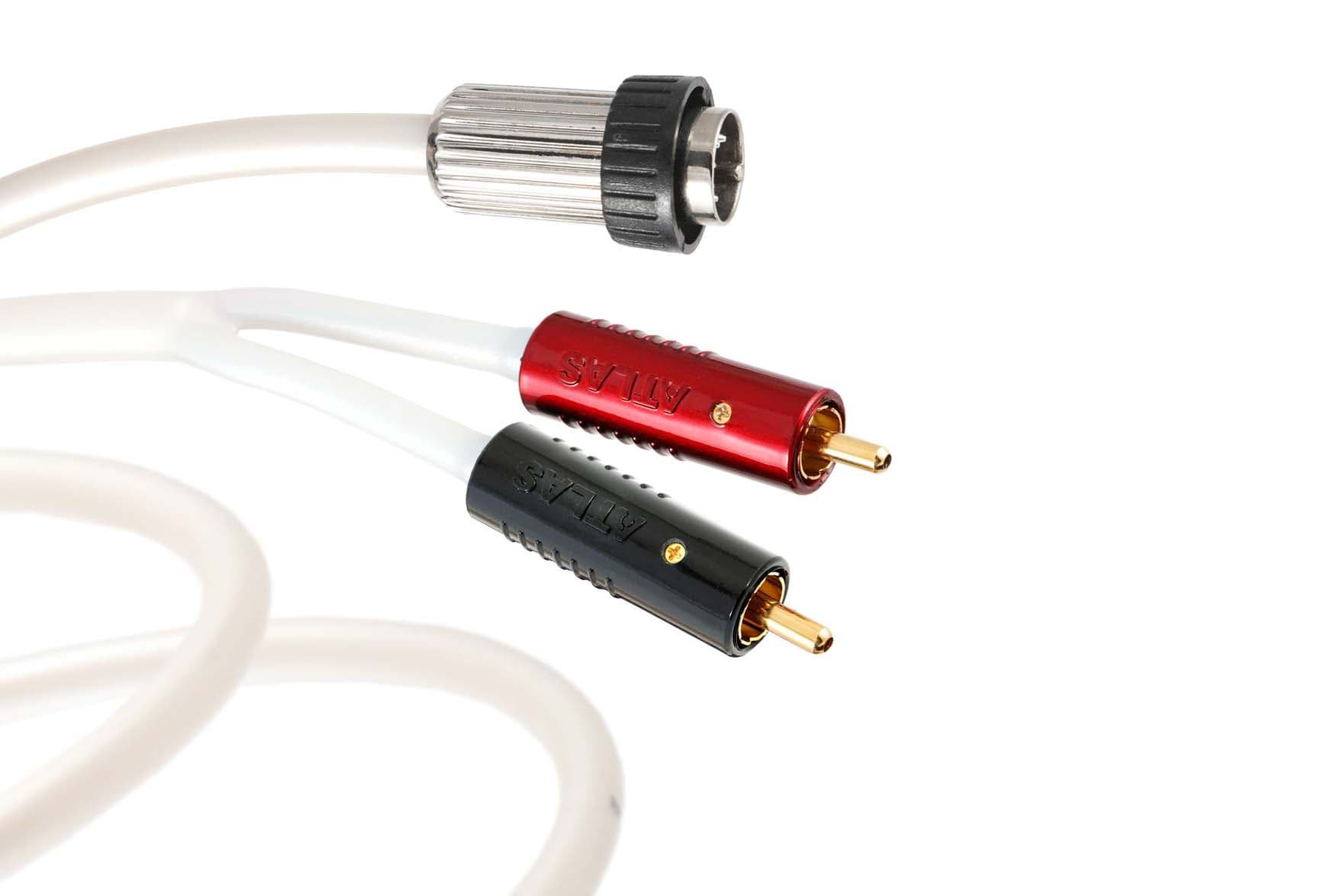

Atlas Equator Achromatic 1:2 DIN Interconnect
Zoom  Zoom
Atlas Equator Achromatic 1:2 DIN InterconnectAtlas Equator Achromatic 1:2 DIN InterconnectAtlas Equator Achromatic 1:2 DIN Interconnect

Atlas Equator Achromatic 1:2 DIN Interconnect

£228.33 Exc. VAT |  |

Atlas Equator Achromatic 1:2 DIN Interconnect

The humble DIN plug continues to be a popular choice among European manufacturers, with manufactures such as Naim continuing to champion its cause. Our Equator DIN-RCA has been introduced to meet increasing demand for a cable at this performance level. Based on our critically acclaimed EquatorAchromatic RCA, this latest cable offers a superb price/performance ratio.

The Equator DIN-RCA interconnect utilises a shielded four-core construction providing excellent immunity to interference and noise.

RCA termination is with our Achromatic non-magnetic RCA plug. The low-mass Achromatic connector features a precision calibrated cold-weld connection, creating a coherent, continuous signal path. The signal conductor is now high purity OCC (Ohno Continuous Casting) copper encased with a superbly constructed double screen to provide maximum resistance to RFI (Radio Frequency Interference), which can raise noise levels in a poorly shielded cable.

The result is a beautifully balanced interconnect conveying a large three dimensional soundstage and high levels of resolution in a cable designed to off excellent resistance to the EMI and RFI which potentially degrades performance.

The Equator range includes subwoofer, interconnect, streaming and speaker cables.

Construction Co-ax (Double Screened)
Material OCC
Dielectric PEF (foamed PE)
Screen OFC, 95% (double OFC braid)
Capacitance 74.36 pF/m
Inductance 0.497 µH/m
Resistance 0.0776 ohms/m
Impedance 78.25 Ohms at (1MHz)
Outside Diameter 7.0mm
