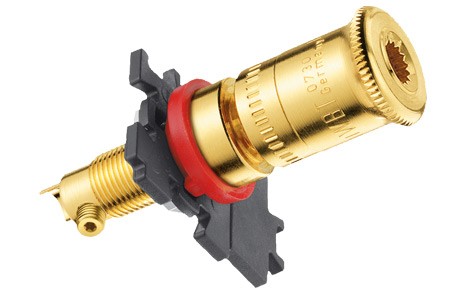

WBT-0730.01 Topline Signature 4mm Pole Terminal
Topline product for the most exacting requirements in terms of signal transmission, mechanical stability and design
Superb mechanical properties, solid design and the two-piece clamping nut with rotatable pressure piece ensure high contact pressure and hence consistently low transition resistance – the precondition for absolutely minimum effects on sound quality. The elegant design of the pole terminal is further enhanced by the multi layer gold-plated surface that reliably prevents corrosion.
Outer connection: 4 mm banana plug
A 4 mm banana plug can be connected in the front part of the clamping nut.
Spades and crimped cable ends (up to 6 mm²)
You can use the patented WBT clamping nut system to make high-pressure spade and crimped cable end connections. The cross-milled surface on the bottom of the pressure piece creates a permanently secure connection with extremely low transition resistance. It also prevents the splitting of cable strands if exposed cable ends are used.
Cables with a conductor cross section of up to 10 mm² can be used on the inside. WBT recommends the crimp connection method. You can use the supplied Torx screws and the Torx T.6 wrench to perfectly fix crimped cable ends. The connections can also be soldered, however. If you decide on soldering, WBT recommends the surface-friendly silver solder WBT-0800.
Mounting insulators are supplied and ensure not only insulated but also twist-proof mounting and polarity identification. Counter nuts, double step washers with lug and puzzle plates are also supplied. The puzzle plates can be clipped into one another. This ensures precise terminal spacing of 19 or 30 mm, but above all absolute torsion protection. The nuts on appliances with high intrinsic mechanical vibration levels like loudspeakers should be additionally secured – using the WBT serrated lock washer WBT-9150, for example. In case a fixed distance of 19 mm is required, one may use the spacer WBT-9404 and install the WBT-0730.01 as a double terminal. Thanks to the locking slots in the spacer the inlet opening for the connection cable can be rotated in steps of 45°. (WBT-9404 is supplied with each end consumer package, but in general needs to be ordered separately.)
|Conductor cross section (max.): ||outside: 6 mm² (9 AWG) |
inside: 10 mm² (7 AWG)
|Connection technology: ||outside: 4 mm banana plug, spades (6 - 8 mm spade), crimping |
inside: crimping or soldering
|Wall thickness: ||0.1 - 6 mm |
|Identification: ||red/white |
|Installation: ||with the spacer WBT-9404 also as a double terminal |
|Recommended tool: || |
- Torx T.6 wrench WBT-0488 (supplied with each end consumer package)
- Torque screwdriver WBT-0481 for professional OEM mounting
- Crimping pliers WBT-0403,
- also see crimping set WBT-0411
