Monitor Audio Soundframe 3 In-Wall Speaker
Zoom  Zoom
Monitor Audio Soundframe 3 In-Wall SpeakerMonitor Audio Soundframe 3 In-Wall SpeakerMonitor Audio Soundframe 3 In-Wall Speaker

Monitor Audio Soundframe 3 In-Wall Speaker

£224.99
£187.49 Exc. VAT |


|
Finish:

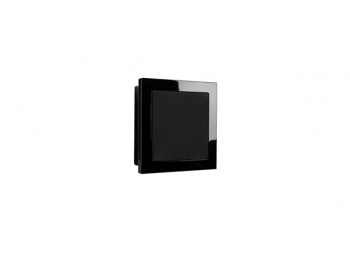

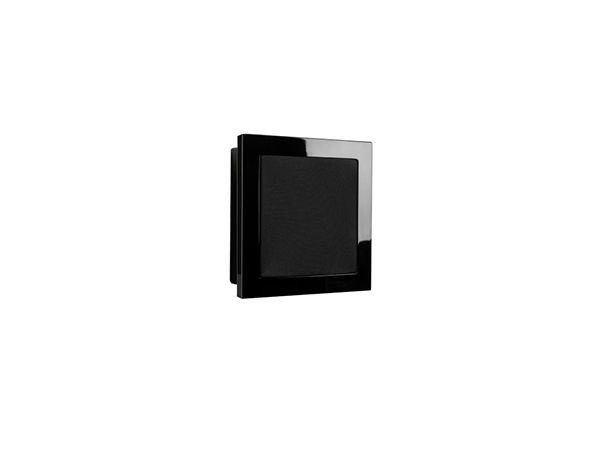

Monitor Audio Soundframe 3 In-Wall Speaker

Individual images for the grille cloths can be selected from our library or bespoke speakers can be created using your own high resolution photographs. The cabinet frames are available in high gloss white and high gloss black lacquer.

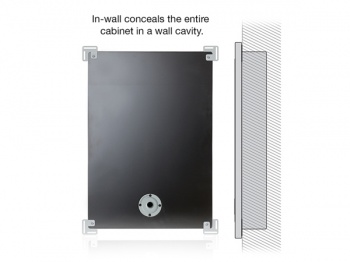

The SoundFrames can be fitted either in-wall or on-wall and with or without a frame using the Frameless grilles option.

The SoundFrame 3 In-Wall has a 2-way configuration with a pivoting 1-inch tweeter module and a 4-inch C-CAM driver.

Technology

  • Quick and easy installation.
  • Slender 87 mm (3.5") cabinet depth.
  • Choice of high gloss white or black lacquer frames.
  • SoundFrame 3: 2-way configuration: a pivoting 1 inch tweeter module with a 4-inch C-CAM driver.
  • High frequency attenuation +- 3 dB.

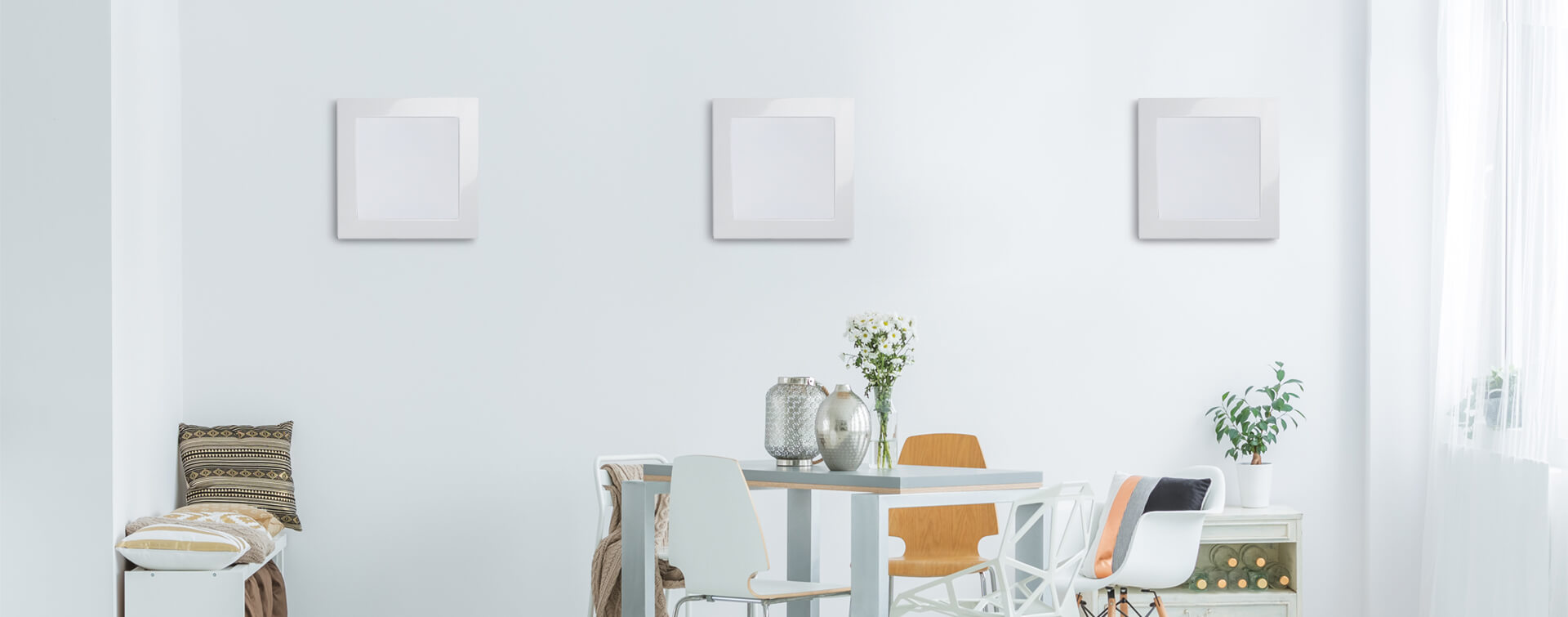

  • Ultra-discreet on-wall/in-wall AV/audio system, suitable for any interior.

Frequency Response

75 Hz — 35 kHz

Sensitivity (1W@1M)

86 dB

System Configuration

2-Way

Drive Unit Complement

1 x 4" C-CAM mid-range driver
1 x 1" pivoting Gold Dome tweeter

Power Handling (RMS)

50 W

Maximum SPL

102.5 dBA

Recommended Amplifier Requirements

25 — 50 W

Bass Alignment

Ported Box

Nominal Impedance

8 ohms

Crossover Frequency

3.2 kHz

Dimensions (Including Frame (H x W x D))

301.5 x 301.5 x 77.5 mm (117/8 x 117/8 x 31/16")

Cut-Out Dimensions

251 x 251 x 59.5 mm (97/8 x 97/8 x 25/16")

Depth From Wall

18 mm (3/4")

Weight (packaged)

3 kg (6.6 lbs)
