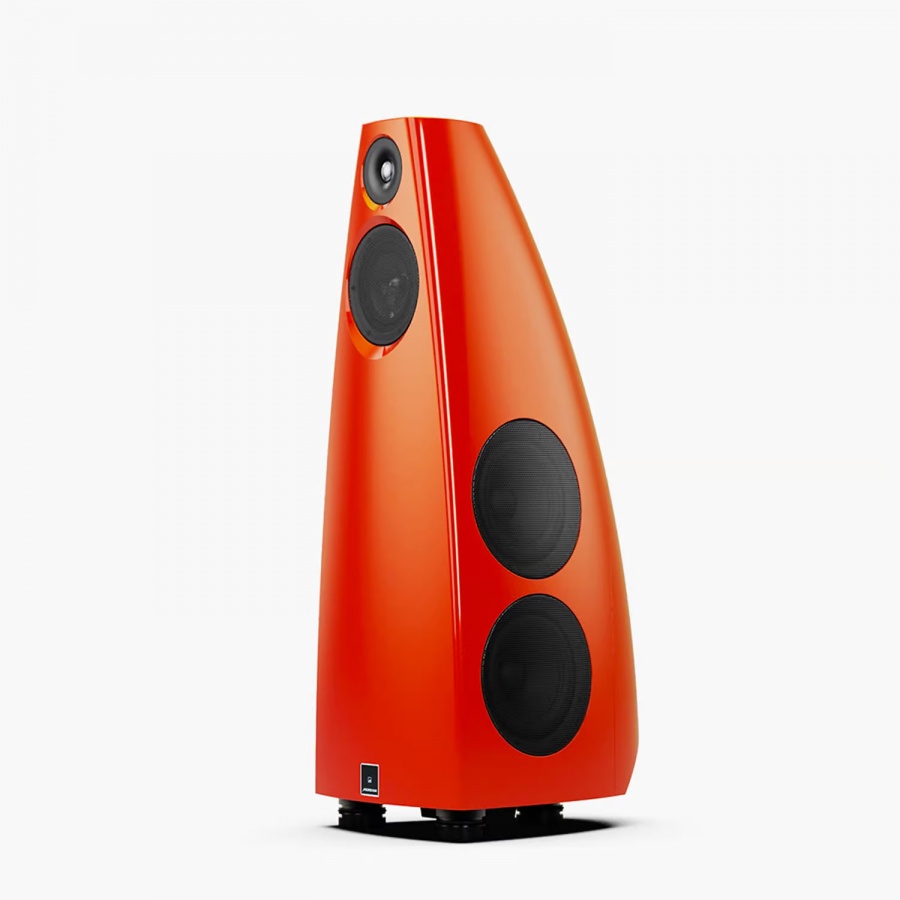

Meridian DSP9 Active Loudspeakers
Zoom  Zoom
Meridian DSP9 Active LoudspeakersMeridian DSP9 Active LoudspeakersMeridian DSP9 Active LoudspeakersMeridian DSP9 Active Loudspeakers

Meridian DSP9 Active Loudspeakers

£60,000.00
£50,000.00 Exc. VAT |  |


COLLECT IN STORE ONLY

PLEASE Call to discuss installation details



PLEASE NOTE : WE CAN ONLY SUPPLY MERIDIAN PRODUCTS TO THE UK

Meridian DSP9 Active Loudspeakers

Acoustic and Visual Masterpiece

DSP9 is the latest product to emerge from Meridian’s groundbreaking Extreme Engineering Programme; a result of years of investment and research at the extreme edge of audio design. The unique and fundamental Programme has been built around Meridian’s approach to delivering authentic, natural and lifelike sound and results in a level of performance never previously achieved on a loudspeaker of this size.

Advanced engineering was used to create the striking sculptured exterior lines and sophisticated three-dimensional spaces within the cabinet to enhance its performance. The DSP9 also features Meridian’s Precision Sonic Transport which uses innovative techniques and processes which ensure the entire journey taken by an audio signal through a product maintains maximum sonic fidelity, so that the listener is immersed in authentic and realistic sound.

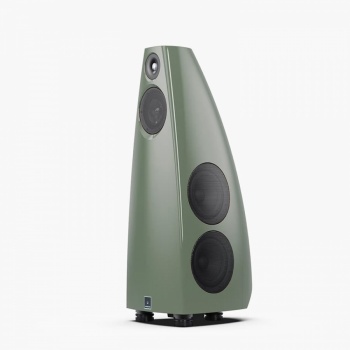

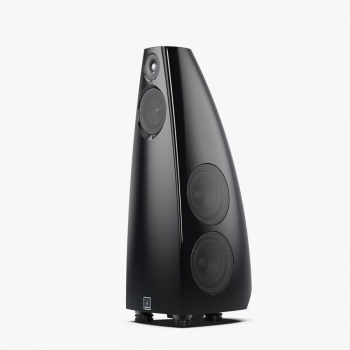

The outstanding fidelity, dynamics and sheer power of the DSP9 means they deliver an incredible experience in cinemas and listening rooms alike. Our Select Finishing option gives you the choice of blending into the room with a complimentary finish or standing out with a bold, vibrant colour, finished in matte or gloss.

BESPOKE SIGNAL MAPPING

Meridian Bespoke Signal Mapping utilises digital signal processing to apply tailored crossover filters that are designed specifically for each configuration of drive units within a loudspeaker.

FFA

FFA (Full Frequency Alignment) is a combination of digital filters and delays to correct the group-delay of a loudspeakers. It ensures that all frequencies reach the listener’s ear at the same time.

E3 BASS

Meridian E3 Bass uses specifically designed filters to expand, extend and enhance the low-frequency response of the loudspeaker.

Construction

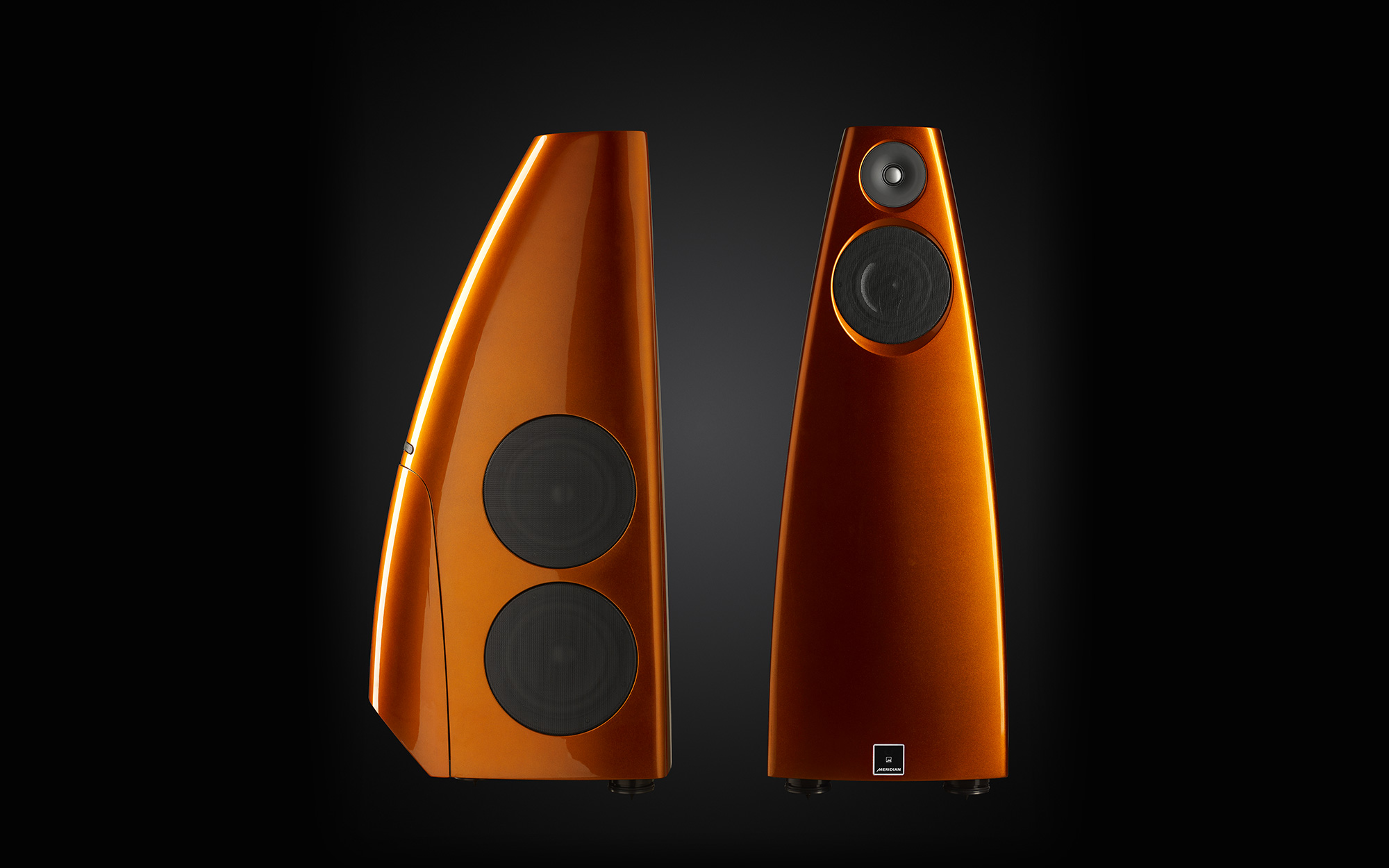

The sculpted lines of the DSP9 provide enhanced sonic benefits, as the curvature of the exterior minimises unwanted diffraction of the sound produced by the loudspeakers. The subsonic bass drivers are housed in an isolated cavity and this separation prevents the forces created inside the loudspeaker by the bass-drivers from interfering with the performance of the midrange driver and tweeter.

With an ability to deliver the very best from High Resolution sources, the performance of the DSP9 demonstrates why Meridian is widely regarded as the British Audio Pioneers.

INPUT CONNECTIVITY

1 x Meridian SpeakerLink connector [RJ45]

1 x co-axial digital audio [RCA phono] supporting up to 192kHz @ 24-bit

1 x optical digital audio [Toslink] supporting up to 96kHz @ 24-bit

1 x USB digital audio [type C] supporting up to 384kHz @ 24-bit

Bluetooth via the Meridian B-Link [supplied]

1 x balanced analogue audio [XLR] on analogue input module

1 x unbalanced analogue audio [RCA phono] on analogue input module




OUTPUT CONNECTIVITY

1 x Meridian SpeakerLink connector (RJ45)




CONTROL OPTIONS WITHOUT ANALOGUE INPUT MODULE

Meridian comms via SpeakerLink

Bluetooth via Meridian B-Link module [supplied] and the Meridian Control app

Integrated IR receiver

External IR receiver connection

RS232 via SpeakerLink input

USB via Maintenance connection




CONTROL OPTIONS WITH ANALOGUE INPUT MODULE

Automatic signal-sense detect. Switch on detect time less than three seconds; switch to standby timeout approximately 20 minutes

Trigger input on analogue input module [3.5mm minijack]




PERFORMANCE

Peak SPL: 119dB@1m for a single loudspeaker

Frequency response in room within 3dB: 20Hz – 40kHz




TWEETER AMPLIFIER

Class AB, capable of greater than 150W into 4Ω, < 1% THD

THD + noise @ 1kHz < 0.005%

Bandwidth >100KHz




MID-RANGE AMPLIFIER

Class AB, capable of greater than 150W into 4Ω, < 1% THD

THD + noise @ 1kHz < 0.005%

Bandwidth >100KHz




BASS AMPLIFIERS

Four bridged pairs of Class-D amplifiers - each pair capable of greater than 240W into 4Ω, < 1% THD

THD + noise @ 1kHz < 0.008%




TWEETER

25mm beryllium dome with silver voice-coil, steel custom waveguide




MID-RANGE DRIVER

1 x 160mm with non-conductive voice-coil former and anti-resonance clamp-ring mounting system




BASS DRIVERS

4 x 200mm polypropylene long-throw [up to 24mm excursion] with anti-resonance clamp-ring mounting system




FRONT-PANEL INDICATOR

Blue in Standby, White in use [can also be unlit in use]




REAR-PANEL CONTROLS

Power On/Off, channel selector switch, input sensitivity switch [on analogue input module]




DIMENSIONS / WEIGHT

WIDTH: 392mm [15.43in ] tapering to 158mm [6.2in]

DEPTH: 511mm [20.1in] tapering to 187mm [7.4in]

HEIGHT*: 1101mm [43.5in]*

WEIGHT: 68kg [149.9lbs]

*With feet/spikes fitted




LOUDSPEAKER PACKED

WIDTH: 660mm [26.0in ]

DEPTH: 550mm [21.7in]

HEIGHT*: 1240mm [48.8in]*

WEIGHT: 80kg [176.4lbs]

*With feet/spikes fitted
