JBL S4700 Loudspeakers
Zoom  Zoom
JBL S4700 LoudspeakersJBL S4700 LoudspeakersJBL S4700 LoudspeakersJBL S4700 Loudspeakers

JBL S4700 Loudspeakers

£16,499.00
£13,749.17 Exc. VAT |  |


JBL S4700 Loudspeakers

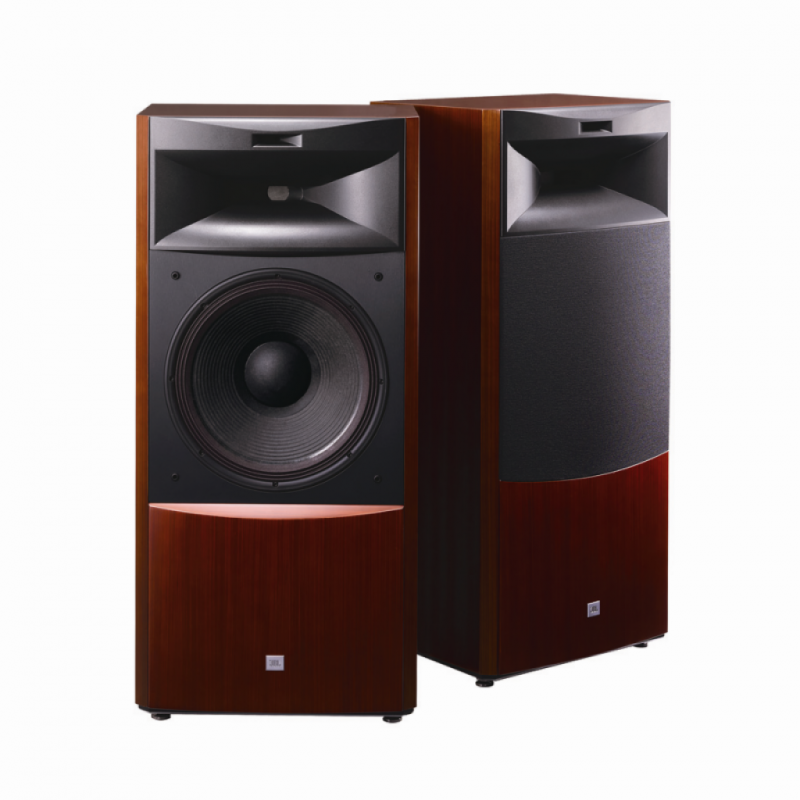

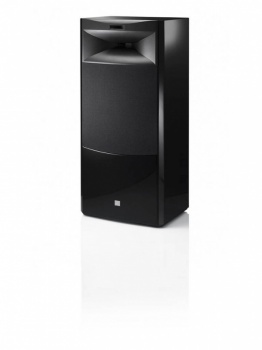

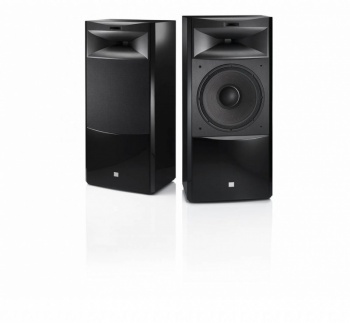

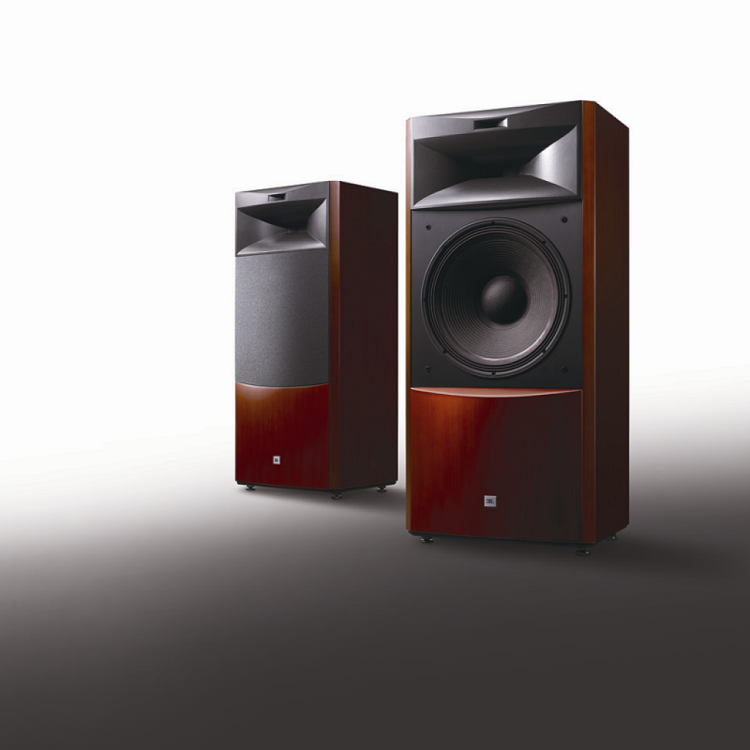

The S4700 is a floorstanding 3-way high-performance loudspeaker built upon the same professional-grade technology used in the acclaimed Project K2 S9900, one of the most advanced and sophisticated loudspeakers in the world today.

At its foundation, the S4700 uses an all-new cast-frame 15-inch woofer (2216Nd) with a powerful dual 3-inch voice coil and neodymium motor structure for outstanding balance with the horn-loaded compression drivers.

Mid- and high frequencies are reproduced by a pair of titanium diaphragm compression drivers and a single-piece, SonoGlass® dual horn assembly. The 2-inch Aqua-Plas™-coated titanium diaphragm compression driver (175Nd-3) is mated to a 90° x 60° Bi-Radial® horn and delivers mid- and high-frequencies with lifelike dynamics and startling realism while an ultra-high frequency 0.75-inch titanium diaphragm compression driver (138Nd) with a 60° x 30° Bi-Radial horn recreates critical air and spaciousness.

Premium-quality network components and dual binding post inputs ensure audiophile performance in any application.

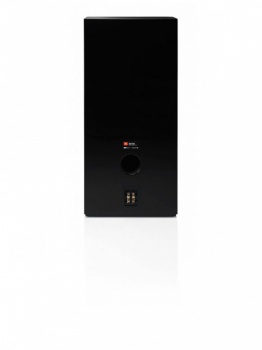

The attractive furniture-grade cherry wood veneer enclosure is internally braced at critical points and is tuned via a rear-firing port.

The S4700 is intended for use in high-performance 2-channel audio systems or as an LCR loudspeaker in a JBL Synthesis multi-channel home theatre installation.

• 380mm (15”) pure pulp cone with treated cloth edge and Differential
Drive® (U.S. patent no. 5,748,760 and other patents pending) neodymium
motor assembly
• 1.8” (4.6 cm) Aqua-Plas-coated titanium diaphragm high frequency compression driver with Bi-Radial® horn
• 0.75” (1.9 cm) Titanium diaphragm ultrahigh frequency compression
driver with Bi-Radial® horn
•Maximum recommended amplifier power: 300 watts RMS
•Frequency response: 38Hz – 40kHz (–6dB)
•Nominal impedance: 6 ohms
•Sensitivity: 94dB (2.83V/1m
• Dimensions (H x W x D): 42.1” x 19.7” x 14.6” (106.8 cm x 50.0 cm x 37.1
cm)
• Weight: 120 lb (54.5 kg)
• Packaged dimensions (H x W x D): 20.1’’ x 46.3’’ x 24.6’’ (510 x 1175 x
625mm)
• Packaged weight: 139 lb (63.2 kg)
