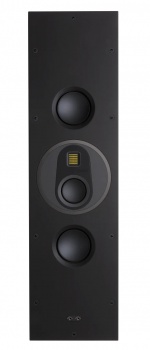

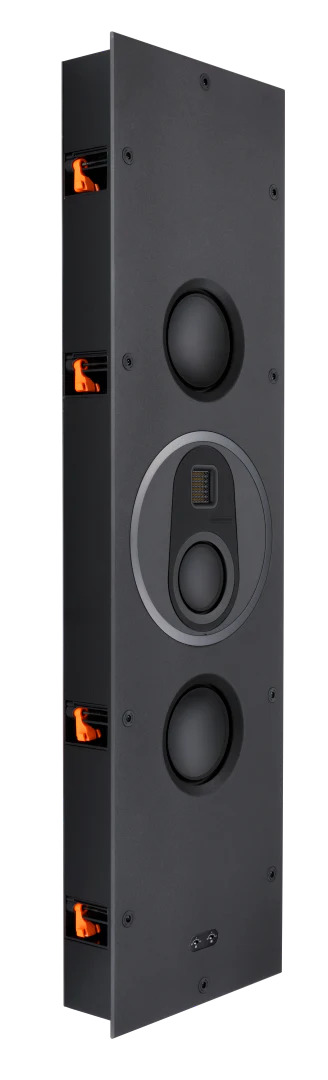

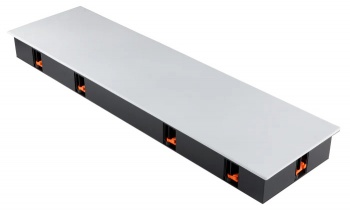

Monitor Audio Platinum In-Wall Speaker

The Platinum In-Wall 3G is a three-way architectural In-Wall loudspeaker that features an MPD III tweeter, 4” RDT III midrange driver and twin 6" RDT III bass drivers. It can be used either horizontally or vertically anywhere within a high-performance home theatre or two-channel stereo system.

Platinum In-Wall 3G is Monitor Audio’s flagship high-performance, architectural, in-wall speaker. It is designed for use in high-end audio and movie systems, where accurate, clear and lifelike sound is required. With the minimum of room intrusion but with maximum scale and sonic impact.

Platinum In-Wall 3G can be installed either vertically or horizontally, which means it can be used on any channel within a system and is ideal for LCR applications and for seamless tonal accuracy within a theatre system.

KEY FEATURES

1 x MPD III high-frequency transducer for a larger, clearer, and more lifelike sound
1 x 4” RDT III mid-bass driver for incredible levels of clarity and scale
2 x 6” RDT III bass drivers for exceptional weight and depth
Patented 'DCF' (Dynamic Coupling Filter) mechanism for more natural sound
Bespoke speaker terminals and footings
Underhung, edge-wound voice coils: greater driver efficiency and lifelike dynamics, less distortion
Rigid cabinet construction made from 25 mm MDF with steel back
Extensive internal bracing using thick MDF cross bracing techniques


System Format	3-way
Frequency response (-6dB) Free-Field	41 Hz – >60 kHz
Frequency response (-6dB) In room	27 Hz – >60 kHz
Sensitivity (2.83v @ 1m)	88 dB
Nominal impedance	4 Ohms
Minimum Impedance	4.1 Ohms @ 1.6 kHz
Continuous Power Handling (RMS into 4 Ohms, Pink Noise with 6dB Crest Factor)	300 W
Recommended Amplifier Power (RMS into 4 Ohm, Music Signal)	150-600 W
Bass Alignment	Sealed
Crossover Frequency	LF/MF: 825 HzMF/HF: 3 kHz
Drive Unit Complement	2 x 152mm RDT III bass driver 1 x 101mm RDT III mid-range driver 1 x MPD III tweeter
External Dimensions including Grille and Terminals (H x W x D)	1207 x 332 x 105.5 mm
Cut Out Dimensions	1175 x 300 x 97.5mm
Weight (Each)	27.7 kg
