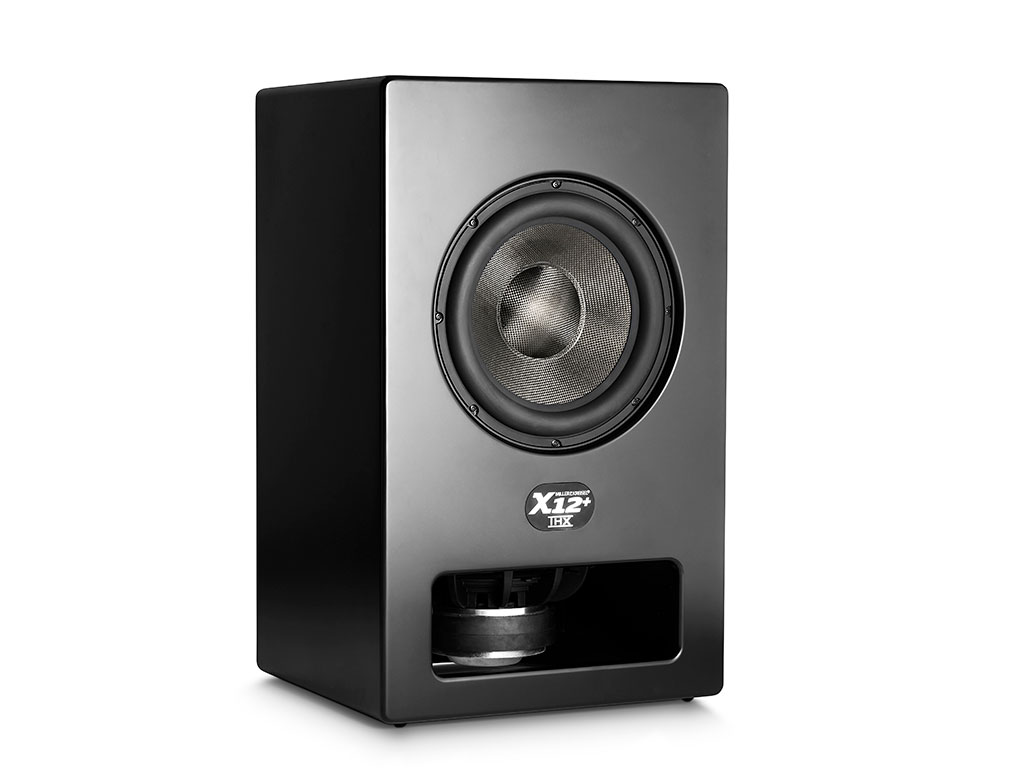

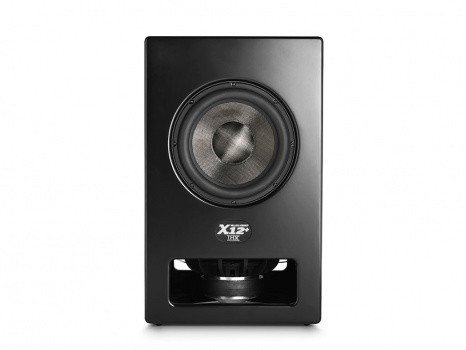

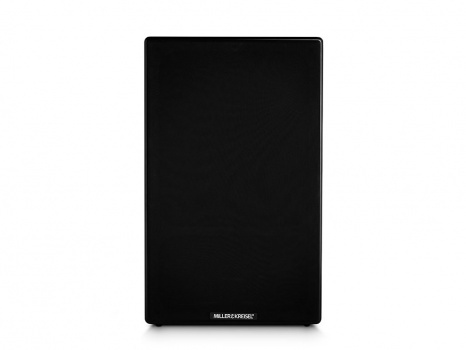

Miller & Kreisel X12+ Active Subwoofer

The most advanced subwoofers technologies for the future
New Carbon Fibre Woofer Cones have been developed for all models with ultra-high strength and rigidity to accommodate the added power and excursion of the new X+ Series. M&K Sound’s proprietary CNC-machined, extruded aluminium Distortion Killer Shorting Rings also guarantee absolute control and distortion-free, exemplary performance in all settings.
M&K Sound’s iconic Push-Pull subwoofer architecture and “reversed double driver” non-isobaric configuration mean that both drivers in the cabinet are ‘exposed’ to room air. Consequently, and like the X-Series before, the X+ Series models are effectively two subwoofers in one cabinet enabling a further associated reduction in distortion. This is made possible by having one inverted driver in relation to the other cancelling non-linearities to produce totally symmetric waveforms.
The X15+, X12+ and X10+ all feature full 25mm MDF construction and bracing for negligible panel vibrations or cabinet resonances, and increased venting at the base of the woofers mitigates distortion due to air turbulence. These milled cavities also act as convenient carrying handles for installation efficiency


Frequency Response: 18-200 Hz (Average Response in Room +/- 3 dB)
Frequency Roll Off – THX EQ: 18 Hz (-6 dB 20 Hz Nearfield )
Frequency Roll Off – Anechoic EQ: 18 Hz (-6 dB 20 Hz Nearfield)
Variable Low Pass Filter: 40-200 Hz Continuesly Variable / 4th Order
Loss Pass Filter Bypass: 40-200 Hz No Low Pass
Fixed 80 Hz Filter Yes (Equivalent to THX 80Hz Ref Low Pass)
Phase Control: 0 – 180 deg Continuesly Variable

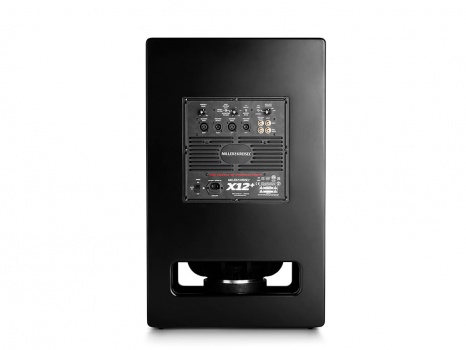

Line level input/output: 2 x RCA phono Left / Right – input / output
Line level input/output: 2 x XLR Left / Right – Input / output
Amplifier type:   Analog input / switch mode power output
Drive unit: 2 x 12” Extra Long Throw
System Principle: Push Pull Sealed enclosure
Amplifier Power output RMS: 600 watt 0.5% THD at 300W into 4 ohms
Amplifier Power output Peak: 1200 watt
Standby Power Consumption: 0.5 watt 120W Average, 800W Max
Headroom Limiter Maximizer: Yes (Dynamic driver excursion control)
Auto Power detect on/off: Yes


Finish: Satin Black


Dimensions H x W x D 28.7 x 17.7 x 15.2 in / 72.8 x 45.0 x 38.5 cm
Weight: Netto 101.2 lbs / 45.9 kg
Manual No
Manual Yes Gloves, US/EU Power cords, Rubber Feet

Be the first to Write a Review for this item!

Related Products
Miller & Kreisel V8 Active Subwoofer

Miller & Kreisel V8 Active Subwoofer£895.00   Call for price

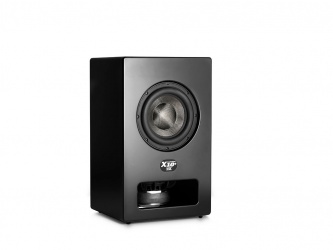

Miller & Kreisel X10+ Active Subwoofer

Miller & Kreisel X10+ Active Subwoofer£3,295.00   Call for price

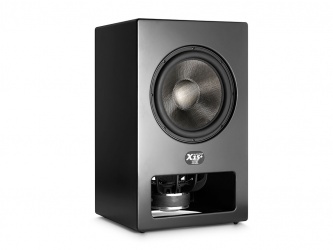

Miller & Kreisel X15+ Active Subwoofer
