Dual Folded Motion XT tweeters in a wide- dispersion array ideally suited for surround channel applications.

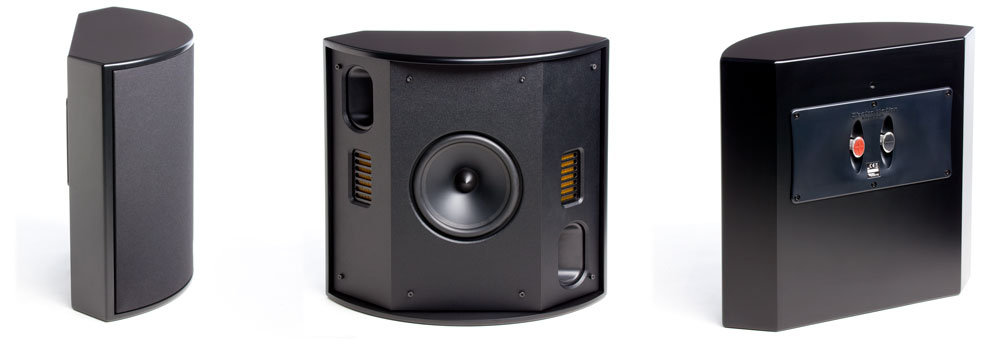

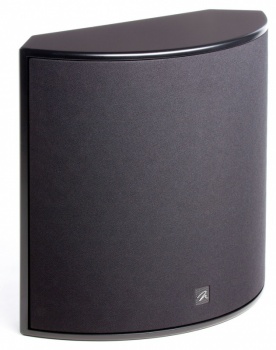

The EM-FX2 features dual Folded Motion XT tweeters in a wide-dispersion array ideally suited for surround channel applications. A single 6.5-inch doped fiber-cone woofer provides powerful low-frequency extension. Available in a black satin finish, the EM-FX2 is designed to corner mount, wall mount or angle-wall mount for versatile surround sound placement in any room.
MartinLogan's larger, low distortion Folded Motion XT tweeter boasts a radiating surface 40% larger than those found in the award-winning Motion® Series products. This substantial leap in size increases the bandwidth and efficiency of the high-performance tweeter for effortless center channel performance.
hen mounted on a flat wall, the EM-FX2 protrudes only 6.8", making it the perfect surround channel speaker for large rooms, without adding unnecessary bulk or visual distraction.
55–25,000 Hz ±3dB
Recommended Amplifier Power
20—200 watts per channel
93 dB @ 2.83 volts/ meter
5 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.
High Frequency Transducer
Two 1.25" × 2.4" (3.2cm × 6.1cm) Folded Motion XT Transducers with 4.5" × 2.75" (11.4cm × 7cm) diaphragm
Low Frequency Transducer
6.5" (16.5cm) paper cone with cast aluminum basket. Ported.
Custom air core coil inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel. Tweeter thermal/current protection.
Push style with banana jacks
16 lbs. (7.3 kg)
14.9" x 14" x 6.8 " (37.9cm x 35.5cm x 17.2cm)
