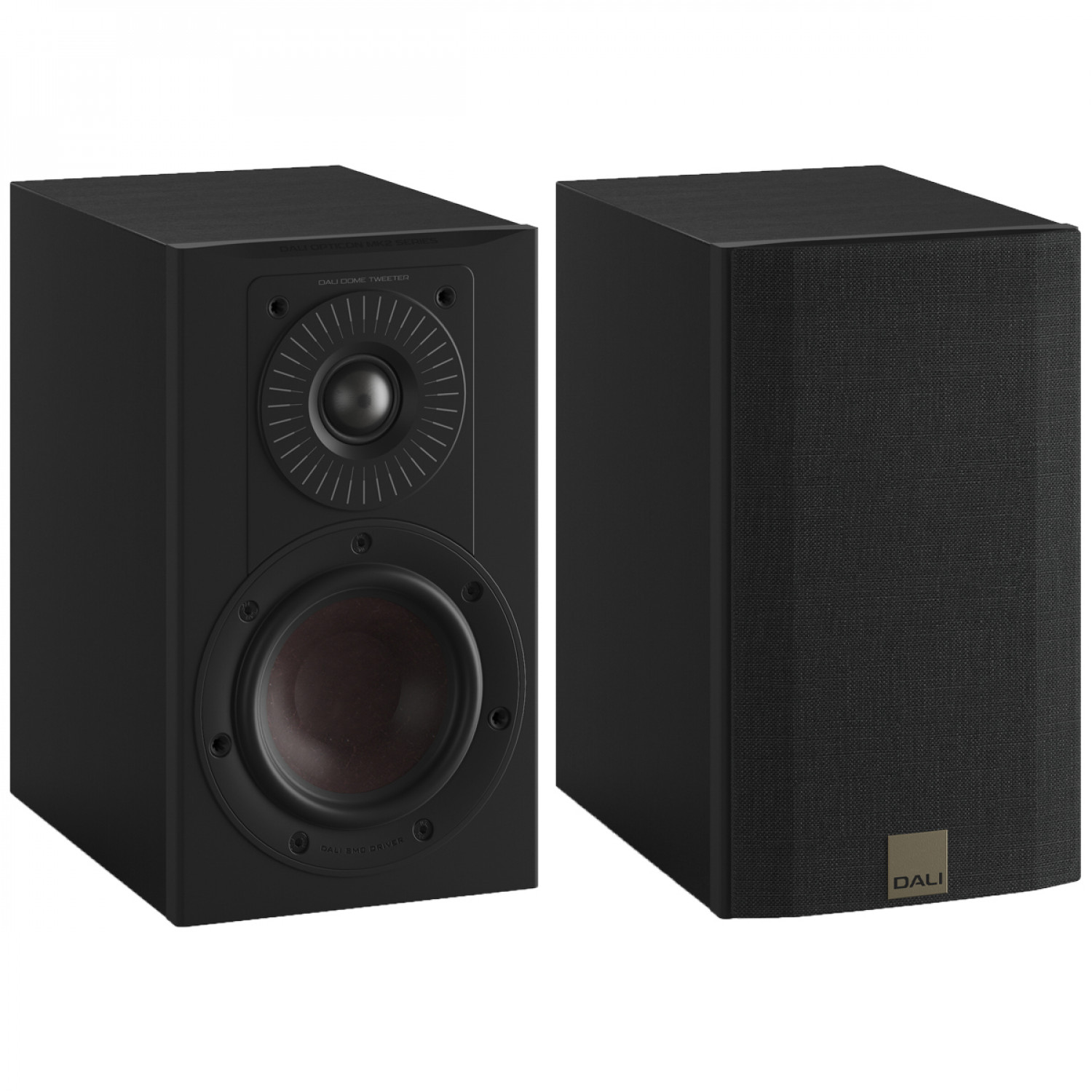

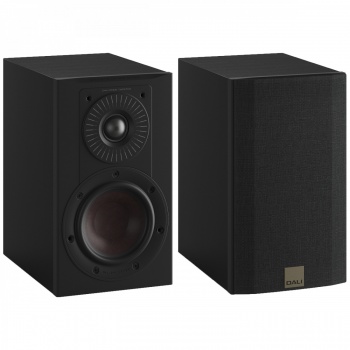

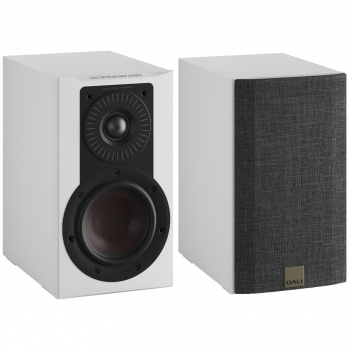

Dali Opticon 1 MK2 Speakers
Zoom  Zoom
Dali Opticon 1 MK2 SpeakersDali Opticon 1 MK2 SpeakersDali Opticon 1 MK2 Speakers

Dali Opticon 1 MK2 Speakers

£582.50 Exc. VAT |  |


Dali Opticon 1 MK2 Speakers

The OPTICON 1 MK2 is a compact stand mount speaker designed to be installed close to room boundaries, while the Dual Flare reflex loaded enclosure enables the OPTICON 1 MK2 to deliver remarkable bass performance for its size that integrates perfectly with the inherent midrange and high frequency quality of its drivers.


The SMC used in OPTICON MK2's magnet motor system has very high magnetic permeability and very low electrical conductivity. It works primarily by minimising eddy currents in the magnet system pole piece. This improves flux linearity, reducing the magnetic hysteresis. Resulting in a significant reduction of electro-acoustic distortion.


The newly introduced OPTICON MK2 Dual Flare technique brings port design into the realm of aerodynamics - with exit and entry flares carefully designed to minimise turbulence. Dual Flare enables OPTICON MK2 reflex ports to remain laminar and work effectively to reinforce low frequency performance to a significantly higher volume level than would otherwise be possible.


Speakers used and enjoyed in pairs should also be built as pairs! Our manufacturing process is designed to ensure that stereo pairs of speakers are built and tested sequentially by a single manufacturing technician, using components taken in the same order from the same batch. It’s a process that helps ensure ultimate visual and acoustic pair matching.


Manufacture of the OPTICON MK2 series has been retained firmly at our Danish factory. Our in-house woodworking facility handles everything from cutting the MDF enclosure panels to applying the surface finishes. Assembly by hand, testing and quality approval on each and every speaker is also handled on our own assembly lines.
Frequency range (+/-3 dB) [Hz] 62 - 25.000
Sensitivity (2.83V/1m) [dB] 85
Nominal Impedance [ohm] 4
Maximum SPL [dB] 105
Recommended Amplifier Power [Watt] 25-100
Crossover frequency [Hz] 3.000
Crossover principle 2-way
High frequency driver 1 x 29 mm soft dome
Low Frequency / mid-range Driver(s) 1 x 4 3⁄4”
Enclosure type Bass reflex
Bass Reflex Tuning Frequency [Hz] 60
Connection Input(s) Single
Recommended placement Stand/Shelf/Wall
Recommended distance from rear wall to speaker’s rear panel [cm] 2 - 80
Dimensions (H x W x D) [mm] 261 x 152 x 231
Dimensions (H x W x D) [inches] 10.28 x 6.0 x 9.1
Weight [kg/lb] 4.6 / 10.1
Included accessories Rubber feet, manual
