Van den Hul Teatrack Speaker Cable Unterminated
Zoom  Zoom

Van den Hul Teatrack Speaker Cable Unterminated

£34.99
£29.16 Exc. VAT |  |

Van den Hul Teatrack Speaker Cable Unterminated

Please enter the amount of meters you require in the quantity box when ordering

 The TEATRACK HYBRID is the heaviest member of our quadruple lead / bi-wiring loudspeaker cable range.


Its four leads each feature 147 high purity dense Silver coated high purity Matched Crystal Oxygen Free Copper (OFC) strands with an effective cross-section area of 2.96 mm² equalling AWG 12.5 and exhibiting a resistance of 0.58 Ohm per 100 meter.
Covering each conductor is a layer containing our Linear Structured Carbon ®; This combination of metal and carbon (hybrid technology) has excellent properties when it comes to resolution and neutrality.
The cable’s cream coloured jacket is made of our HULLIFLEX ® 5; a material with excellent mechanical, chemical and environmental properties, thus providing the cable with an optimal protection.
The TEATRACK HYBRID’s external dimensions are: 25.5 mm. wide and 6.0 mm. thick.

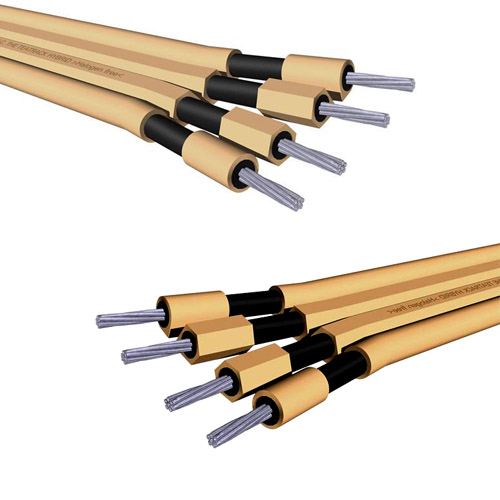

Polarity determination is simple: the four conductors have different insulator shapes, furthermore, one set has two cuts and the other set has only one cut and a flat surface at the other side with type printing.
Type printing at 25 cm. (10") distance allows easy cutting of lengths.
It is advised to use the two inside conductors as the cold (-) leads and both outer conductors as the hot (+) leads.

The TEATRACK HYBRID is the quadruple lead / bi-wiring version of our The CS - 122 HYBRID.

Cable Type: Quadruple conductor
Conductor Material: HYBRID: High purity dense Silver coated high purity Matched Crystal OFC + Linear Structured Carbon ® saturated layer(s)
Design Purpose/
Application Area(s):
Loudspeaker bi-wiring cable
Eff. Conductor Ø/Eq. AWG No./Strands: 4x(2.96 mm² / AWG 12.5 / 147)
External Diameter /
-Dimensions:
25.5 mm. wide; 6.0 mm. thick
Resistance 20 °C / 68 °F: 0.58 Ohm/100 m.
Capacitance: ~53 pF/m.
Insulation / Dielectric Strength / Test Voltage: Jacket: HULLIFLEX ® 5 / 300 Vrms min.
