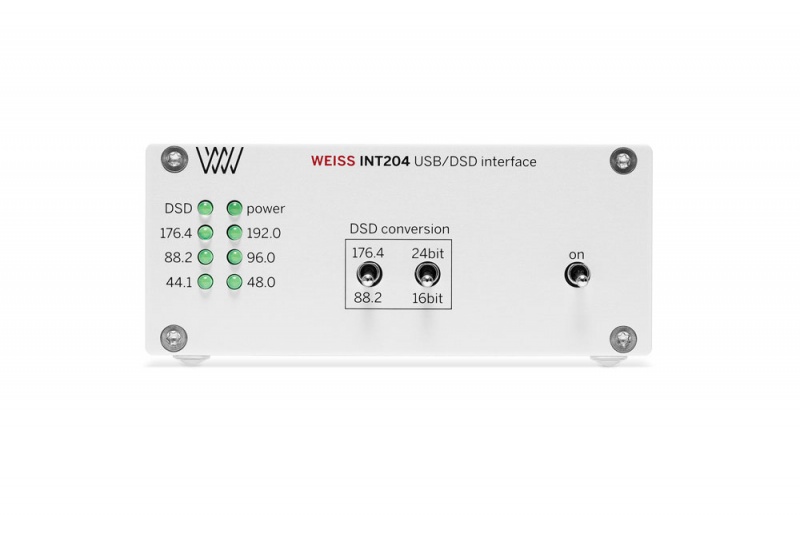

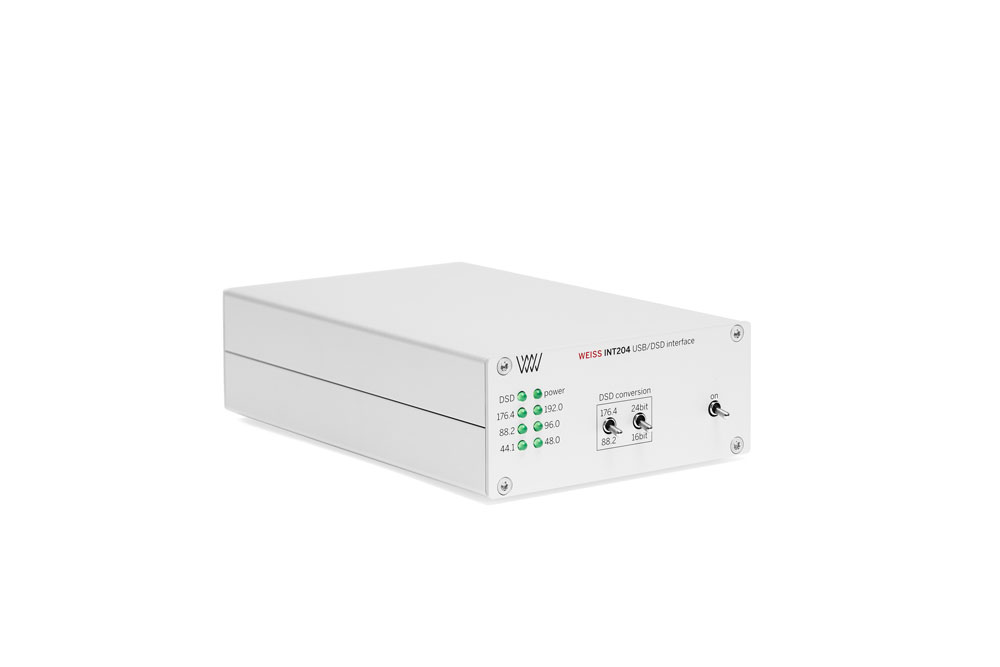

Weiss INT204 USB/DSD Interface

Weiss INT204 USB/DSD Interface

USB TO AES/EBU OR S/PDIF INTERFACE, AND DSD TO PCM CONVERTER

Reach for the INT204 to play back audio from your computer, if your DAC lacks a USB input. It takes the USB audio input stream and outputs it as either AES/EBU or S/PDIF. Connect it to your DAC and enjoy the computer audio with pristine digital-to-analog conversion.

The INT204 also handles DSD to PCM conversion, at the sample rate and wordlength of your choice.

USB CONNECTIVITY FOR YOUR DAC
The INT204 allows you to play back audio from a USB-equipped computer through a non-USB-equipped DAC. It takes the incoming USB audio stream and outputs it in AES/EBU or S/PDIF formats.

You can now enjoy audio from your computer through your DAC, even if it does not have a USB input.

DSD TO PCM CONVERSION AND VOLUME CONTROL
You can also convert DSD audio from the computer to PCM audio for your DAC. The INT204 makes your trusted D/A converter DSD capable, with selectable sampling frequency and word length.

With the optional remote control, it is possible to control the audio volume in the digital domain. The remote control is purchased separately.

CLOCKING AND POWER
To ensure a high-quality transfer, the INT204 includes an internal clock generator for low-jitter performance.

It uses dual power sources — both USB bus power from the computer and its own included power supply. This means the input and output sections can be separately powered and thus galvanically isolated for low-noise performance.

DIGITAL INPUT
USB type B.

DIGITAL OUTPUTS
(1) BNC connector
(1) RCA connector
(1) XLR connector
Word-length up to 24 Bits
Supported sampling frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

SYNCHRONIZATION
The sampling frequency is internally generated.
Supported sampling frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, DSD64, DSD128.

DSP ALGORITHMS
Conversion from DS64 or DSD128 to PCM at 88.2 kHz or 176.4 kHz and 16 Bits or 24 Bits.
Conversion from 352.8kHz to 176.4kHz and 384kHz to 192kHz.
IR controlled volume control with dithering for optimum audio quality.

POWER SUPPLY
An external power supply is included with the purchase. The INT204’s power requirement is 6-9V at 0.15A.

DIMENSIONS
Depth: 16.5 cm / 6.5 inches
Width: 10.5 cm / 4.13 inches
Height: 4.4 cm / 1.73 inches
Height with feet: 4.1 cm / 1.61 inches
