Esoteric N-05XD Network Audio Player

£11,650.00

£9,708.33 Exc. VAT |

Finish:

Description
Specifications
Customer Reviews (0)

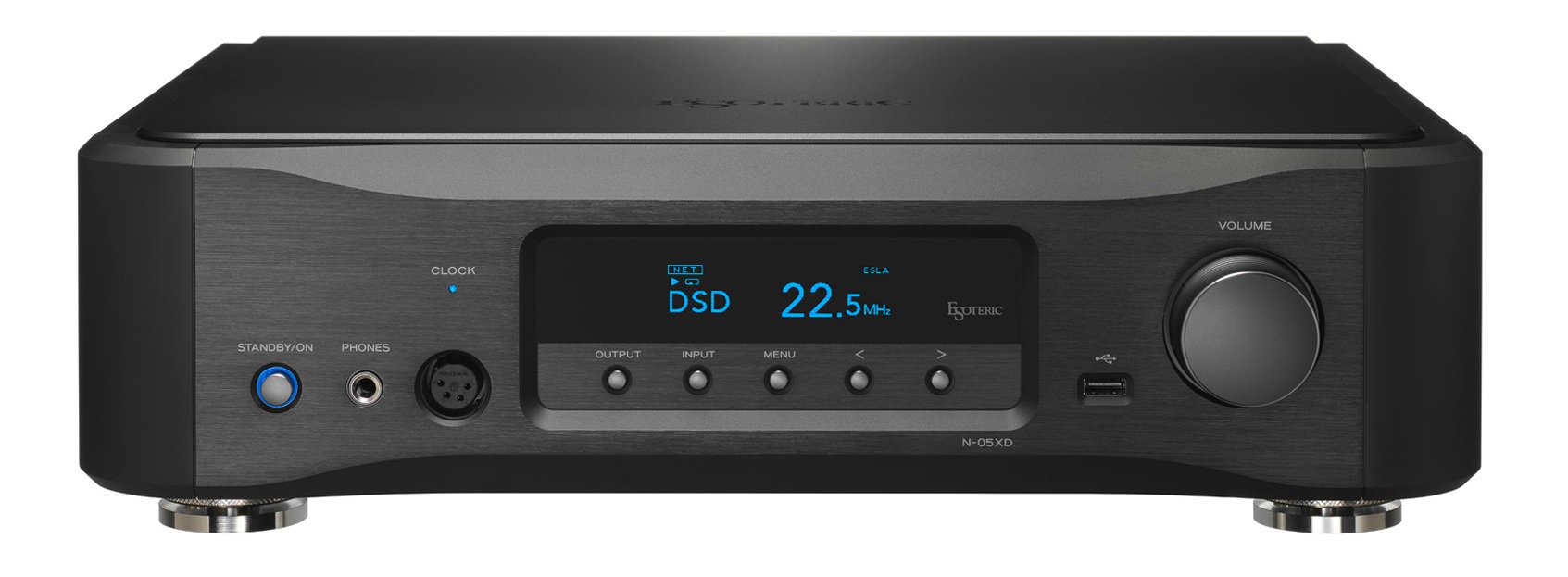

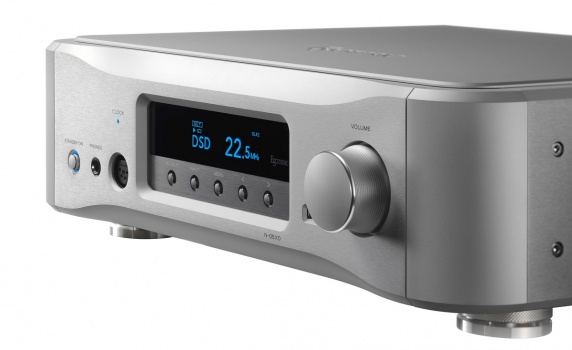

Esoteric N-05XD Network Audio Player

Starting new audio style with network, with the Master Sound Discrete DAC that invites you to a new digital audio world, an attenuator system that maximises potential of your speakers and power amplifier, digital and analogue inputs, and preamplifier that settles in the middle of the system. A network circuit that audio manufacturer designs, exclusive for music playback.

Accommodating a linear-power driven network circuit that employed on the N-01XD, expressing more musical detail on network sources with natural power supply regulated by dedicated power transformers, supporting various Internet streaming services.

Features:

Digital inputs: XLR × 1, RCA × 2, Optical × 2, USB audio, ETHERNET, USB port for flash drive × 2, Bluetooth®
Analog inputs: XLR × 1 pair, RCA × 1 pair
Analog outputs: XLR/ES-LINK Analog × 1 pair, ES-LINK Analog pre-out × 1 pair, RCA × 1 pair
Clock input: BNC × 1 (10MHz)
Overall dimensions: 445 × 131 × 377mm (W×H×D, including protruding)
Available in Black or Silver

Digital audio inputs
XLR	1
Input signal formats
Linear PCM	32k to 192kHz, 16bit / 24bit (AES/EBU format)
DSD	2.8MHz (ES-LINK1, ES-LINK2, DoP format)
RCA	2
Input signal formats
Linear PCM	32k to 192kHz, 16bit / 24bit (IEC60958 format)
DSD	2.8MHz (DoP format)
Optical	2
Input signal formats
Linear PCM	32k to 192kHz, 16bit / 24bit (IEC60958 format)
DSD	2.8MHz (DoP format)
USB	1 (USB B connector)
Input signal formats
Linear PCM	44.1k to 384kHz, 16bit / 24bit / 32bit
DSD	2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz
ETHERNET	1 (1000BASE-T)
Input signal formats
Linear PCM	44.1k to 384kHz, 16bit / 24bit / 32bit (stereo) • Only integer format file supported
DSD	2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz (stereo)
Supported file formats
PCM Lossless	FLAC, Apple Lossless (ALAC) , WAV, AIFF, MQA
DSD Lossless	DSF, DSDIFF (DFF) , DoP
Compressed audio	MP3, AAC (m4a container)
USB DRIVE	2 (Front, Rear)
Supported file system	FAT32, exFAT, NTFS, Single partation, USB2.0 or later recommended
Maximum power suppoy	0.5A
Input signal formats
Linear PCM	44.1k to 384kHz, 16bit / 24bit / 32bit (stereo) • Only integer format file supported at 32bit
DSD	2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz (stereo)
Supported file formats
PCM Lossless	FLAC, Apple Lossless (ALAC) , WAV, AIFF, MQA
DSD Lossless	DSF, DSDIFF (DFF) , DoP
Compressed audio	MP3, AAC (m4a container)
Analog audio inputs
XLR	1 pair (L/R)
RCA	1 pair (L/R)
Analog audio outputs
XLR/ESL-A	1 pair (L/R)
ESL-A PRE-OUT	1 pair (L/R)
RCA	1 pair (L/R)
Bluetooth® section
Version	4.0
Supported profile	A2DP, AVRCP
Supported A2DP codec	LDAC, LHDC, aptX™ HD audio, aptX™ audio, AAC, SBC
Headphone out section
Balanced	4-pin XLR × 1
Unbalanced	6.3mm Standard Phone jack × 1
Clock sync section
BNC	1
Input frequency	10MHz (±10ppm)
General
Power
	AC 120V, 60Hz
	AC 220 – 240V, 50Hz
Power consumption	38W
Overall dimensions (W×H×D)	445 × 131 × 377mm (including protrusions)
Weight	13.8kg
