Monitor Audio C2M-T2X Creator Series In-Ceiling Speaker
Zoom  Zoom
 Monitor Audio C2M-T2X Creator Series In-Ceiling SpeakerMonitor Audio C2M-T2X Creator Series In-Ceiling Speaker

Monitor Audio C2M-T2X Creator Series In-Ceiling Speaker

Available In-Store Only or Buy and Collect

£450.00
£375.00 Exc. VAT |  |

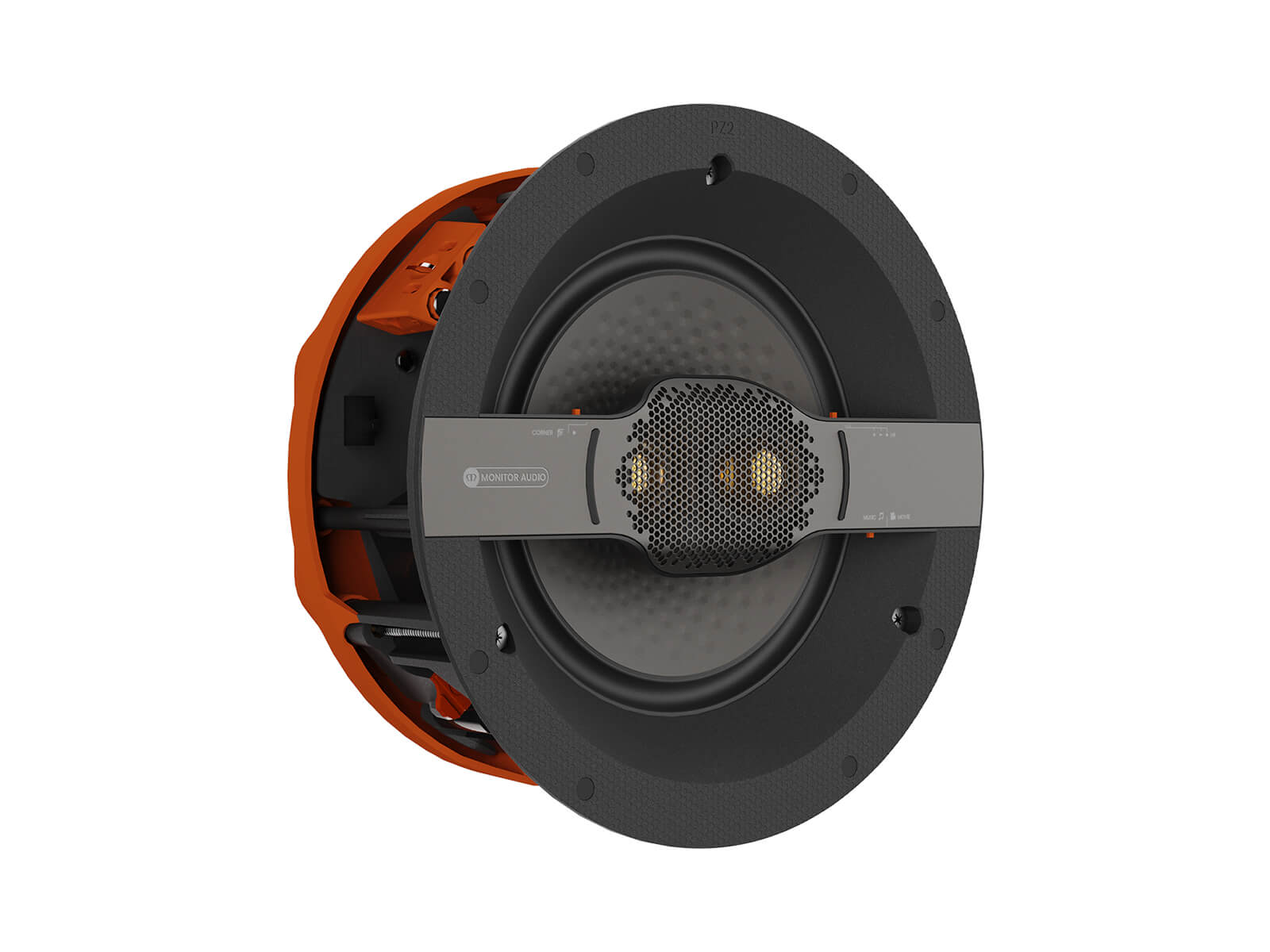

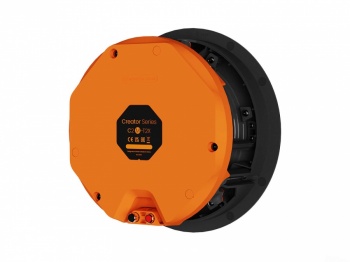

Monitor Audio C2M-T2X Creator Series In-Ceiling Speaker

Ideal for both music and movies, the medium-sized Tier 2 in-ceiling C2M-T2X allows the user to switch between Musicmode for wide dispersion and Movie mode for spatial effects. It is a two-way model featuring an RST II dual-coil bass driver and two C-CAM tweeters.

C2M-T2X has three modes:

  1. Cinema Mono FX (Di-Pole, tweeters out of phase)
  2. Mono Wide Dispersion (Bi-Pole, tweeters in phase)
  3. Single Speaker Stereo (two binding posts accepting connection to two separate amplifier channels)

C2M-T2X is ideal used as rear surround channels, within corridors or large areas where maximum coverage is required, and in compact areas where there isn’t space to fit two speakers.

Optional square or premium grille can be used with this model.


Key Features

  • Ideal for installations where pristine acoustic performance is required.
  • Switchable design for three modes
  • Two-way design
  • 2 x 1" (25 mm) C-CAM tweeters with UD Waveguide II for lifelike sound
  • 1 x 7" (178 mm) RST II dual-coil bass driver for pristine mid-range and full bass
  • Patented Quik-Link speaker cable connector for quicker installation
  • Tri-Grip II for easy and secure fitment

System Format

2–Way

Channels

1 (Mono)
2 (Stereo)

Frequency Response, Installed (-6dB)

35 Hz – 30 kHz​

Nominal Impedance

4 Ohm (Mono)
8 Ohm (Stereo)

Minimum Impedance (20Hz to 20kHz)

3.4 Ohm @ 15 kHz (Mono)
6.8 Ohm @ 15 kHz (Stereo)

Sensitivity (2.83Vrms@1m, Installed)

86 dB

Maximum Peak SPL* (single speaker @ 1m Z-Weighted)

(Mono) 114 dB

Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)

150 W (Mono)
2 x 75 W (Stereo)

Recommended Amplifier Power (RMS into 8 OHM, Music Signal)

40-150 W (Mono)
2 x 75 W (Stereo)

Drive Unit Complement

1 x 7" (178 mm) RST II dual-coil bass driver
2 x 1" (25 mm) C-CAM tweeter

Crossover Frequency

LF/HF: 2.25 kHz

Mounting Depth

99 mm (37/8")

Cut-Out Hole Diameter

212 mm (83/8")

External Dimensions (Including Grille (H x W x D))

242 x 242 x 103​ mm (91/2 x 91/2 x 44/16")

Weight (each)

2.1 kg (4 lb 10 oz)

Pre-Construction Bracket

CM-B

Cabinet Finish

Matt black & Orange​ & Bronze

Sold As

Single Unit

Corner Switch

On/Off

HF Switch

- /0/ +

Music/Movie Switch

Music/Movie

Mono/Stereo Switch

Mono/Stereo
