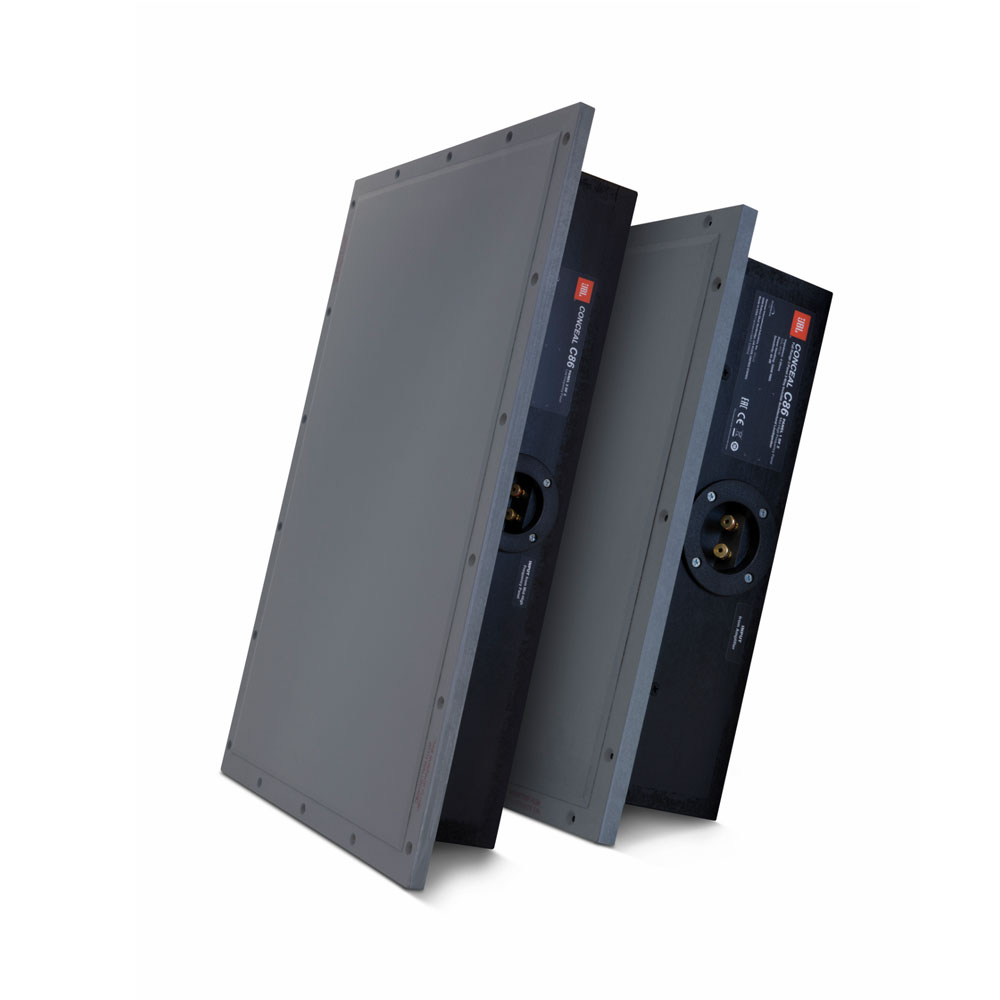

JBL Conceal C86 Architectural Loudspeaker

Features:

• 3-way, dual panel design, with a separate LF panel and a 5-driver 2-way MF/HF panel
• Recommended Amplifier Power 50 – 200 WRMS
• Impedance 4 ohm
• Loudspeaker Sensitivity 84 dB/1W/1m measured in-room
• Frequency Response 45 Hz – 20 kHz (-6 dB) measured in-room
• Mid-High Frequency Panel Dimensions 302mm H x 403mm W x 98mm D
• MF/HF Panel Cut-out Dimensions 305mm H x 406mm W
• MF/HF Panel Mounting Depth 86mm
• Low Frequency Panel Dimensions 559mm H x 403mm W x 98mm D
• LF Panel Cut-out Dimensions 562mm H x 406mm W
• LF Panel Mounting Depth 86mm
