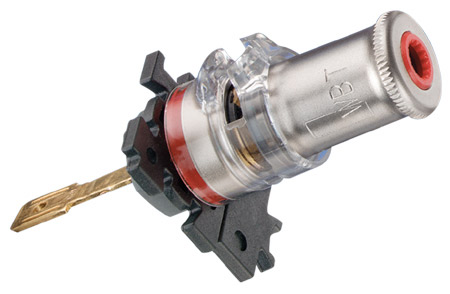

WBT-0710 mC Nextgen Pole Terminals
Zoom  Zoom

WBT-0710 mC Nextgen Pole Terminals

£91.17 Exc. VAT |



WBT-0710 mC Nextgen Pole Terminals

nextgen™ - a new generation of connectors from WBT

Thanks to the separation of signal transmission and mechanical stability, it is now possible to use optimum materials for the first time. Signals are transmitted using high-purity copper, one of the best electrical conductors. Copper has severe mechanical limitations, however, and its use is only permitted by an ingenious combination with high-performance plastics. The copper surface is naturally gold-plated to prevent corrosion.

Moreover, the soul of the new binding post WBT-0710 Cu mC is of one-piece design, removing all unnecessary transition resistance. The signal conductor is embedded in a matrix of fibre glass and mineral reinforced plastic and equipped with an anti-magnetic stainless steel strut for perfect strain relief. An additional elastomer damping ring keeps oscillations away from the contact level and successfully suppresses any kind of contact microphonics.

The design principle means that this construction has an electrical insulating effect. Decorative brass elements give the WBT-0710 nextgen™ its attractive appearance and make it pleasant to the touch without impairing electrical safety. As a result, the component meets all the relevant standards and safety regulations.

External connection

The ingenious angling of the signal conductor permits secure connection of spades, banana plugs and crimped cable ends.

Internal connection

Solder lugs that can be folded over if needed. WBT recommends the surface-friendly silver solder WBT-0800 (see also solder connection).


Conductor cross section (max.): outside: 10 mm² (7 AWG)
inside: 4 mm² (11 AWG)
Connection technology: outside: 4 mm banana plug, spades (6 - 8 mm spade), crimping
inside: soldering or 6.3 mm flat push-on cable shoe
Wall thickness: from 0.9 to 6.5 mm (from 4.5 mm without the puzzle plate)
Identification: red, white or black
