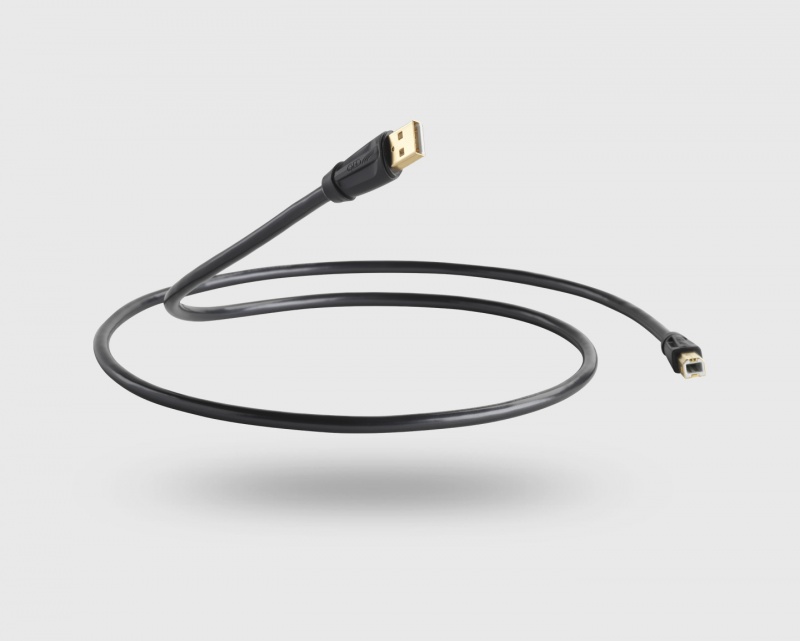

QED Performance Graphite USB A-B Digital Cable
Zoom  Zoom

QED Performance Graphite USB A-B Digital Cable

  (1 Review)
£17.95
£14.96 Exc. VAT |


|








QED Performance Graphite USB A-B Digital Cable

Performance USB is designed specifically for the transmission of High Definition digital audio between USB components.

This cable meets or exceeds the USB 2.0 specification. Designed for the transmission of High Definition digital audio between USB components. For example, your PC or MAC and a DAC. Ideal for audio applications up to 24 bit/192kHz.

Jitter produced by a USB can be transmitted in audio and affect performance which is why it is vitally important to transfer a low jitter signal. Performance USB is designed specifically for the transmission of High Definition digital audio between USB components. For example, your PC or MAC and a DAC.






Specifications





  • 99.999% Oxygen Free Copper twisted pair of 7/0.127mm 26AWG stranding insulated with a low density Polyethylene (LDPE) +skin high performance dielectric and screened using an aluminium mylar wrap conductive side out



  • Power and Ground: Both of 7/0.2mm 22AWG



  • 99.999% Oxygen Free Copper with PVC insulation



  • All four conductors are dual screened wi8th al/my wrap and a 90% shield braid of 5 nines copper



  • Performance Ethernet is sheathed in a flexible pearlescent graphite PVC outer jacket



  • Impedance 90Ω ± 15 Ω



  • Delay skew <100ps/m



  • Insulation Resistance >100MΩ



  • Attenuation: 5.8dB at 400MHz








Average Rating (1 Review):
Write a Review and share your opinions!

Rating:
Great no-brainer cable
Tuesday, 25 June 2019  |

If you're looking to replace your generic USB cable, but aren't into all the audiophile cable madness, look no further. Great heavy-duty quality at a great price.

Was this helpful to you?  Yes  /  No

This review has not been appraised.
