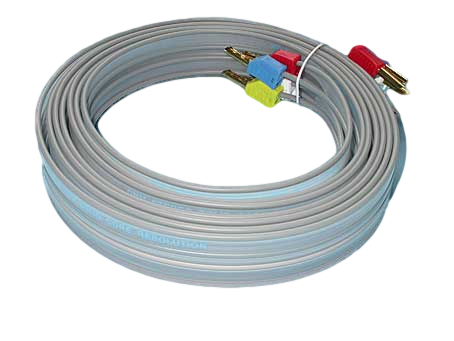

DNM Solid Core Resolution Speaker Cable (Unterminated)
£32.49 per metre. Please note the banana plugs are not included
DNM Design is pleased to announce a new speaker cable :-
Designed for use with normal-to-low sensitivity loudspeakers DNM Resolution matches the audio performance of DNM Precision 2 but it can be used with larger audio systems, longer cable runs, speaker sensitivity below 89dB/watt and more powerful amplifiers.
The ribbon dimensions are set to reduce the capacitance and slightly increase the inductance, to ensure amplifier stability with longer runs of cable. The result is a stereo ribbon 25.5mm wide and 2.7mm thick with the same facility for easy installation as the Precision cable but with a much higher performance in medium to low sensitivity speaker systems.
The DNM Resolution ribbon is 25.7mm wide x 2.7mm thick and it contains four 1.3mm diameter high purity copper conductors. A single length of DNM Resolution connects two stereo speakers or one bi-wired speaker. Easy-separation lines in the ribbon make cable preparation very easy.
The unique design of the DNM ribbon places the conductors above the ribbon’s centre-line to project the magnetic field through air rather than insulation. The cable’s structural Q is low because the easy-separation lines also reduce the ribbon’s stiffness.
Visually DNM Resolution is equally advanced, with a semi-transparent outer ribbon and coloured insulation on the conductors but a third layer of neutral-grey insulation makes the ribbon blend into the background. The insulation colours are visible only when needed - as the insulation is stripped.
The electrical parameters of DNM Resolution, its capacitance, inductance and resistance, are aligned to improve the driving amplifier’s stability and sound quality.
The characteristic impedance of DNM Resolution is accurately matched to (optional) high frequency termination networks (HFTN’s). HFTN filters greatly improve performance when the cable is connected to amplifiers using negative feedback. They can be added at each end of the cable when the ultimate audio performance is required.
The recommended way of using the new DNM Stereo Solid Core Speaker cable is as follows :-
The cable directionality can be determined by noting that the print runs in the same direction as the signal.
At the amplifier end separate the cable just enough to allow the plugs to be fitted and plugged into the amplifier.
Then try to run the ribbon complete without separating it as far as possible towards the speakers to gain the full performance benefit of the fixed spacing of all the conductors. Run the cable along the planned path to the furthest speaker before cutting it to length. Then separate the cable ribbon into the two channels back to the point midway between the speakers to allow connection to the left and right speakers.
Before ordering DNM Stereo Solid Core Resolution cable please read these brief notes.
To single-wire a stereo speaker system, order only one length. For example for a 3.0m pair just order 3.0m To place the order, enter the length required (To the nearest metre) to reach the speaker furthest away from the amplifier. The speaker closer to the amplifier is connected by unzipping the cable just enough to separate the ribbon back to a point midway between the speakers. See the datalink sheet below
http://www.dnm.co.uk/datasheets/stereocable_install_and_drawing.pdf
To bi-wire a stereo speaker system. For example for a 3.0m pair just order 6.0m To place the order, enter the length required (To the nearest metre) to reach the speaker furthest away from the amplifier. The speaker closer to the amplifier is connected by unzipping the cable just enough to separate the ribbon back to a point midway between the speakers.. See the datalink sheet below
http://www.dnm.co.uk/datasheets/stereocable_install_and_drawing.pdf
See the illustration of how to separate the speaker cable ribbon for use.
Compare the size and specification of all three DNM Stereo cables
More technical details about DNM Stereo Solid Core cables
