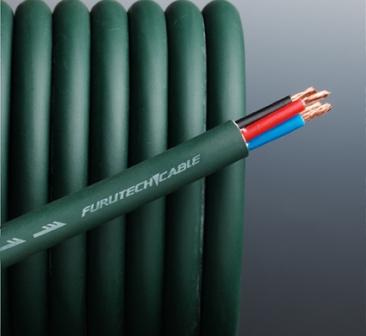

This speaker cable incorporates different stranding structures. The Blue and Black Treble wires use a rope-lay stranding method. The White and Red Bass wires use a concentric stranding process.
・Conductor-1: α(Alpha)Conductor,μ-OFC (21/0.15mm+6/46/0.10mm(rope-lay stranding))・Insulation: Poly Propylene(for Treble，Blue、Black)・Conductor-2: α(Alpha)Conductor,μ-OFC (7/5/0.3mm(concentric stranding))・Insulation: Poly Propylene (for Bass，Red、White)・Sheath: Flexible PVC (Dark Green)・Overall Diameter: 11.0 mm (≒13 AWG) / (2.5 sq.mm)・Electrical Properties Max. Conductor Resistance: 10.9Ω/km(for Treble) Max. Conductor Resistance: 10.20Ω/km(for Bass) Dielectric Strength: AC 500 V/1min. Min. Insulation Resistance: 1000 MΩ.km Capacitance (for Treble): Approx. 70 PF/M Capacitance (for Bass): Approx. 85 PF/M
I bought this cable for use as a custom subwoofer cable with as it has 4 conductors for bi-wiring 2 x bass and 2 x treble, So I doubled up the treble conductors for the ground connector and used the bass conductors for the signal.Immediately I hear improved bass response from my subwoofer, it's early days, however at £22/m its a sound investment.
Was this helpful to you? Yes / No
2 of 2 people found this review helpful.
