SME Model 15A Turntable With SME 309 Tone Arm and Transfiguration Axia Cartridge - Pre Owned

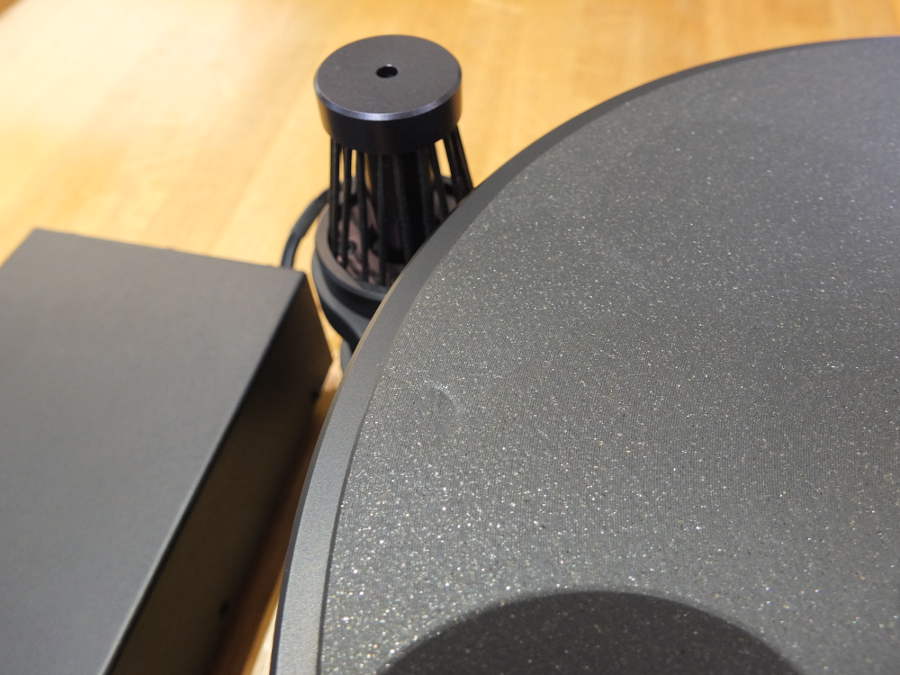

Stunning condition. Complete with original packaging and instruction book. Small indentation on turntable mat (see photos). Slight dog ear to instruction book.
3 years old

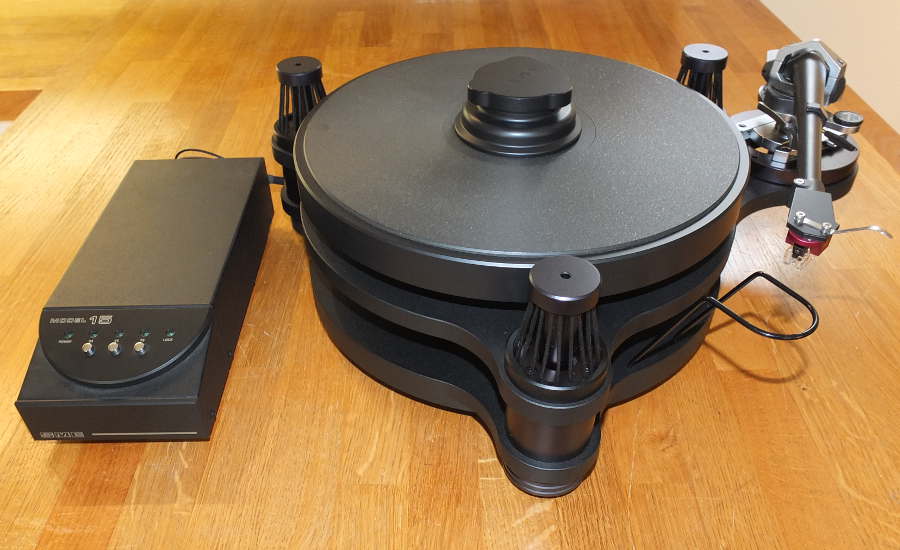

The model 15 sub-chassis is suspended on thirty purpose moulded 'O' rings and weighs, together with the platter, more than 11.0Kgs (24 Ib), thereby meeting the requirement of high density construction on which freedom from colouration depend.
Suspension is adjustable through trimming screws in each column and is used in conjunction with a gauge to give recommended settings or varied to suit individual requirements.
The suspension is further disciplined by a central fluid damper which controls the sub-chassis motion, offers a resistive ground path for acoustic signals, eliminates overshoot and gives almost zero 'Q' recovery.
The platter is machined from aluminium alloy and weighs over 4.6kg (10 Lb). It is extensionally damped, the top surface being diamond-turned with a fine scroll. This method of finishing upsets a myriad of tiny fibres which interface with the underside of the record. A substantial clamp operating on the reflex principle ensures the largest possible platter contact even appreciable when the record warp is present.
The main spindle is 19mm (3/4") machined from high chrome tool steel, ground super finished and supported in a sealed housing with individually fitted sintered bronze bearings of generous propostions needed to support the platter. The Model 15 motor conforms to the highest standards of silent running in a turntable.

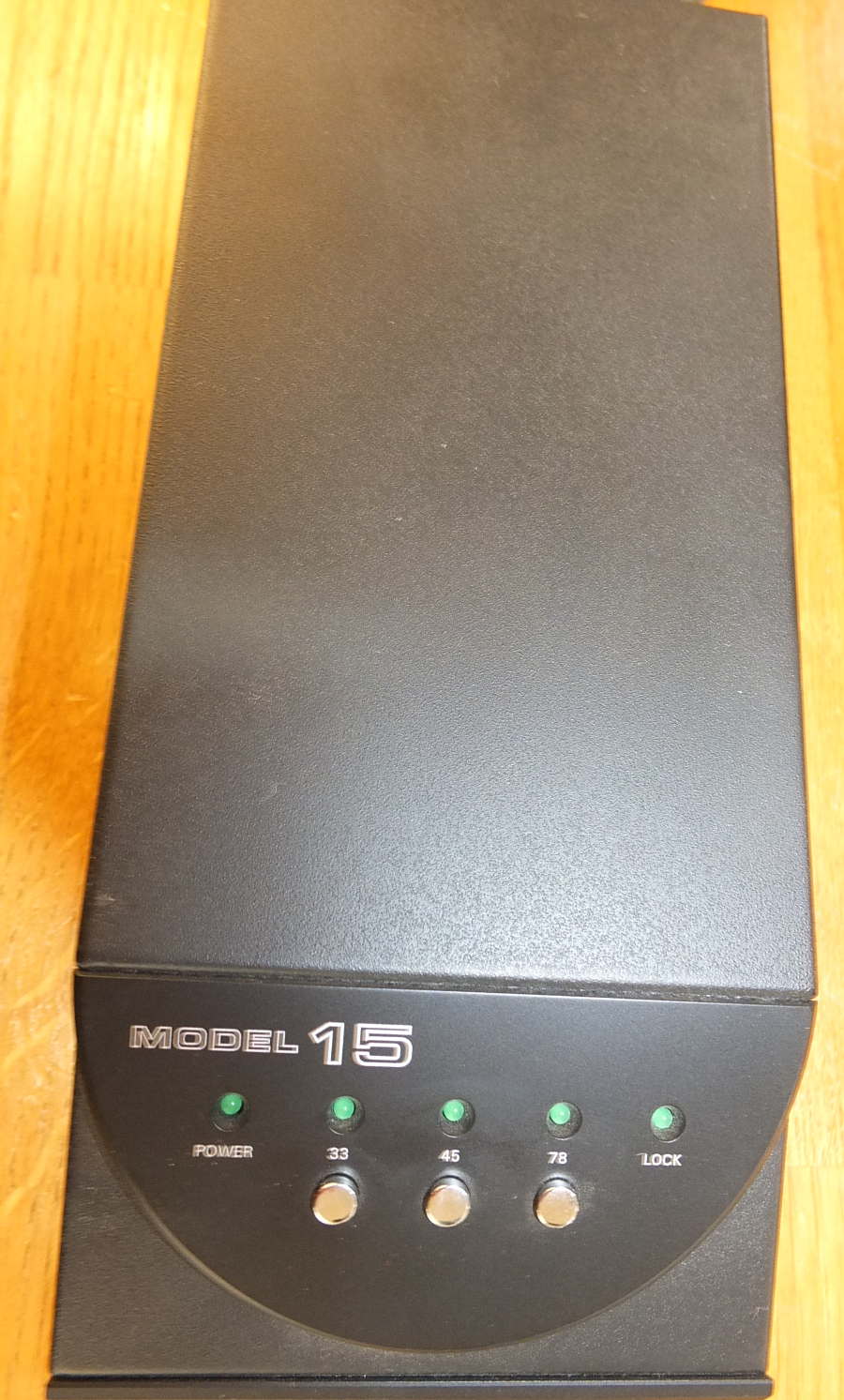

The turntable is driven by a 3-phase, brushless outrunner inductance motor with 8-pole Neodymium magnets and 3 integrated Hall position sensors. The electronic motor controller uses a high performance microporocessor, optimised for motor control. Closed loop speed control is implemented using a proportional plus (PI) algorithm. Fine pitch speed adjustment allows increments/decrements of +/- 0.01% of the selected speed. Speed ranges: 33.3, 45 & 78 RPM.
