SME Model 60 Turntable
Zoom  Zoom
SME Model 60 TurntableSME Model 60 TurntableSME Model 60 Turntable
SME Model 60 TurntableSME Model 60 Turntable

SME Model 60 Turntable

PLEASE NOTE. DUE TO TERRITORIAL RESTRICTIONS WE CAN ONLY SELL SME TURNTABLES TO UK CUSTOMERS

£49,950.00
£41,625.00 Exc. VAT |


|

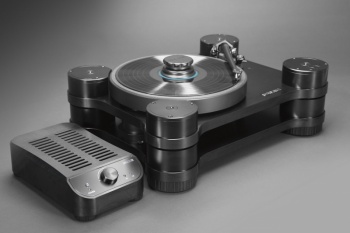

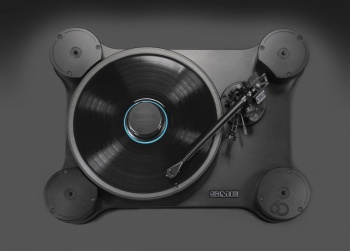

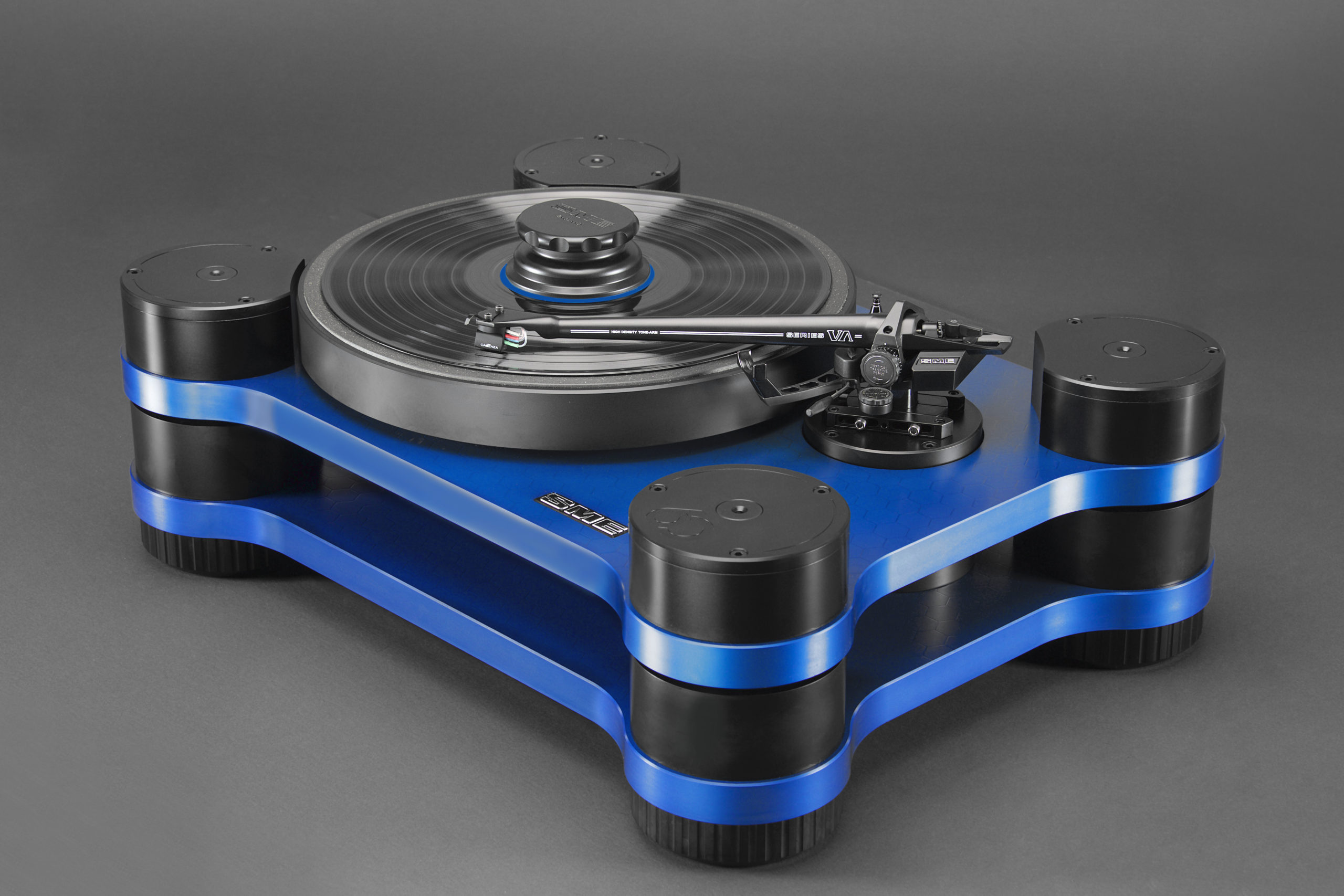

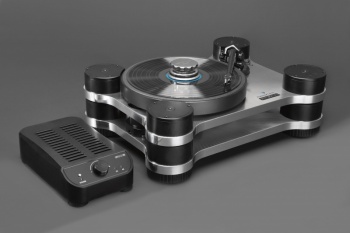

SME Model 60 Turntable

The Model 60 is the most technically advanced SME turntable ever made, evolved from 75 years of engineering excellence, innovation and perfection, delivering precise and pure audio reproduction.

Extremely high build quality, close tolerance precision engineered componentry, striking design and a range of none painted uniquely engineered finishes.
Introduced 60 years after SME entered the elite high end audio world, the Model 60 is far superior than the highly credible Model 30 which has been the reference precision turntable for over 3 decades. The new flagship is an entirely new turntable design with clever engineering and technological advancement.

Design features include: de-coupled adjustable feet with multipoint isolation, an intelligent suspended suspension system with horizontal and vertical control, hydraulically dampened main bearing, acoustically treated main chassis, sub-chassis and platter, sophisticated new generation drive system with highly accurate speed control, AC motor and independent power transformer.

The Model 60 is equipped with the new Series VA tonearm which is an advanced version of the famous Series V tonearm which has been extensively sonically improved by use of a non-metallic tonearm CNC machined from an advanced polymer resin material with high density and high rigidity properties.

The Series VA tonearm tube is acoustically inert with a significantly reduced resonance signature, optimised effective mass and a wide cartridge balance weight range

DRIVE SYSTEM & SPEED RANGE

The turntable is driven by a custom made bi-phase AC synchronous motor. The speed control unit uses a dedicated DSP engine to generate two independent pure mathematical sine waves which provide total control of frequency, phase relationship and amplitude. These in turn are matched (tuned) to the motor for accuracy to obtain the best possible performance. The output driver stage is a 2 channel, class AB Bi-polar design with low distortion and relay coupled directly to the motor. The entire design is implemented using high quality surface mount technology on a gold plated FR4 PCB.

The speed range is 33.33 and 45rpm with independent memory settings via a switched encoder.



WEIGHTS:
Turntable 48kg
Speed Control Unit 2kg
Power Unit 4.2kg
Boxed Shipping Weight 86kg

DIMENSIONS:
Turntable
Height 212mm (top of clamp)
Width 557mm
Depth 417mm

Speed Control Unit
Height 87mm
Width 170mm
Depth 295mm

Power Unit
Height 83mm
Width 190mm
Depth 243mm

Platter 330mm
Spindle to Arm 215.35mm
