Trichord Dino MK3 Phono Stage - Opened Box (With Standard Toroidal EU Schuko PSU)
Zoom  Zoom

Trichord Dino MK3 Phono Stage - Opened Box (With Standard Toroidal EU Schuko PSU)

With an all new fully aluminium case and a reduced noise level, Trichord have gone all out to bring this upgraded new Dino

£499.00
£415.83 Exc. VAT |


|

Trichord Dino MkIII Phono Stage Opened Box ((With Standard Toroidal EU Schuko PSU)

As new condition complete with packaging and instructions

The Dino Mk3 is a high performance phono amplifier which at an affordable price gives you tremendous value.

There are three options available to power the Dino Mk3 – the Toroidal AC supply, the ‘Dino+’ dc supply and the ‘Never Connected Dino+’ DC supply.

Designed for transparency and realism, this superb sounding amplifier is based on the fore-running Dino Mk1 and Dino Mk2 phono stages which have won many awards and accolades along the way.

Whether you have an ultra-low output Moving Coil cartridge or a high output Moving Magnet the Dino Mk2 will cope easily. A set of user friendly switches on the base of the unit allows you to simply adjust load and gain settings.

These settings are vital to match the amplifier to the cartridge and obtain the best sonic result. If your current phono stage only has a couple of options for this function, eg a MM/MC switch, then you are missing out on the ability to tune your system to it’s optimum.

An entire upgrade path exists for this product which allows you to improve performance each step of the way.

Two main items are required for operation – the Dino Mk3 phono stage itself and an accompanying power supply.

Start with the basic ac Toroidal Power Supply and work your way up in performance by upgrading to the ‘Dino+’ dc power supply, and ultimately to the ‘Never Connected’ dc power supply. An upgrade from the ‘Dino+’ to the ‘Never Connected’ is also possible by returning your unit to us to upgrade the electronics.

To further enhance the sonic performance of these dc power units an upgrade ‘High Performance Power Lead’ is available to replace the supplied dc power lead.

  • Fully compatible with all previous power supplies
  • Noise levels reduced by 4.5dB

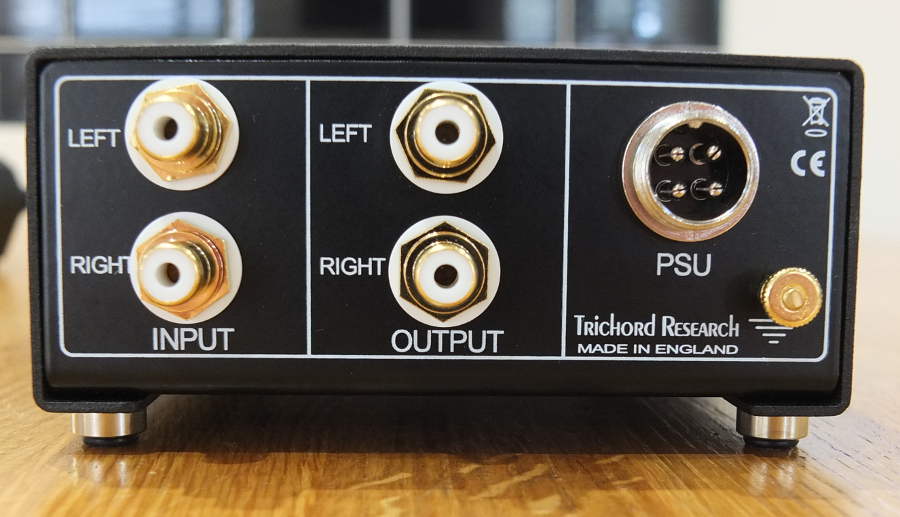

  • High quality PTFE gold plated phono connectors on rear panel
  • Re-designed circuit board with improved ground layout
  • New analogue output stage using OPA827 op amps greatly improve sound quality
  • Compatible with MM and MC cartridges

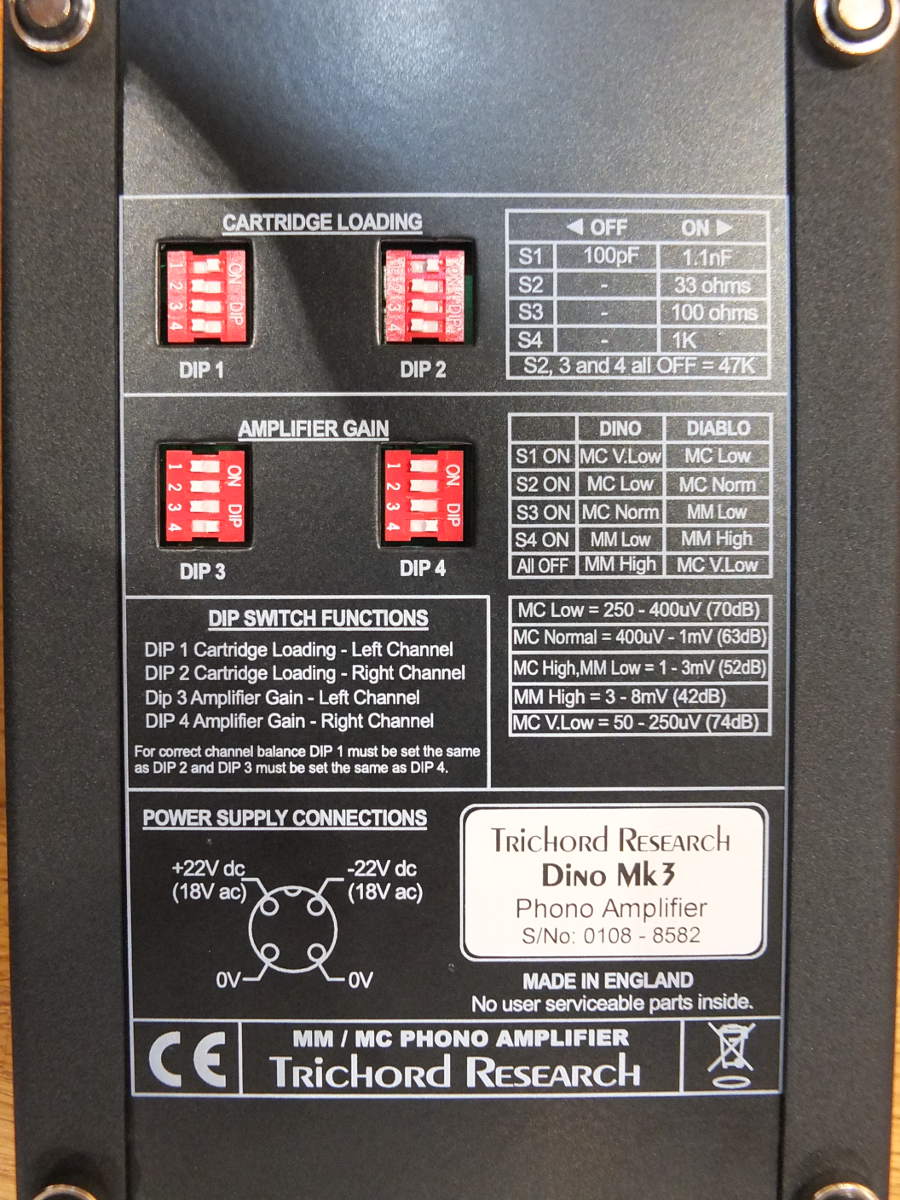

  • Gain and cartridge loading adjustable by easily accessible DIP switches



Toroidal AC Power Supply

This is the basic power supply and is provided as a low cost introduction.

Performance level will be more than adequate for many users, but you can upgrade at any time to the ‘Dino+’ power supply, or for ultimate sonic performance  - the ‘Never Connected Dino+’ PSU.

The ABS molded housing of the Toroidal power supply contains an in-line low noise 40VA transformer. AC current is fed to the Dino where it is rectified to DC and regulated with two high performance, wide bandwidth Super Regulators.

Specifications for the Dino Mk3 phono stage

Stereo phono amplifier for Moving coil and Moving magnet cartridges. Fully passive equalisation between two active gain stages.

Switch selectable cartridge resistance loading (DIP 1 and 2)

33 ohms For Moving Coil cartridges
100 ohms For Moving Coil cartridges
1000 ohms For Moving Coil cartridges
47,000 ohms For Moving Magnet and some Moving Coil cartridges

Switch selectable capacitance loading (DIP 1 and 2)

100pF For Moving Magnet and Moving Coil cartridges
1000pF For Moving Coil cartridges

Please refer to your cartridge specification for correct loading settings.

Switch selectable gain (DIP 3 and 4)

Cartridge Type Sensitivity
MC Very Low: 100uV to 250uV (74dB)
MC Low: 250 to 400uV (70dB)
MC Normal: 400uV to 1mV (63dB)
MC High/MM Low: 1 to 3mV (52dB)
MM High: 3 to 5mV (48dB)

RIAA reproduction characteristics

20Hz to 20,000Hz      +/-0.25dB

Output voltage: 0.5V at 1KHz

Power supply requirements

The Dino Mk2 can be powered from either an AC or a DC power supply.

AC requirements: two independent supplies of:         0v / 18v ac,        0v / 18v ac.
DC requirements: two independent supplies of:         0v /-22vdc ,      0v  / +22vdc

To avoid problems only use Trichord power supplies.

Dimensions and Weight

Overall case dimensions for Dino Mk2:        185mm x 58mm x 112mm (D x H x W)
‘Dino+’ PSU
NCPSU
Standard AC PSU
