Project 9cc Evolution Tonearm

Now in stock to fit Linn!

£604.17 Exc. VAT |


Project 9cc Evolution Tonearm

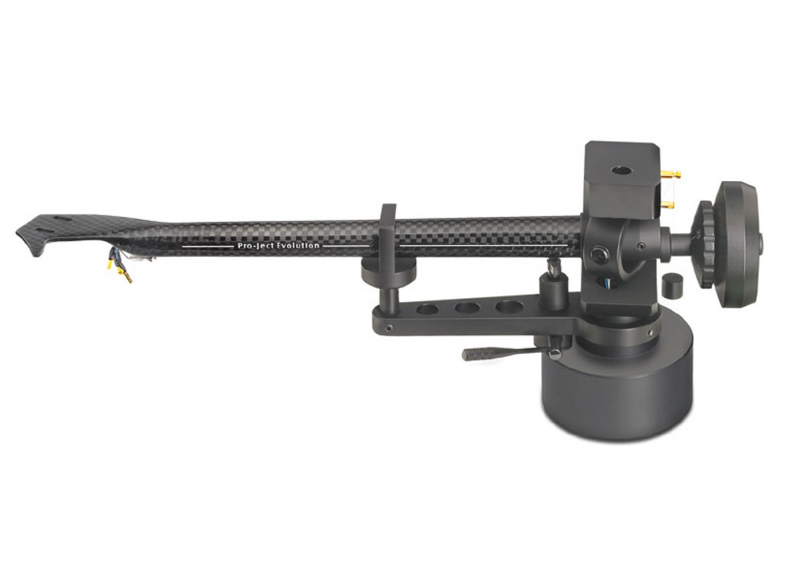

Pro-Ject's  9" precision tone arm with carbon-fibre armtube is efficiently designed to lead parasitic vibrations away from the cartridge into the mounting board which guarantees the precise tracking of the record grooves by the needle and also facilitates fine adjustment of vertical and horizontal tracing.

Now available in new fitting for Linn turntables (5-pin termination).

Key Features:

  • The headshell and armtube are fashioned from a single piece of carbon-fibre
  • Conical armtube avoids standing wave reflections
  • inverted bearing design with four ABEC7 spec ballraces
  • Arm bearing housing of solid ring type. The massive outside ring is open to avoid resonance
  • Sorbothane damped counterweight effectively counteracts unwanted resonances
  • Counterweight shaft lowered to record level reduces cantilever forces and dynamic wow when playing warped records
  • solid armbase permits accurate height adjustment of armtube and VTA (vertical tracking angle)
  • Single Screw fixing of armtube allows rotation for easy adjustment of needle azimuth despite fixed headshell
  • Straight armtube reduces toe-in error
  • Silicone damped armlift can be adjusted to suit arm height
  • The internal wiring consists of flexible high purity copper from the headshell right through to the gold plated phono sockets
  • Available with 5-pole standard socket, flying lead or terminal with phono sockets and earth screws

Technical Data:

Headshell:  0.5" (12.7mm) Standard
Mounting Distance: 212mm
Supplied Counterweight:  For Cartridges Weighing Between...
5-7g, 5g, 7-10g, 9-11g and 10-14g
Downforce Range:  10 - 35mN
Effective Length: 9" (230mm)
Effective Mass:  8g
Overhang:  18mm
Weight: 265g (Without Counterweight)
