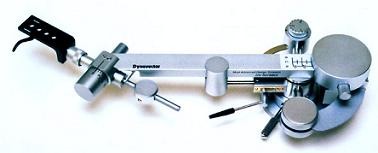

Dynavector DV 507 MKII Tonearm

Dynavector DV 507 MKII Tonearm

The Mk 2 version of the Dynavector DV 507 tonearm has made its long-awaited debut, building on the strengths of the original DV 507 which has enjoyed the highest reputation among audiophiles world-wide since its appearance in 1984.

The 507 is a beautiful tone arm, superbly crafted and a dream to set up and use. Its design is unique in allowing low inertia in the vertical axis (to accommodate record warp) and high inertia in the lateral axis. It is a superb performer, and unusual in not adding its own sonic imprint

As it is a bi-axis inertia controlled tonearm the DV 507, no matter the type of cartridge can trace the music signal grooves cut in the recording with extreme accuracy. The DV 507 also provides superb trackability on warped recordings. Azimuth adjustment now standard. Resolution and musical detailing are quite remarkable.

SPECIFICATIONS:

• Type Bi-Axis inertia controlled Dynamic and Eddy Current Damping Dynamic Balance type tone arm
• Overall length 306mm. With head shell: max 326 mm
• Effective length 241mm (i.e. tonearm pivot point to cartridge stylus point)
• Overhang 15mm
• Offset angle 21.5 degree
• Height 59mm lifts up to 92mm
• Height adjustment range 39mm-72mm at sub arm center
• Depth 36mm without connecting cable
• Optimum cartridge weight 15-35 grams, including headshell
• Horizontal tracking angle error -1.1 degree - +2.2 degree , 0 degree at inner band of record, 2.2 degree at outside
• Tracking force adjustment range 0-38 grams by 0.2 grams step
• Sensitivity Horizontal:less than 50 mgrams, Vertical:less than 40 mgrams
• Net weight 1,380 grams
• Output connection 5P connector
• Headshell connection EIA standards 4 Pin connector
• Accessary low resistance (0.046 ohms/m, 54pF/m) high quality arm cable,
• milled aluminium headshell weight 15.4 grams.
• mounting template for the arm
• overhang gauge for the headshell
