Van den Hul Snowline Speaker Cable Terminated
Zoom  Zoom

Van den Hul Snowline Speaker Cable Terminated

£62.99
£52.49 Exc. VAT |  |

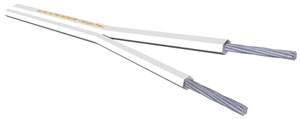

Van den Hul The Snowline Speaker Cable Terminated

  • Available with a range of termination options as shown above

The design aim of The SNOWLINE was to produce a very affordable twin lead loudspeaker cable with a good sonic quality despite its low price. The SNOWLINE is made of 2 conductor groups, each with 98 x 0.16 mm. strands. The total cross-section area per conductor is 1.97 mm²; close to AWG 14. The conductor material is a very high grade large crystal OFC with a dense pure silver coating. The resistance per lead is 0.88 Ohm/100 meter. The external dimensions are 8.5 x 3.4 mm.

The white jacket is made of HULLIFLEX ® 3, a superior insulation material exhibiting a very good mechanical protection and a high chemical stability. The two conductors have different insulator shapes: one is round and the other has two edges with type printing on the flat surface: the most simple polarity finder you can think of.

Specifications:

Cable Type: Twin conductor
Conductor Material: High purity dense Silver coated high purity OFC
Design Purpose/
Application Area(s):
Loudspeaker cable / Car and general hi-fi applications
Eff. Conductor Ø/Eq. AWG No./Strands: 2x(1.97 mm² / ~AWG 14 / 98)
External Diameter /
-Dimensions:
8.5 mm. wide; 3.4 mm. thick
Resistance 20 °C / 68 °F: 0.88 Ohm/100 m.
Capacitance: 69 pF/m.
Insulation / Dielectric Strength / Test Voltage: Jacket: HULLIFLEX ® 3 / 300 Vrms min.
