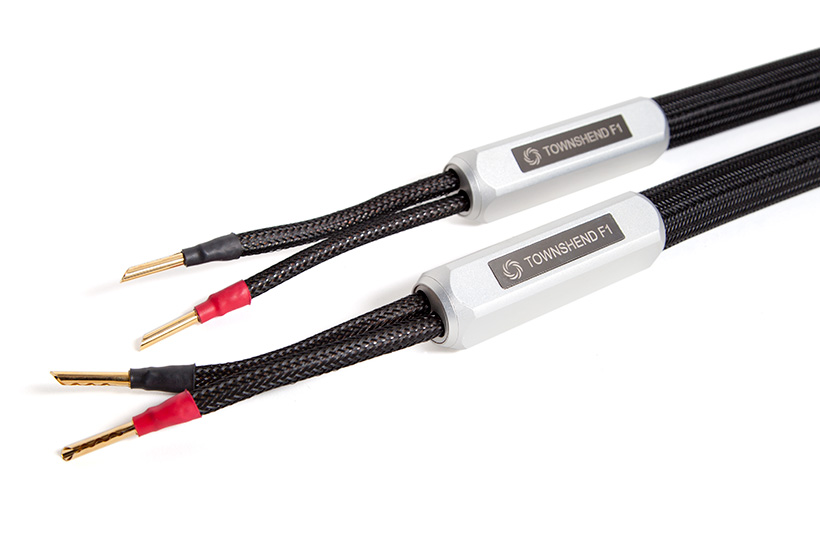

Townshend F1 Fractal Loudspeaker Cables
Zoom  Zoom
Townshend F1 Fractal Loudspeaker CablesTownshend F1 Fractal Loudspeaker CablesTownshend F1 Fractal Loudspeaker CablesTownshend F1 Fractal Loudspeaker Cables

Townshend F1 Fractal Loudspeaker Cables

  (1 Review)
£2,200.00
£1,833.33 Exc. VAT |  |


Townshend F1 Fractal Speaker Cables

Townshend Audio's Ultimate speaker cables

The F1 Fractal™ speaker cable combines Townshend’s remarkable Fractal™ proprietary treatment, with its impedance matched cable geometry to bring you the most transparent, accurate and captivating speaker cable they can envisage .

Continuing forty years of development, the F1 Fractal™ speaker cable is Townshend’s first new speaker cable in fourteen years!

Cable construction

Two Fractal™ treated pure copper strip conductors are spaced with ultra thin PTFE insulation with no adhesive and surrounded in flexible polyurethane polymer for truly comprehensive vibration damping. This entire construct is then encapsulated by a super-strong flexible conduit for ultimate protection, within hard wearing woven polyester braid.

Each end of the cable, incorporates house-keeping electronics to ensure stable operation with ALL amplifiers and features radio frequency interference reduction circuitry. All contained within a machined solid aluminium capsule, that also works as a transition between the twin-strips and the wire tails.

The cable may be terminated with lockable banana plugs, spades or the connector of your choice.

The F1 Fractal speaker cable is non directional and un-equal lengths may be used. It requires no burning-in and is available in lengths of up to 10 metres.

Specifications:

Electrical specs per metre
  • Inductance: 1.03uH
  • Capacitance: 0.91nF
  • Resistance: 10.1mohms
  • Leakage: 120 Mohms
  • Impedance: 30 ohms to match the typically high  impedance of speakers above 5Khz

Physical specs
  • Diameter: 22mm, tails 8mm
  • Colour: Black or White sleving, Silver ends
  • Bend radius: Minimum 300mm (12")
  • Compression strength: Greater than 150kg
  • Tensile strength: 50kg
