Sugden Sapphire FBA-800 Stereo Power Amplifier
Zoom  Zoom

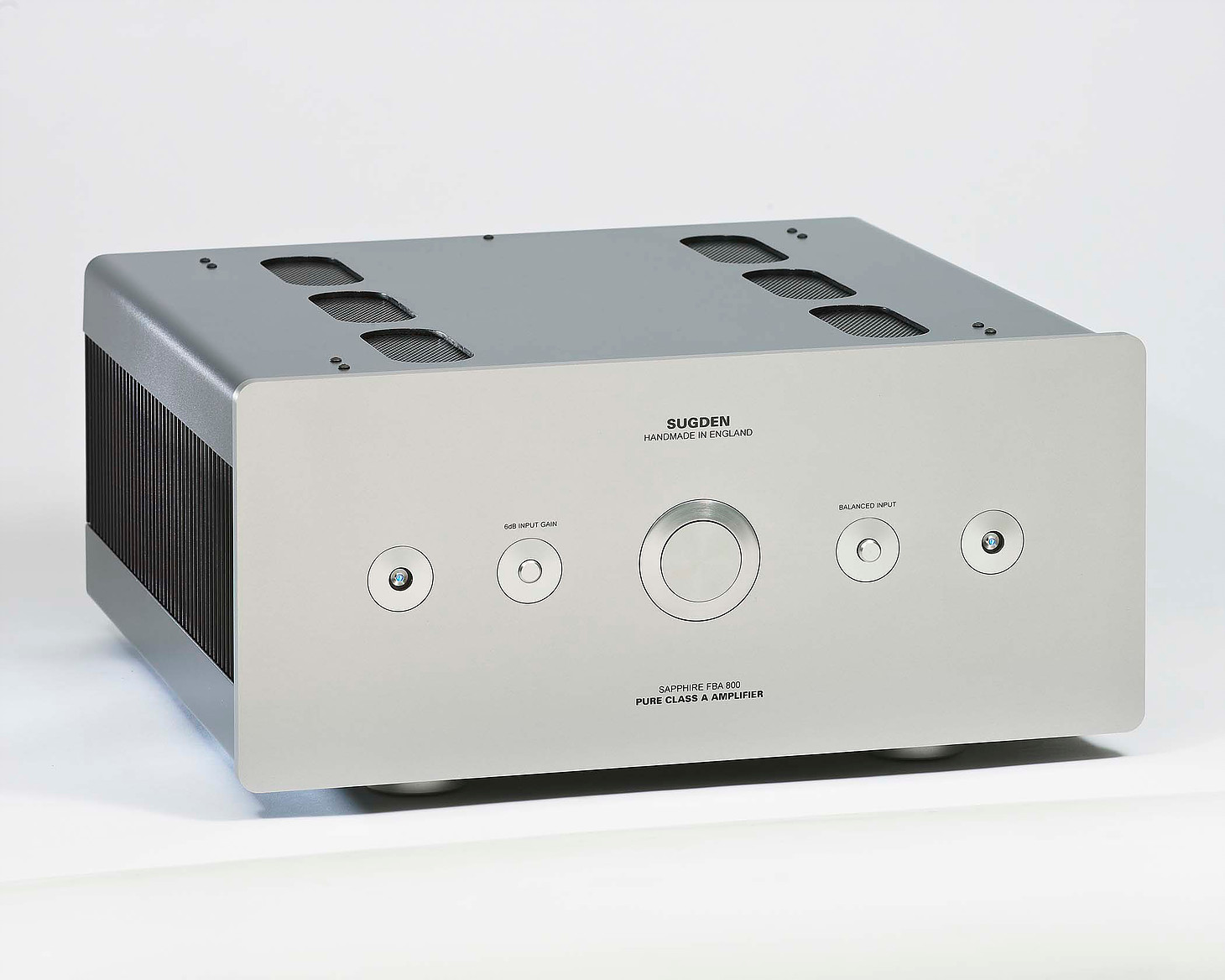

Sugden Sapphire FBA-800 Stereo Power Amplifier

£6,747.50 Exc. VAT |


Sudden Sapphire FAB-800 Stereo Power Amplifier

The FBA-800 Power Amplifier is a Stereo, Class A amplifier operating in the Bridged Mode with the Output earth Floating. Each channel consists of two amplifiers working as voltage amplifiers driving an output stage of Bridged Power transistors. The advantages are a low noise floor, better power output relative to the voltage rails (x2) and with the fixed current of the Class A mode, low output impedance and better load tolerance. The Amplifier has been designed for modern high efficiency loudspeakers.

The Power amplifier is D.C. coupled, with a servo lock, ensuring excellent low frequency detail. For safety purposes the amplifier includes a d.c. protection circuit. This circuit is statically switched using extremely low impedance Mosfet switching devices. This circuit also soft switches the Power Amp On and Off.

The power supply is a low impedance design with a single custom made bi-filar wound transformer, with four separate windings, The main smoothing capacitors for the output stage are specially developed for professional audio applications with excellent ripple characteristics and long life. The Four power transistors per channel in the output stages are multi emitter devices with an output capability of 26 amps per device.

The FBA-800 operates in the full balanced mode from the input of the unit to the output. This is accomplished by using the two amplifiers per channel in the balanced mode. For people who want to experience all the emotions of music this Amplifier is set completely in Class ‘A’. No compromise has been taken with the build quality of its electronic circuitry, electronic components, or case work. It includes gold-plated circuit boards, and high quality internal silver wiring all designed to give long life and the ultimate musical performance.

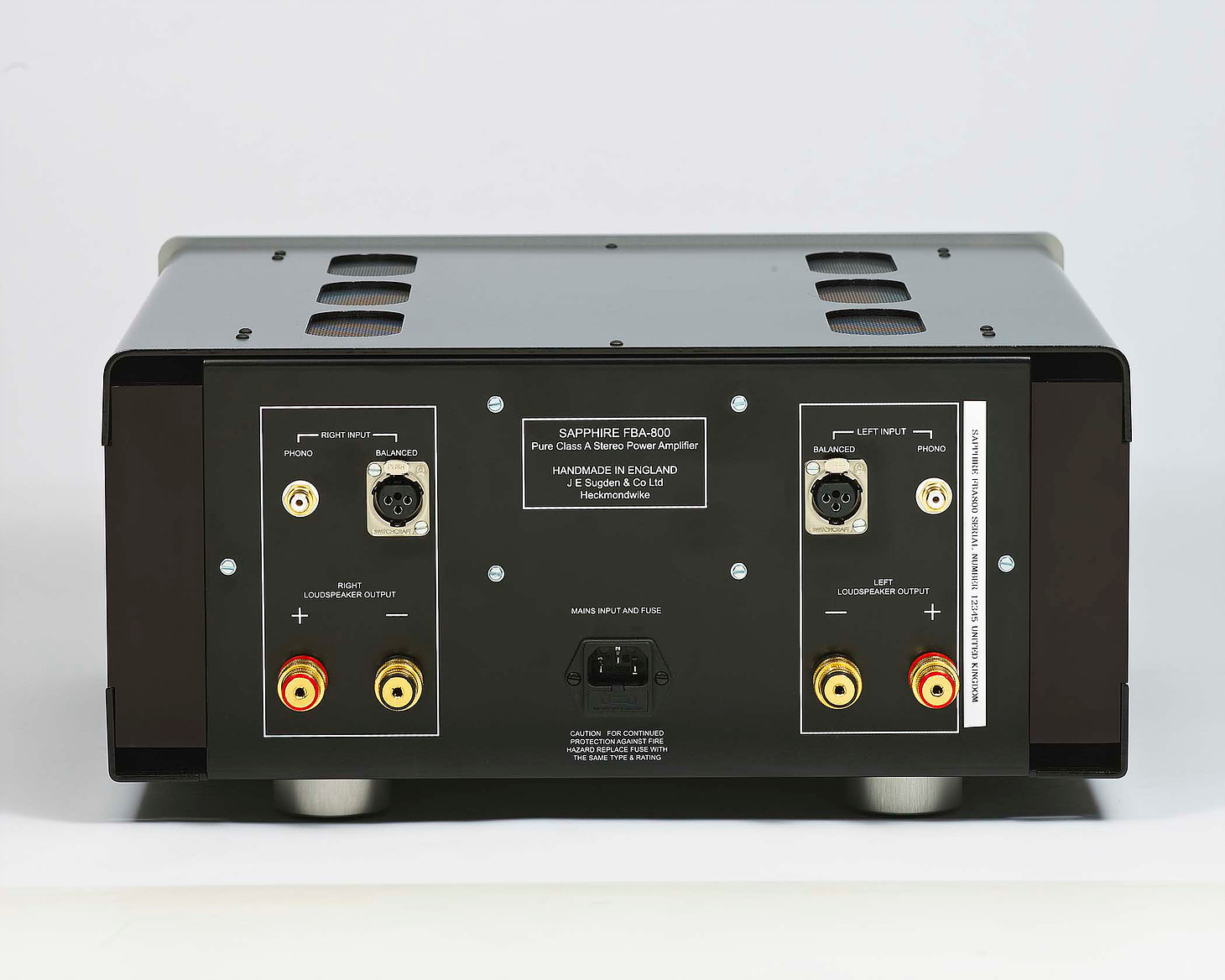

Inputs: Stereo line level, stereo balanced

Outputs: Stereo pair multi-way locking binding posts

Front Panel Gain Selector: 6dB input attentuation

Front Panel Input Selector: RCA or XLR

Input Sensitivity: 735mV for full output

Power Output: 40 Watts into 8 Ohms both channels working

Frequency Response: +/-0.0dB 20Hz-80kHz

Bandwidth: 6Hz-113kHz

Signal to Noise Ratio: >96dB

Distortion at 1 watt 1kHz: >0.05%

Net Weight: 25kgs

Dimensions: 206mm x 430mm x 460mm (hwd)

The manufacturer reserves the right to change specifications without notice.
