Sugden A21SE Stage Two Phono Amplifier
Zoom  Zoom

Sugden A21SE Stage Two Phono Amplifier

£860.00
£716.67 Exc. VAT |  |


Sudden A21SE Stage Two Phono Amplifier

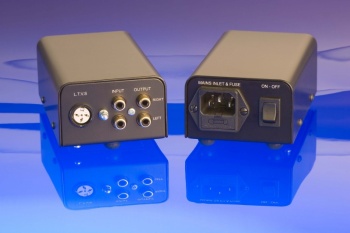

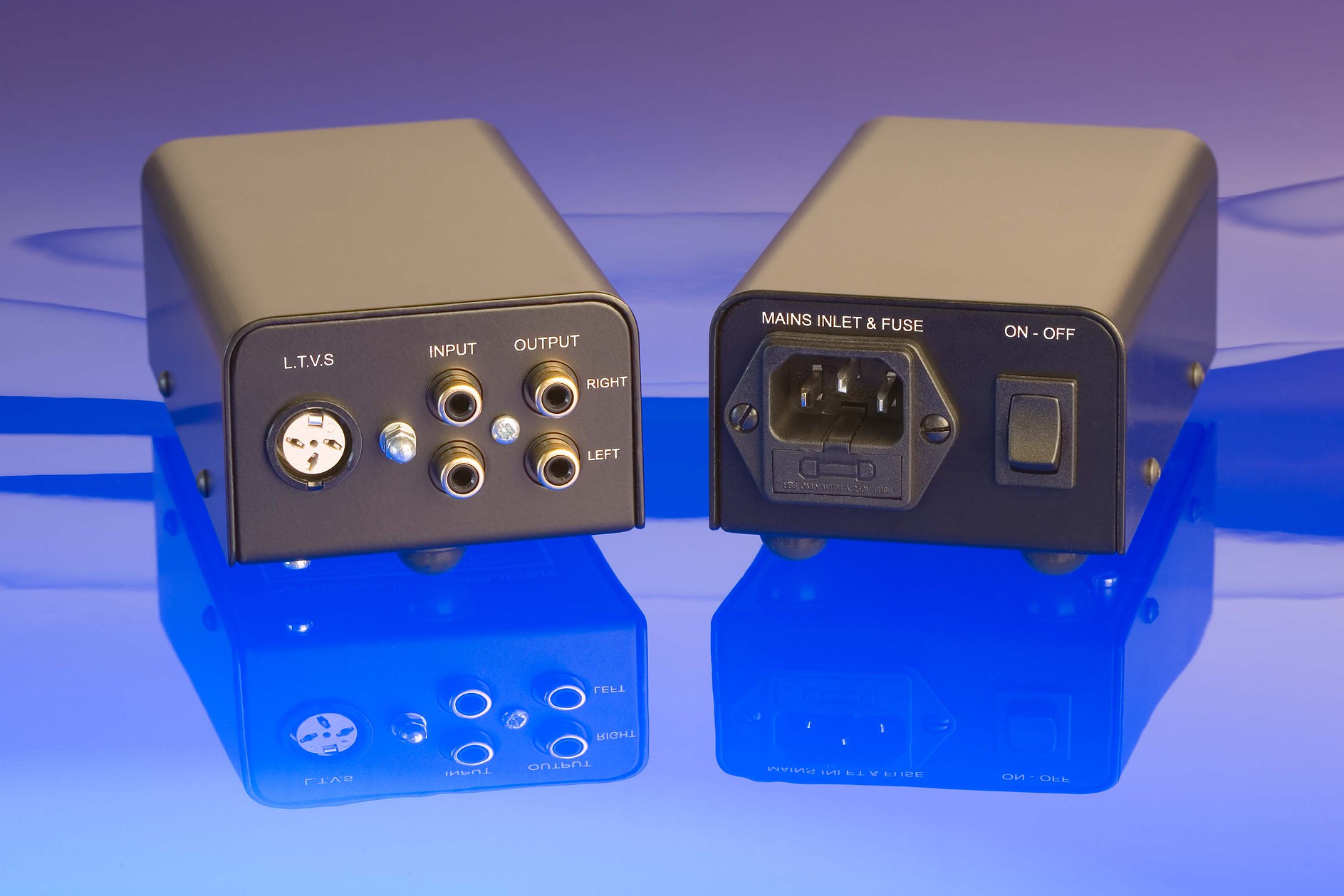

There are two dedicated phono amplifiers in the Sudden range, the A21SE Stage Two Phono and the Masterclass PA-4 Phono Amplifier, both are borne from our passion for vinyl. The Stage Two offers exceptional value for money with facilities to cater for both MM and MC cartridges. The design is a two box system separating the power supply from the amplifier. The phono amplifier has fixed loading for MM and 100 and 470 Ohm selection for MC. Our design criteria was to produce a product that was as neutral as possible, retaining a faithful and enjoyable analogue sound.







Inputs: Moving magnet, Moving coil, LTVS power in

Outputs: Fixed line level output

Gain adjustment: Internal selection for MM or MC

Load adjustment: Internal for MC 100 and 470 Ohms, MM fixed load 47k

Earth Terminal: Screw type

Mains power: External power supply

Input Sensitivity: MM 3.0mV MC 0.15mV

Output: 350mV

Frequency Response: +/-1.5dB 20Hz-20kHz

Bandwidth: 6Hz-280kHz

Signal to Noise Ratio: >64dB

Gross Weight (Packed): 2kgs

Dimensions: Phono amplifier 60x140x77mm (how), Power supply 60x140x77 (hwd)

The manufacturer reserves the right to change specifications without notice.
