Ortofon 530 MkII Stylus Replacement
Replacement stylus, recommended for the following cartridge models:
530 Mkll, 530, 530 P
Please note, all cartridges within the 500 range have the same stylus-fitting, so they can all fit the Stylus 510, Stylus 520, Stylus 530 and Stylus 540. The Ortofon Alpha, as found on some Pro-Ject turntables, can be replaced by one of the 500 range as well.
Technical Data:
- Frequency Range: 20 - 25,000Hz
- Frequency Response 20 - 20,000Hz: +2 / -3dB
- Tracking Ability at 315Hz: Typically 80µm
- Compliance, Dynamic, Lateral: 30µm
- Stylus Type: Nude Fine Line
- Stylus Tip Radius r / R: 8 / 40µm
- Equivalent Stylus Tip Mass: 0.3mg
- Tracking Force Range: 1.0 - 1.5g (10 - 15mN)
- Recommended Tracking Force: 1.5g (15mN)
- Tracking Angle: 20º
- Stylus Colour: Black
| |

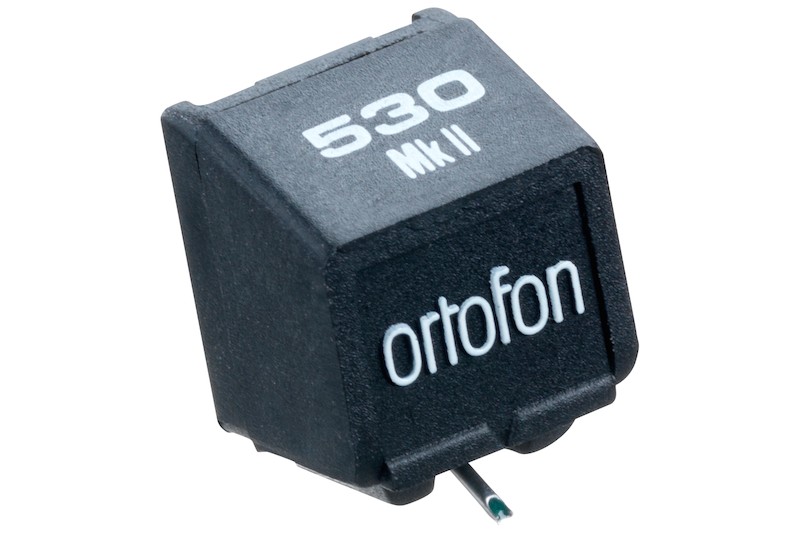

In some production runs, the Ortofon 530 stylus has been produced with a black Ortofon logo on the front. The image shown is for illustrative purposes only.
