Ortofon 520 MkII Stylus Replacement
Replacement stylus, recommended for the following cartridge models:
520 Mkll, 520, 520 P
Please note, all cartridges within the 500 range have the same stylus-fitting, so they can all fit the Stylus 510, Stylus 520, Stylus 530 and Stylus 540. The Ortofon Alpha, as found on some Pro-Ject turntables, can be replaced by one of the 500 range as well.
Technical Data:
| Frequency Range: | 20 - 23,000Hz |
| Frequency Response 20 - 20,000Hz: | +2 / -3dB |
| Tracking Ability at 315Hz: | Typically 70µm |
| Compliance, Dynamic, Lateral: | 25µm |
| Stylus Type: | Nude Elliptical |
| Stylus Tip Radius r / R: | 8 / 18µm |
| Equivalent Stylus Tip Mass: | 0.3mg |
| Tracking Force Range: | 1.25 - 1.75g (12.5 - 17.5mN) |
| Recommended Tracking Force: | 1.5g (15mN) |
| Tracking Angle: | 20º |
| Stylus Colour: | Black |

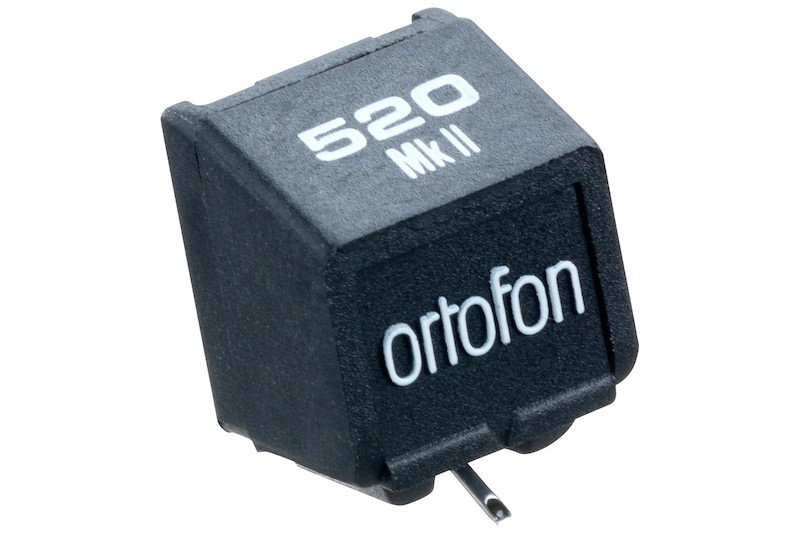

In some production runs, the Ortofon 520 stylus has been produced with a black Ortofon logo on the front. The image shown is for illustrative purposes only.
