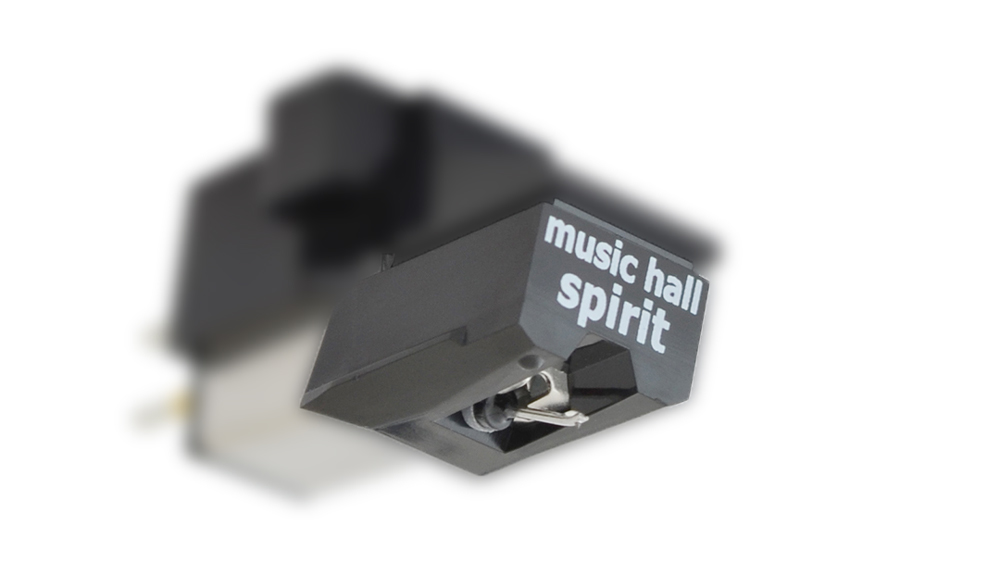

Music Hall Spirit Replacement Stylus
Replacement Stylus ONLY for the Music Hall Spirit MM Cartridge
--------------------------------------------------------------------------------------------
.jpg)
OUR BEST BUDGET CARTRIDGE!
Developed and built specially for Music Hall by Audio Technica, this little gem incorporates a low-mass cantilever and an elliptical stylus tip that gets down deep into the grooves (pun intended) and sets the music free.
The Spirit is as easy to use as it is compatible, performing admirably with a wide range of tonearms and turntables. Built for longevity, it features a user-replaceable stylus.
technical data
| frequency response | 20Hz – 20kHz ± 3dB |
| channel balance | 2.5dB @ 1kHz |
| channel separation | >20dB @ 1kHz |
| output | 3.5mV ± 2dB, 1kHz @ 5cm/sec |
| vertical tracking angle | 20 degrees |
| stylus shape | elliptical 0.4 x 0.7 mil |
| stylus type | replaceable |
| cantilever | alloy tube |
| load impedance | 47,000 Ohm |
| stylus construction | bonded round shank |
| cartridge weight | 5.7g |
| fixing center | 0.5” (12.7mm) |
| playing weight | 1.5 – 2.5g (2.0g nom.) |
