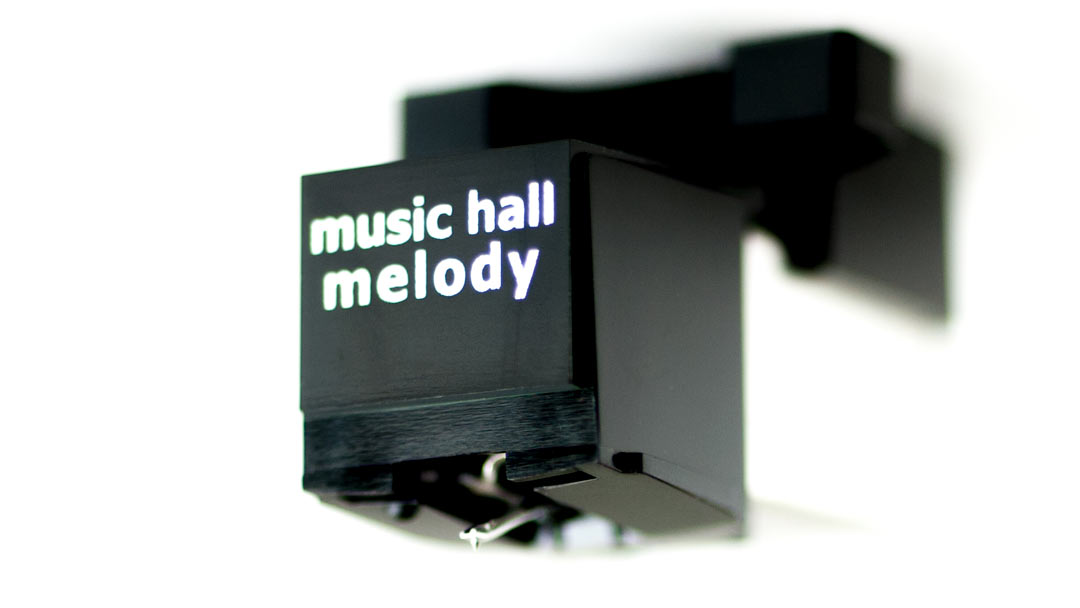

Music Hall Melody Replacement Stylus
Replacement stylus ONLY for the Music Hall Melody cartridge
------------------------------------------------------------------------
A SOLID UPGRADE OVER ENTRY-LEVEL CARTRIDGES…
Developed and built specially for Music Hall by Audio Technica, the Melody offers exceptional performance at an affordable price.
The cartridge incorporates a low-mass aluminum cantilever which responds more quickly and accurately to undulations in the record groove thus producing a clean clear distortion-free sound.
The Melody is easy to use and is compatible with a wide range of tonearms and turntables. Built for longevity, it features a user-replaceable stylus.
technical data
| frequency response | 20Hz – 20kHz ± 3dB |
| channel balance | 1.5dB @ 1kHz |
| channel separation | >20dB @ 1kHz |
| output | 3.5mV ± 2dB, 1kHz @ 5cm/sec |
| vertical tracking angle | 20 degrees |
| stylus shape | conical 0.6 mil |
| stylus type | replaceable |
| cantilever | aluminum pipe |
| load impedance | 47,000 Ohm |
| stylus construction | bonded round shank |
| cartridge weight | 5.0g |
| fixing center | 0.5” (12.7mm) |
| playing weight | 1.5 – 2.5g (2.0g nom.) |
