Weiss INT202 Firewire Interface

Weiss INT202 Firewire Interface

UNIDIRECTIONAL OR BIDIRECTIONAL FIREWIRE INTERFACES
Play back audio files on your Firewire-equipped computer with the full quality of your DAC. The INT202 and INT203 both serve as bridges from your computer to your DAC.

In addition, the bidirectional INT203 can serve as an input to the computer, for example to connect an A/D converter and use it for digitizing vinyl records.

THE INT202

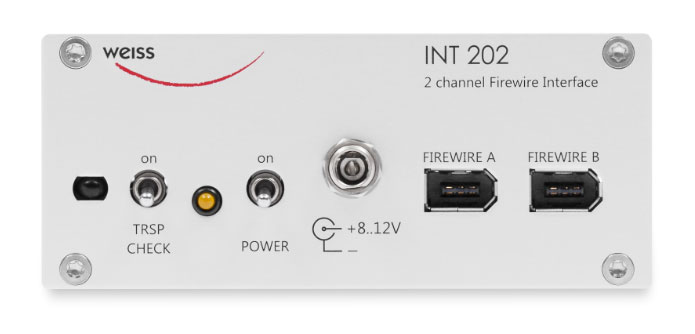

The INT202 is unidirectional stereo Firewire to AES/EBU interface with infrared remote control for volume and absolute polarity.

It supports dual wire data transfer in 176.4/192 kHz mode for older D/A Converters. The bit transparency of the player software on the computer can be checked with the INT202.

THE INT203
The INT203 is for bidirectional interfacing between AES/EBU and Firewire and also includes an infrared remote control for volume and absolute polarity.

The bit transparency of the player software on the computer can be checked. The INT203 can serve as an input to the computer, e.g. to connect an A/D Converter for transferring vinyl records or other analog media.

SYNCHRONIZATION
The sampling frequency is generated with an internal generator in the INT202/INT203. This ensures a low-jitter transfer between the computer and D/A converter. In addition, the INT203 can be switched to external synchronization via its XLR or RCA AES/EBU inputs. Both units work at all standard sampling frequencies between 44.1 and 192 kHz.

Both devices support bit transparency checking. In addition, there is a digital level control with a proper dithering algorithm applied.

DIGITAL INPUTS
Two Firewire 400 connectors (also serve as output with the INT203).
RCA connector (INT203 only).
XLR connector (INT203 only).

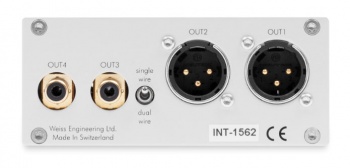

DIGITAL OUTPUTS
Two RCA connectors (INT203 only one).
Two XLR connectors (INT203 only one).
Word-length up to 24 bits.

SYNCHRONIZATION
Sampling frequency is generated internally.
INT203: Synchronization can be supplied via the RCA or XLR inputs.
Supported sampling frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz.

DSP ALGORITHMS
Volume control.
Absolute polarity control.
Bit transparency checking.

DIMENSIONS
INT202 and INT203
Depth: 10.5 cm / 4.13 inches
Width: 10.5 cm / 4.13 inches
Height: 4.4 cm / 1.73 inches
Height with feet: 4.7 cm / 1.85 inches

IR Remote Control (optional purchase)
Depth: 2.1 cm / 0.83 inches
Width: 4.5 cm / 1.78 inches
Height: 16.6 cm / 6.53 inches
