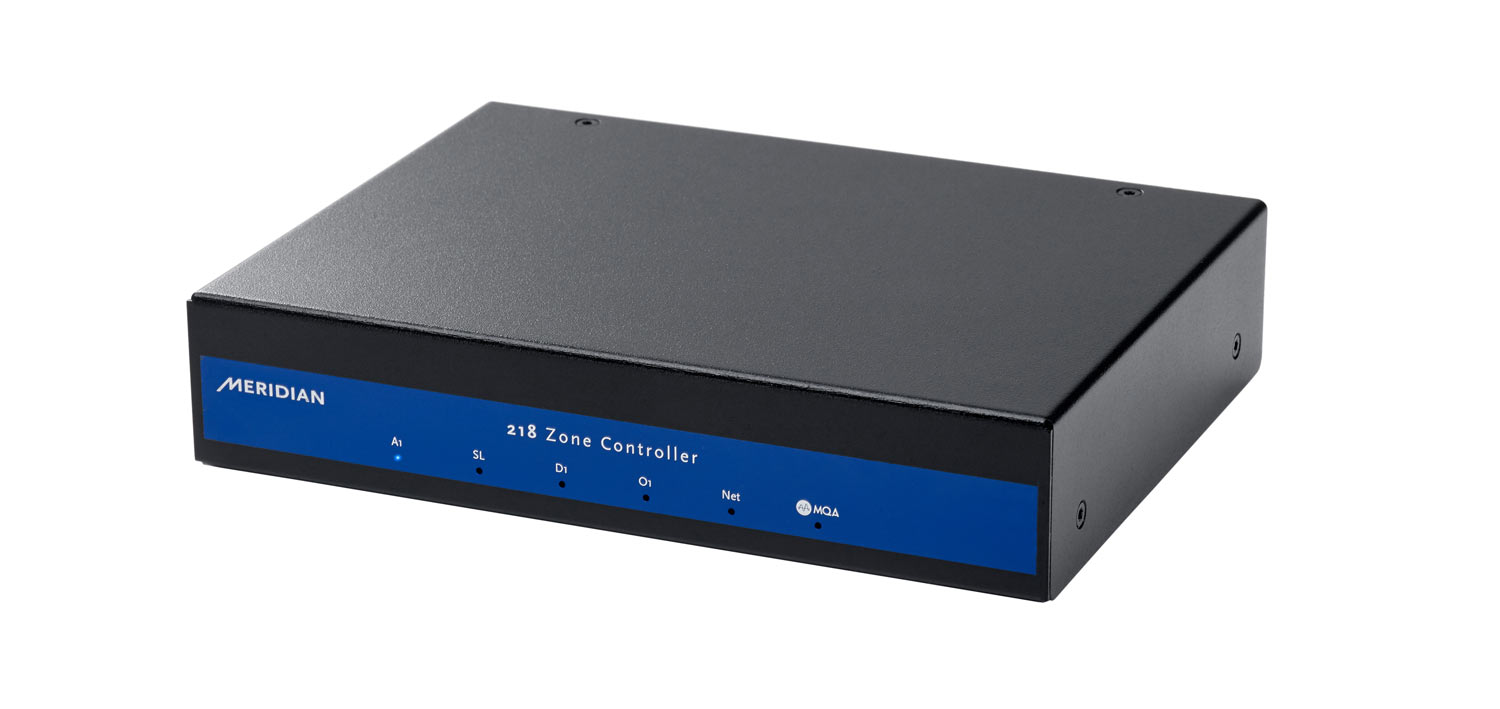

Meridian 218 Zone Controller
Zoom  Zoom
 Meridian 218 Zone ControllerMeridian 218 Zone Controller

Meridian 218 Zone Controller

£800.00
£666.67 Exc. VAT |


|

Meridian 218 Zone Controller

Designed for use in in-room or in-rack, the 218 Zone Controller contains the functionality needed to create a Hi-Res audio zone. Accommodating both local and distributed audio, whether analogue or digital, the Meridian 218 is also an endpoint for our award-winning Sooloos music management platform.

With both digital and analogue inputs and outputs, the MQA–enabled Meridian 218 is suitable for a wide range of distributed audio applications from single zone to multi-zone use. Control features including IP and IR, allow this versatile 1U tall product to be easily partnered with any of Meridian’s power amplifiers or DSP loudspeakers.


Specifications

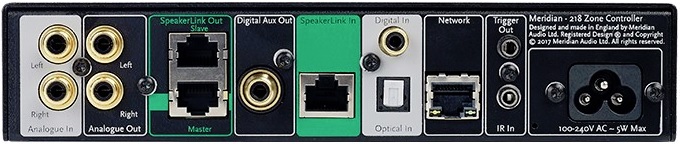

Audio Inputs
  • One 2-channel digital coaxial S/PDIF input. 44.1kHz to 192kHz sampling and up to 24-bit
  • One 2-channel Meridian Speakerlink input. 44.1kHz to 192kHz sampling and up to 24-bit
  • One 2-channel digital optical TOSLINK input. 44.1kHz to 96kHz sampling and up to 24-bit
  • One 2-channel analogue input
  • One network input (Ethernet) for connection to a Meridian Sooloos System, Meridian’s music management platform.

    Audio Outputs
  • 2 Speakerlink digital outputs
  • Single RCA digital output
  • 2-Channel unbalanced analogue output (192kHz DAC)

    Control Signals
  • IP Control: Network socket for use with Meridian IP Control iPad App, other Sooloos control interface and third party control systems
  • IP Control
  • IR on 3.5mm jack

    Display
  • LEDs to indicate source selection and MQA status

    DIMENSIONS
  • HEIGHT: 42mm [1.65in]
  • WIDTH: 204mm [8.03in]
  • DEPTH: 150mm [5.91in]
  • WEIGHT: Standalone: 0.56Kg [1.2lbs]

    Construction
  • 1U tall rack kit available with space for two units
  • VESA mount available
  • All-aluminium chassis

    Power
  • Advanced linear power supply: 100V ac 50/60 Hz 220-240V ac 50/60Hz
