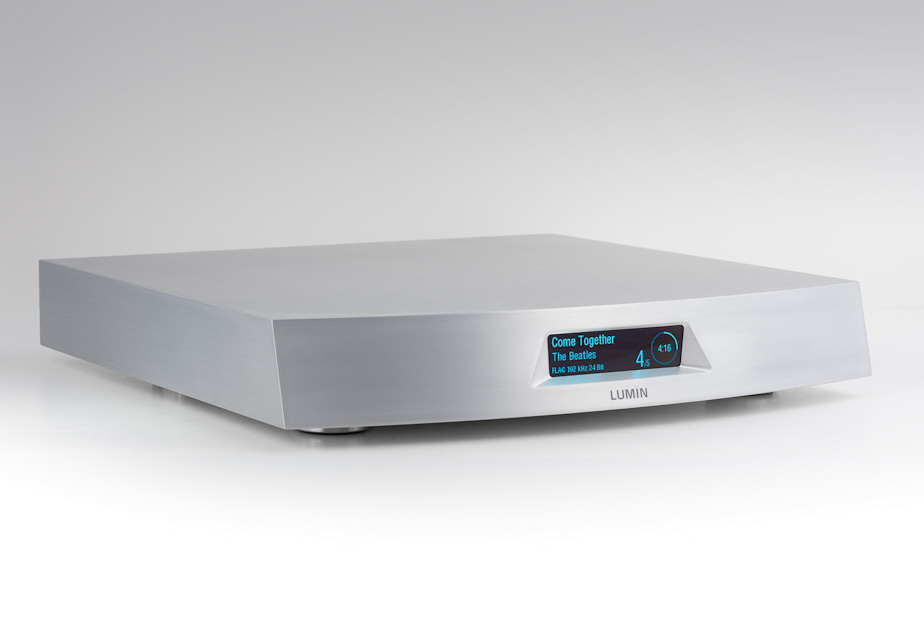

Lumin A1 Audiophile Network Music Player

Lumin A1 Audiophile Network Audio Player

Introducing LUMIN. The World's first Universal Audiophile Network Music Player!

"The Pixel Magic Lumin network player is the most polished network player I've ever used. The sound quality is exquisitely analog much like spinning a vinyl album. Lush and vivid are terms that describe the sound of music streamed through the Lumin player. What makes this player so polished is the terrific design and implementation of its software. This is a DLNA renderer / DAC and that's all the device is designed to accomplish with its embedded Linux operating system. Playback of high resolution PCM and DSD files is a breeze. Gapless playback that eludes so many players in this category works flawlessly with the Lumin. The iPad control point application is intuitive and simply works every time. Lumin is the network player by which all others should be judged."

Please click to read the latest Hi-Fi + Review

Universal

From mainstream formats FLAC and Apple Lossless (ALAC) through native DSD (SACD files), up to the highest resolution 384kHz, 32bit Studio Masters.

Flexible

Supporting Gapless Playback and On-device Playlists for a superior playback experience and UPnP AV for maximum compatibility.

No Compromise  The highest-grade matching components, circuit design and spacious layout includes true balanced audio outputs and an external toroidal power supply.

MORE GREAT REVIEWS AudioShark AudioStream HiFi+

Specification

• Streaming Protocol:

  • UPnP AV protocol with audio streaming extension

  • Gapless Playback

  • On-device Playlist

• Supported Audio File Formats:

  • DSD Lossless:

    • DSF (DSD), DIFF (DSD), DoP (DSD)

  • PCM Lossless:

    • FLAC, Apple Lossless (ALAC), WAV, AIFF

  • Compressed (lossy) Audio:

    • MP3, AAC (in M4A container)

• Supported Audio Sample Rates, Bit Depths, Number of Channels:

  • PCM, 44.1khz-384kHz, 16-32bit, Stereo

  • DSD, 2.8MHz, 1bit, Stereo

• Supported Control Devices:

  • All models of Apple iPad (iPad 2 or later recommended). iOS 5.0 or later required

• Input:

  • Ethernet Network 100Base-T

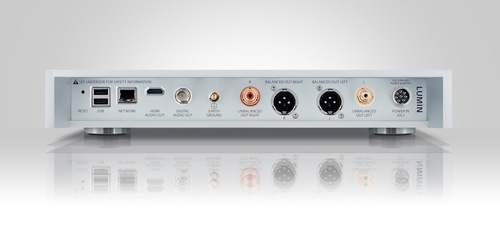

• Outputs:

  • Analogue Audio:

    • XLR balanced, 4Vrms, pin 2 Hot

    • RCA unblanced, 2Vrms

  • Digital Audio:

    • BNC SPDIF:

      • PCM 44.1khz-192kHz, 16-24bit

    • HDMI:

      • PCM 44.1khz-192kHz, 16-24bit

      • DSD 2.8MHz, 1bit

• Analogue Output Stage:

  • Wolfson WM8741 DAC chips, 1 per channel

  • Fully balanced layout with discrete components

  • Output connectors coupled with LUNDAHL LL7401 output transformer

• Physical:

  • Lumin (solid aluminum chassis):

    • 350mm (W), 345mm (D), 60mm (H), 8kg

  • Dual-toroidal PSU:

    • 100mm (W), 295mm (D), 55mm (H), 2kg

• Power Consumption:

  • • Operation: 20W

    • Standby: 15W

• Others:

  • Firmware Upgradable for further features and enhancements

This product is available with 0% finance over 12 months
