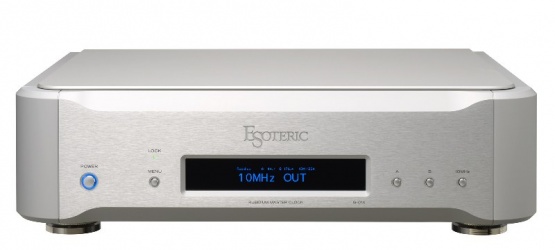

The CG-10M is a master clock generator that delivers an extremely accurate clock signal to allow Digital-to-analogueue converters (DACs) to perform at their ultimate best.
It is a well-known fact among audiophiles that the clock signal is the foundation for all digital signal processing. For example, digital signals, such as PCM, are divided extremely finely into tens of thousands of parts per second along the time axis. If that fundamental time axis fluctuates during the process of D/A conversion it is much more difficult to render an analogue audio waveform that is identical to the original. This is all the more true with DSD audio signals that function at MHz speeds in the time axis. For this reason, having as accurate a clock signal as possible is very important for the re-creation of digital audio signals, particularly HiRes files that use ultra high sampling-rates, such as DSD 22.5MHz or PCM 768kHz.
At the heart of the master clock generator is a crystal oscillator, encased in in a temperature- controlled box, the "oven", to maintain the best and stable performance under an ideal temperature condition for crystal oscillation. This oven-controlled crystal oscillator (OCXO, for short) generates an extremely accurate 10MHz clock signal which is within ±3 ppb of frequency temperature characteristics and within ±0.1 ppm of frequency precision. The elegant analogue gauge on the front panel gives a visual indication of the status of the internal crystal oscillator at all times.
The CG-10M is a master clock generator that brings out the best performance from USB DACs, network players, CD players and any other kind of device that supports a 10MHz clock input.
