Matrix Audio Element I Streamer

£1,099.95

£916.63 Exc. VAT |

Description
Specifications
Customer Reviews (0)

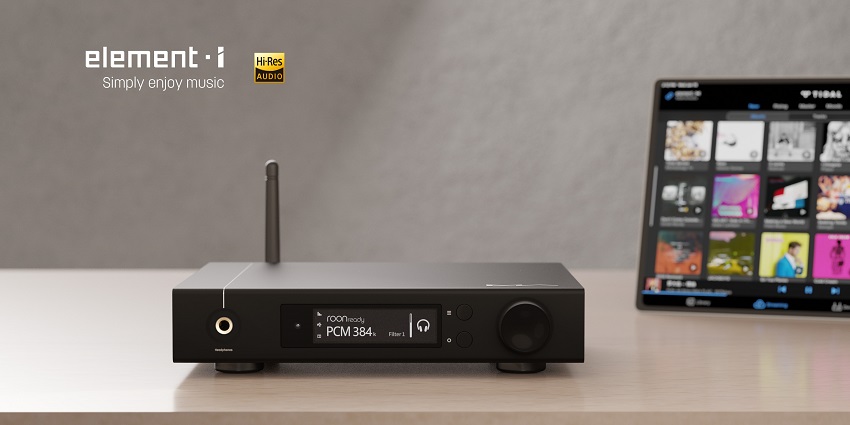

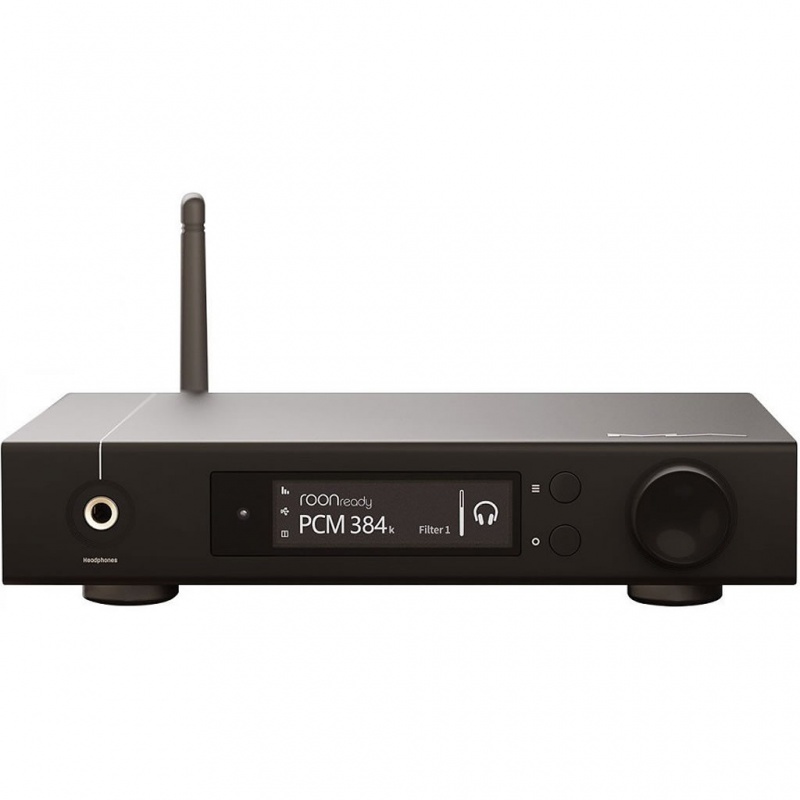

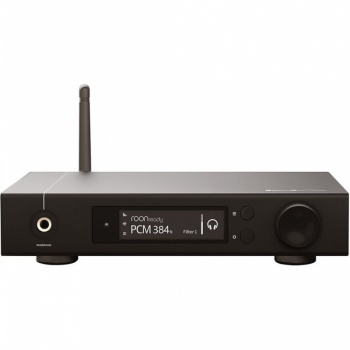

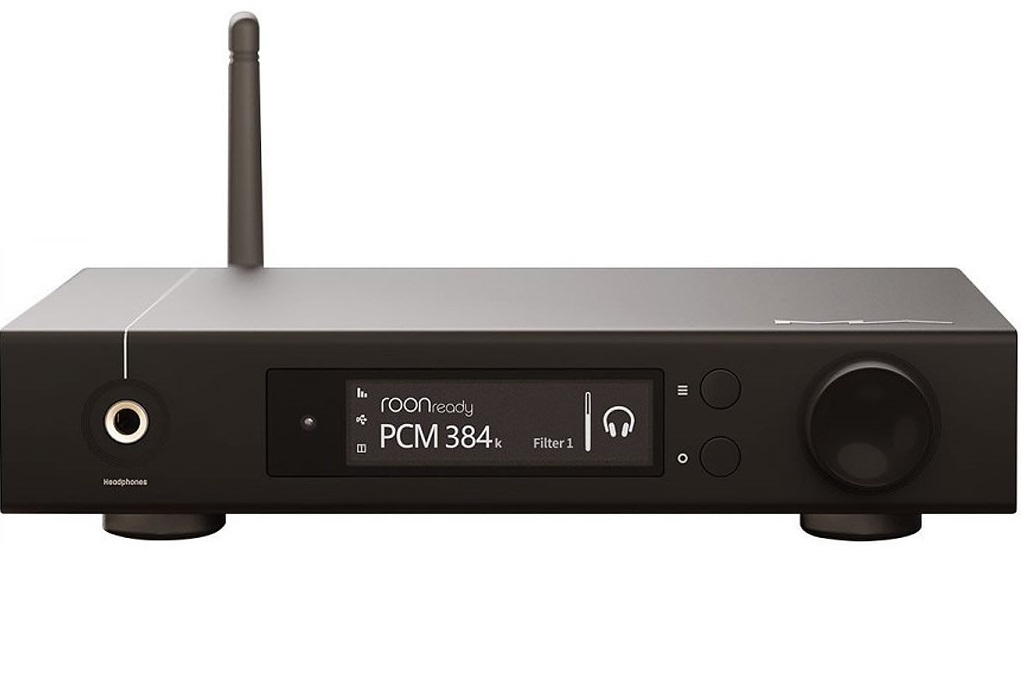

Matrix Audio Element I Streamer

Versatile and Beautiful

With the help of MA player, no matter at the desk, beside your TV, in the bedroom or dining room, element i is always waiting for your playback commands. Get rid of computers, as long as you are on the same Wi-Fi or wired network, use Airplay, DLNA or playback your collected digital audio. This is element series, seeking harmony points in the two dimensions of “listening” and “looking”, making it simple and strong.

Hi-Res Streaming Audio Already Here

MA Remote app now both available for Android and iOS natively. Browse and play your own high-quality digital audio, or enjoy hi-res streaming audio, whatever you want. MA Remote is now integrated with TIDAL service, Qobuz is also coming. In addition, it’s also ROON Ready. Find element audio device and control from ROON Remote, making playback faster.

Compatible and Powerful

The Element i has a discrete component headphone amp with up to 1300 mw of power, it can easily drive various high-resistance full-sized headphones and high-sensitive IEMs. The excellent dynamic performance and inaudible background noise, make you concentrate to the music. The device can be controlled by IR remote and MA Remote app, you can easily control the volume and input channels even if connecting to active speakers or power amplifiers.

Suitable is the Best

element i aim to cost-effective, but the hardware is still powerful enough: the Freescale i.MX6 series dual-core ARM processor is used as the master core of the MA player, the D/A converting module is using the ES9028PRO 8-channel D/A chip from ESS and XU208 audio interface from XMOS. As an entry model, we keep the IIS LVDS port, which allow element i to connect to USB interface with femtosecond clocks.

Internal or External Power Supply

element i is powered by an external power supply. Audiophiles can upgrade their external linear power supply according to their requirements and explore the potential of element i. Even so, the power conditioning section in element i is never compromised. Each circuit unit still uses multi-channel low-ripple LDO independently, as the basis of good sound performance.

Technical

Digital Input

COAXIAL & OPTICAL:
PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

DSD 2.8MHz (DoP)

IIS LVDS:
PCM 16-32Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz,

352.8kHz, 384kHz, 705.6kHz, 768kHz
DSD 2.8MHz, 5.6MHz, 11.2MHz (DoP)
DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz, 45MHz (Native)

USB Audio:
PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz,

352.8kHz, 384kHz
DSD 2.8MHz, 5.6MHz (DoP)
DSD 2.8MHz, 5.6MHz, 11.2MHz (Native)

Line Output

XLR:
SNR: >-127dB
THD+N: <0.00025%@1k，<0.00027%@20Hz-20kHz
Frequency Response: 20Hz-20kHz ±0.05 -3dB@150kHz
Channel Crosstalk: >-143dB
Amplitude: 4.0VRMS@0dB

RCA:
SNR: >-120dB
THD+N: <0.00040%@1k，<0.00045%@20Hz-20kHz
Frequency Response: 20Hz-20kHz ±0.05 -3dB@100kHz
Channel Crosstalk: >-114dB
Amplitude: 2.0VRMS@0dB

Headphone Output

Single Ended:
SNR: >-111dB@2VRMS
THD+N: <0.0006%@1VRMS
Frequency Response: 20Hz-20kHz ±0.1 -3dB@47kHz
Output Impedance: <0.6Ω
Output Power: 1320mW@33Ω，248mW@300Ω，124mW@600Ω，1%THD
Gain: +12dB

Network

LAN: 10BASE-T/100BASE-TX
WLAN: 2.4GHz, IEEE 802.11 a/b/g/n standard

MA player

Format Supported: MP3 , WMA , WAV , AIF, AIFC, AIFF, AAC, FLAC,

OGG, APE, ALAC, M4A, DSF, DFF
PCM Sampling Rate: PCM 16/24/32Bit 44.1kHz, 48kHz, 88.2kHz,

96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz
DSD Sampling Rate: DSD 2.8MHz, 5.6MHz, 11.2MHz

USB Storage Device

element i can use the devices which conform to the USB mass storage standard and supports FAT, FAT32, exFAT, and NTFS file formats, but is not guaranteed to be compatible with all storage devices or memory cards.
