Lumin P1 Audiophile Network Music Player

Main features

LUMIN P1 makes system integration easier than ever:

9 digital & analogue inputs

USB Digital Audio input & output support up to Native DSD512

Balanced & unbalanced analogue inputs

SPDIF & AES input support up to 192/24 with DoP

HDMI 2.0 inputs & 4K passthrough with ARC support

Specified for exceptional musical performance:

New processor delivers native DSD512 & PCM384 playback

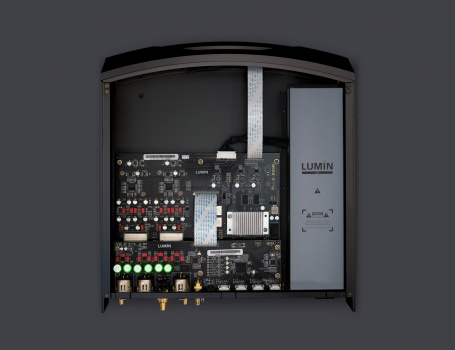

Dual Mono design throughout maximises channel separation

Dual ES9028PRO SABRE DACs in Mono mode

Femto Clock System with precision FPGA distribution

New integrated dual-toroidal linear power supply & all-in-one chassis

Fibre Network provides complete isolation from network digital noise

Leedh Processing lossless volume control

P1 Specification highlights

Network playback:
- Up to DSD512
- Up to 384 kHz, 16–32-bit, Stereo
- MQA Full Decoding
Upsampling rates & bit depths:
- DSD128 upsampling option for all files
- PCM 384kHz upsampling option for all files

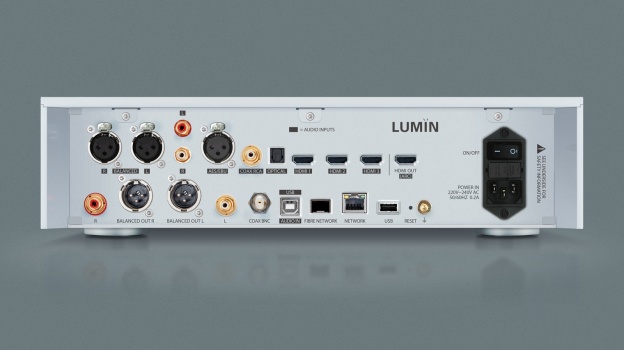

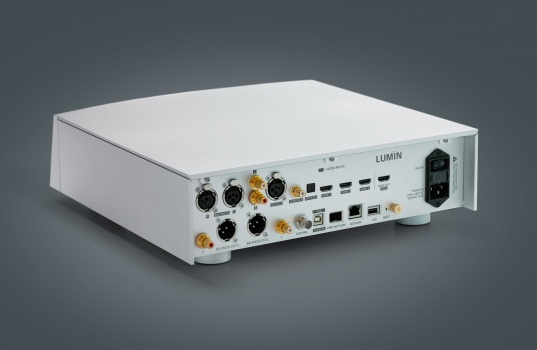

Digital Input:
- USB:
  - USB Audio Class 2 Compatible
  - WINDOWS 10 (Release 1703 or above) / Mac OSX or above
  - DoP 128 support
  - PCM 44.1–384 kHz, 16–32-bit, Stereo
- AES/OPTICAL/SPDIF:
  - PCM 44.1 kHz–192 kHz, 16–24-bit
  - DSD64 (DoP64, DSD over PCM)
- HDMI x3:
  - PCM 2.0 Audio support
  - 4K Video Passthrough
Digital Output:
- USB:
  - Native DSD512 support
  - PCM 44.1–384 kHz, 16–32-bit, Stereo
- BNC SPDIF:
  - PCM 44.1 kHz–192 kHz, 16–24-bit
  - DSD64 (DoP64, DSD over PCM)
- HDMI x1:(HDMI Passthrough and ARC support)
  - PCM 2.0 Audio support
  - 4K Video Passthrough
  - ARC (Audio Return Channel) support
Analogue Input:
- RCA Unbalanced x1
- XLR Balanced x1
Analog Output:
- Dual ESS SABRE32 ES9028Pro DAC chips
- Fully balanced layout with high-quality components
- Output connectors coupled with dual LUNDAHL LL7401 output transformers
- Femto Clock System with precision FPGA distribution
Optical Network:
- Industry-standard SFP
- 1000Base-T Gigabit Ethernet
- Adapter may be needed for your particular switch/cables
- Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)
Power Supply:
- Internal dual-toroidal
- Separate digital & analogue circuitry
- Low-noise linear regulator

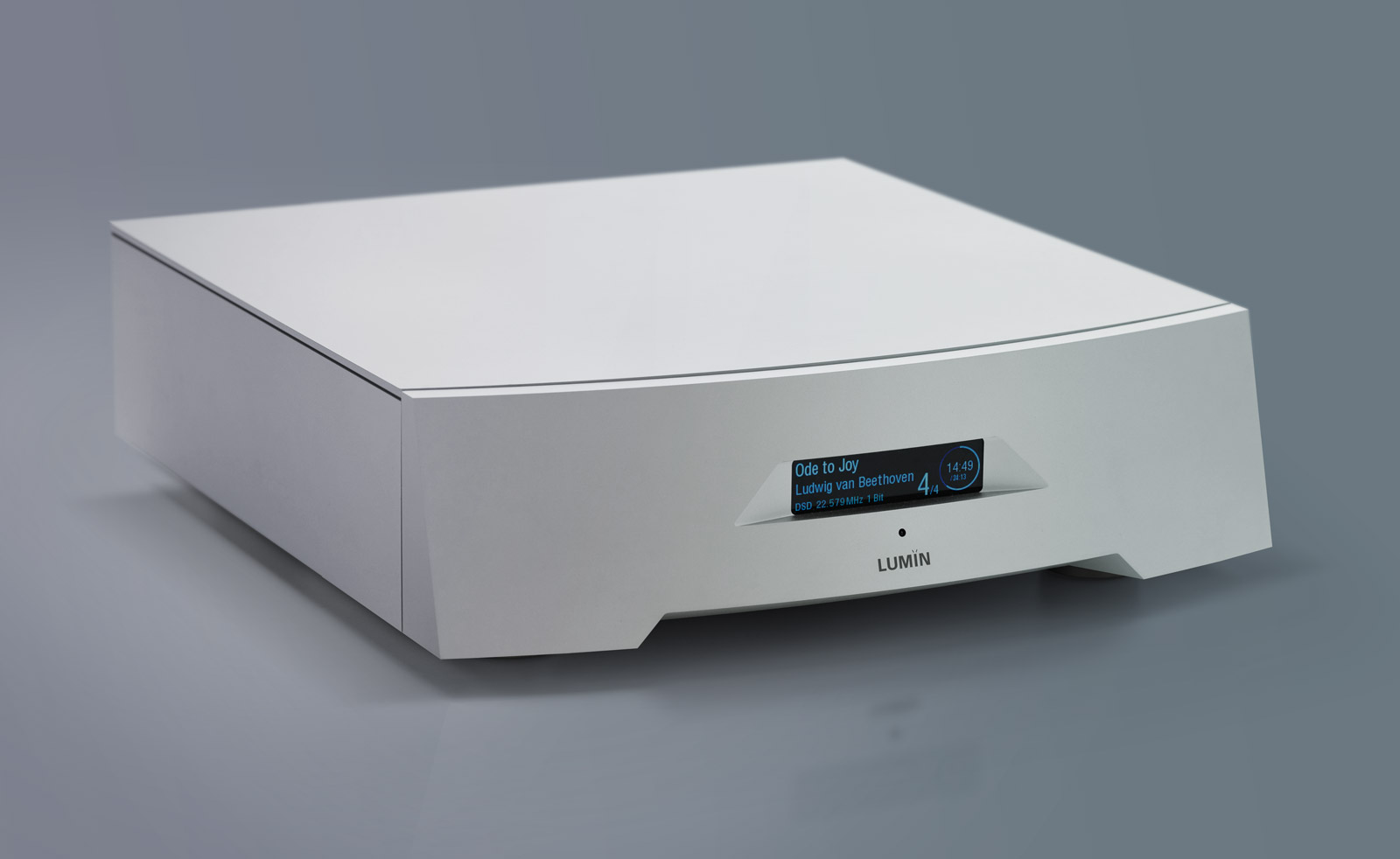

Physical:
- Finish:
  - Black anodised aluminium
  - Raw aluminium
  Lumin (solid aluminium chassis):
  - 350mm (W), 380mm (D), 107mm (H), 12kg
