Van Den Hul DIY Screw-On Spades (Set Of 4)

VDH's DIY Screw-On Speaker Connector is a high quality solderless, screw-on style, loudspeaker cable termination system suited for multi-strand loudspeaker cable and wire types down to AWG 12 (i.e. up to 3 mm total metal diameter)^*.

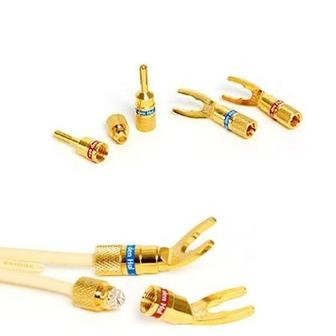

The DIY Screw-On Speaker Connectors are available in both angled spade and banana tip version and are fit with red and blue “van den Hul” marked colour coding rings for easy polarity identification.
The screw-on base’s high pressure clamp function creates a low loss electrical connection to all cable strands and ensures maximum signal transfer. All parts furthermore are heavy 24 carat gold plated so corrosion is almost impossible and the contact quality is maintained over a long period of use.

In short, these are versatile and easily mountable DIY Screw-On Speaker Connector provides reliable and durable high quality terminations to your amplifier and loudspeaker binding posts.

Features and specifications

• Solderless, screw-on style enables easy and fast mounting
• Heavy 24 carat gold plated
• Reliable and durable high pressure electrical clamp connection
• Easily re-useable/remountable when changing loudspeaker cables
• Available in angled spade and banana tip version
• Fit with red/blue colour coded polarity identification rings
• Accepts up to 3 mm total metal diameter (i.e. down to AWG 12) stranded conductors and up to 6.5 mm cable insulation diameter
• Banana version: Standard 4.0 mm pin diameter
• Angled spade version: Spade fits studs from 6.0 mm up to 8.5 mm diameter
• The spade and banana terminals are WBT binding post fitting
• Please note: Only suitable for multi-strand cables

Mounting

To mount these connectors, each 14 mm bare stripped multi-strand speaker cable wire end is simply inserted through the screw-on base and the strands are circumferentially folded around a pressure ring. The screw-on base is then firmly tightened, ensuring a reliable electrical connection.

For a long-lasting optimal contact we advise to apply our special contact fluid The SOLUTION on the cable strands before mounting the spade or banana part.

Available: packed per 4 angled spades or 4 bananas.
