WBT-0610 Nextgen Banana Plugs
Zoom  Zoom
 WBT-0610 Nextgen Banana PlugsWBT-0610 Nextgen Banana Plugs

WBT-0610 Nextgen Banana Plugs

  (1 Review)
£64.00
£53.33 Exc. VAT |  |





WBT-0610 Nextgen Banana Plugs

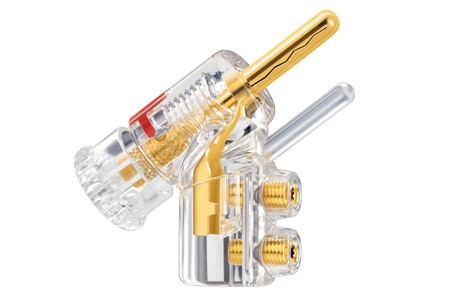

Delicately formed from pure copper - the signal line for the new nextgen™ banana plug WBT-0610 Cu. Directly gold plated in a nickel-free finish to prevent oxidation. This ensures high conductivity and no magnetic interferences. The contact pin is shaped so that its three segments expand as the spindle is twisted in, so that it can be secured in every terminal type. The resulting constantly high contact pressure guarantees permanently low transition resistances.

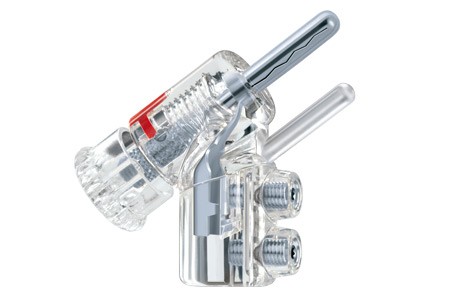

Delicately formed from fine silver - the signal line for the new nextgen™ banana plug WBT-0610 Ag. Directly platinum plated in a nickel-free finish to prevent oxidation. This ensures high conductivity and no magnetic interferences. The contact pin is shaped so that its three segments expand as the spindle is twisted in, so that it can be secured in every terminal type. The resulting constantly high contact pressure guarantees permanently low transition resistances.


Like the WBT-0645, the nextgen™ banana connector also takes up less space when installed and allows equipment to be set up more compactly when space is at a premium. WBT-0610 is also cable-friendly: the angle leads your cable directly to the ground and cannot be damaged through kinking.


Despite the delicacy of the signal conductor, WBT-0610 is perfectly suited to the crimping technique. The two Torx screws are used to fix the crimped cable end and the second screw secures your cable to prevent strain. Thanks to the full insulation it is safe to touch and thus IEC compliant. The safety pin also prevents accidental insertion of the plug into a power socket. This makes the WBT-0610 compliant to CE to the full as well.

Specifications:
Cable cross section (max.): 10 mm² (7 AWG)
Termination technique: Crimping
Identification: red, white or black
Strain relief: Torx screw (T.6)
Recommended tool:
  • Torx T.6 wrench WBT-0488
    (supplied with each end consumer package)
  • Torque screw driver WBT-0481 Crimping pliers WBT-0403 s. also Crimping set WBT-0411


Average Rating (1 Review):
Write a Review and share your opinions!

Rating:
Very good banana plugs.
16 November 2022  |

I bought these to replace my existing set of banana plugs which are very similar looking & are still available on the web. These WBT-0610 plugs have far less metal in them & the metal is copper instead of brass. Are these WBT plugs worth four times more than my existing ones? I don't know!? However, removal of extraneous metal & using better quality metals means less weak links (signal degradation) in the signal path. P.S. I did not use WBT's crimp terminals (as they suggest in their instructions) on the bare wire ends, as I prefer to have the grub screws in direct contact with the bare wire.

Was this helpful to you?  Yes  /  No

This review has not been appraised.
