Pro-Ject Pre Box RS Digital Pre Amplifier Black -Open Box

Pro-Ject Pre Box RS Digital Pre Amplifier Black - Open Box.

Item unused. Opened to show finish.

The Pre Box RS Digital combines all the features of the DAC Box RS with selectable solid-state or tube output stages.

As in all of Pro-Ject’s top-class digital products, they use PCM1792 DAC chips from Texas Instruments, but a new feature in the Pre Box RS Digital is its dual chip mode to achieve ultimate fidelity. As a selectable feature a second DAC chip from Texas Instruments is on board, that can handle up to 32bit/384kHz.

Included on the Pre Box Digital RS is a headphone output with selectable impedances for perfect matching with your headphones.

The Pre Box Digital RS offers 3-dimensional sound-staging, perfect micro dynamics and ultimate resolution combined with flexibility to use a wide range of digital and 1 analogue sound sources.

Combined with the Pro-Ject CD Box RS the Pre Box RS Digital will give outstanding sound experience, because of a I²S connection provided via RJ45 that offers jitter-free disc playback.

Key Features:

• Switchable DAC chips: 2x PCM1792 or PCM5102

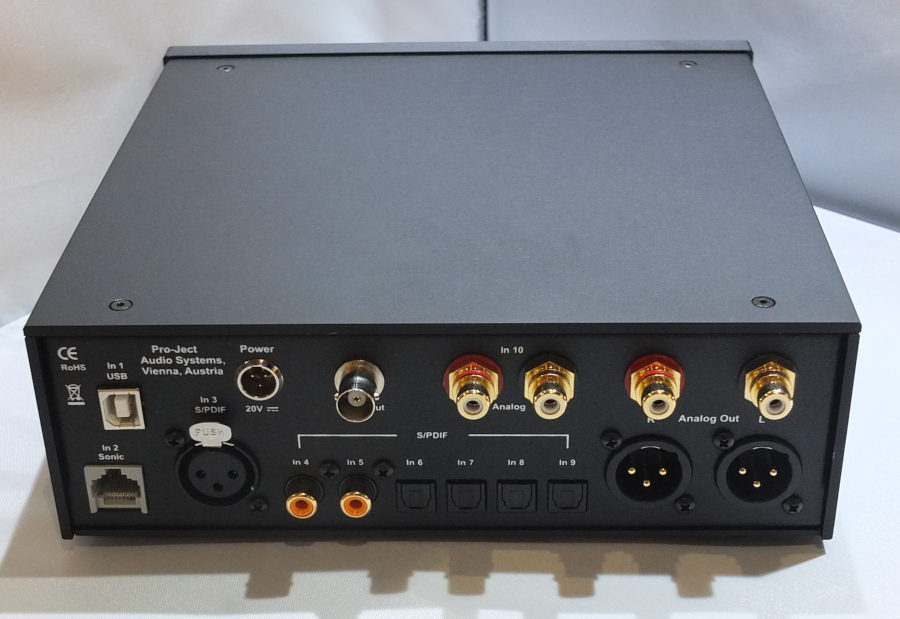

• 9 digital inputs: i²S, AES/EBU, Toslink, S/PDIF coax
• Analogue: Pre-out XLR/RCA/headphone, RCA input
• Headphone amp with adaptable output impedance
• Fully balanced double mono design
• Output stage switchable between 6922 tube & solid state
• Ultra-linear and ultra low noise
• Pure Class A circuitry
• Blue Alps volume control
• Standby-power consumption < 1W
• IR remote control included

Specifications:

• Tube assembly 2x ECC88 (6922)
• Frequency response 20 Hz - 50 kHz (+ 0dB/- 0,08 dB)
• Signal to noise ratio 95 dBA
• THD 0,06%
• Line-level inputs 3 pairs XLR & 3 pairs RCA/phono sockets
• Input impedance 150k Ohms
• Gain 18 dB (XLR)
• Outputs 1 Pre-Out (XLR), 1x Rec-Out (RCA)
• Outboard power supply 18 V/1 A DC, suitable for your country's mains supply
• Power consumption typical 700 mA / < 1 Watt standby
• Dimensions W x H x D 206 x 72 x 210 mm, with sockets
• Weight 1950 g without power supply
